Rear Crankshaft Main Bearing Seal: Service and Repair

REAR OIL SEAL REPLACEMENT [L5]

1. Remove the transaxle. (See Automatic Transaxle Removal/Installation - FS5A-EL (ATX).) (See Manual Transaxle Removal/Installation - G66M-R (MTX).)

2. Remove the drive plate (ATX) or the flywheel (MTX). (See Drive Plate Removal/Installation - FS5A-EL (ATX).) (See Service and Repair (MTX).)

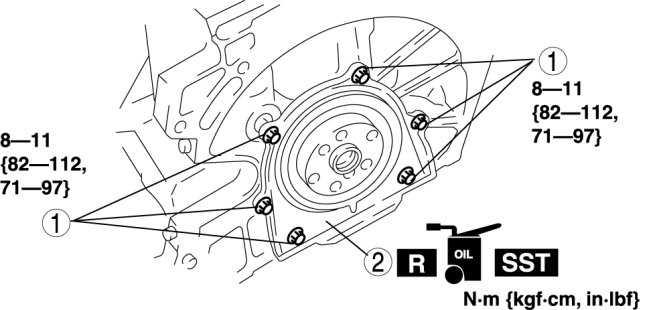

3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.










Rear Oil Seal Installation Note

CAUTION:
- Install the rear oil seal before the applied silicone sealant starts to harden.

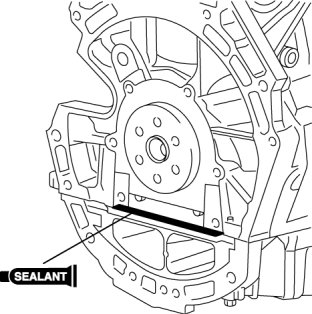

1. Apply silicone sealant to the mating faces as shown in the figure.






Thickness
- 2.2-3.2 mm {0.09-0.12 in}

2. Apply clean engine oil to the new oil seal lip.

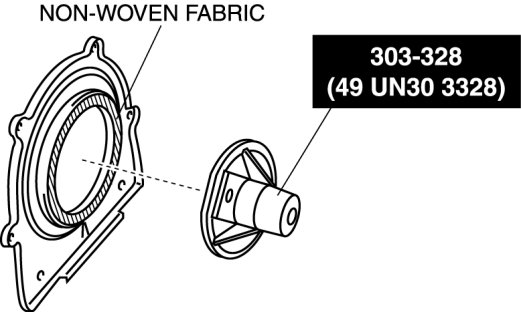

3. Install the SST to the non-woven fabric side of the rear oil seal.

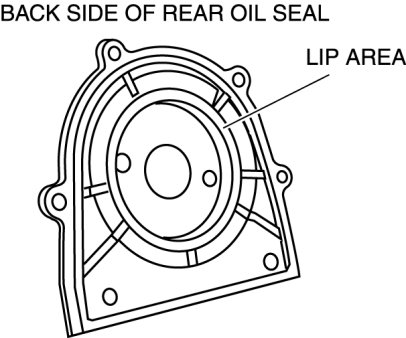

4. From the back side of the rear oil seal, verify that there is no damage or separation in the lip area of the rear oil seal.

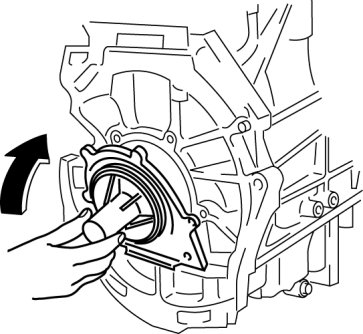

5. Install the rear oil seal to the engine as shown in the figure.

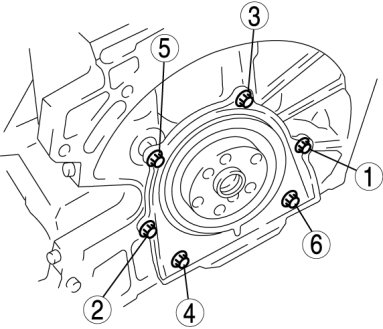

6. Tighten the rear oil seal bolts in the order as shown in the figure.






Tightening torque
- 8-11 Nm {82-112 kgf-cm, 71-97 in-lbf}
