Upper Panel Removal/Installation

UPPER PANEL REMOVAL/INSTALLATION

CAUTION:
- When removing clip A, press the connecting part of the center lower panel with a hand to prevent damage to clip A.

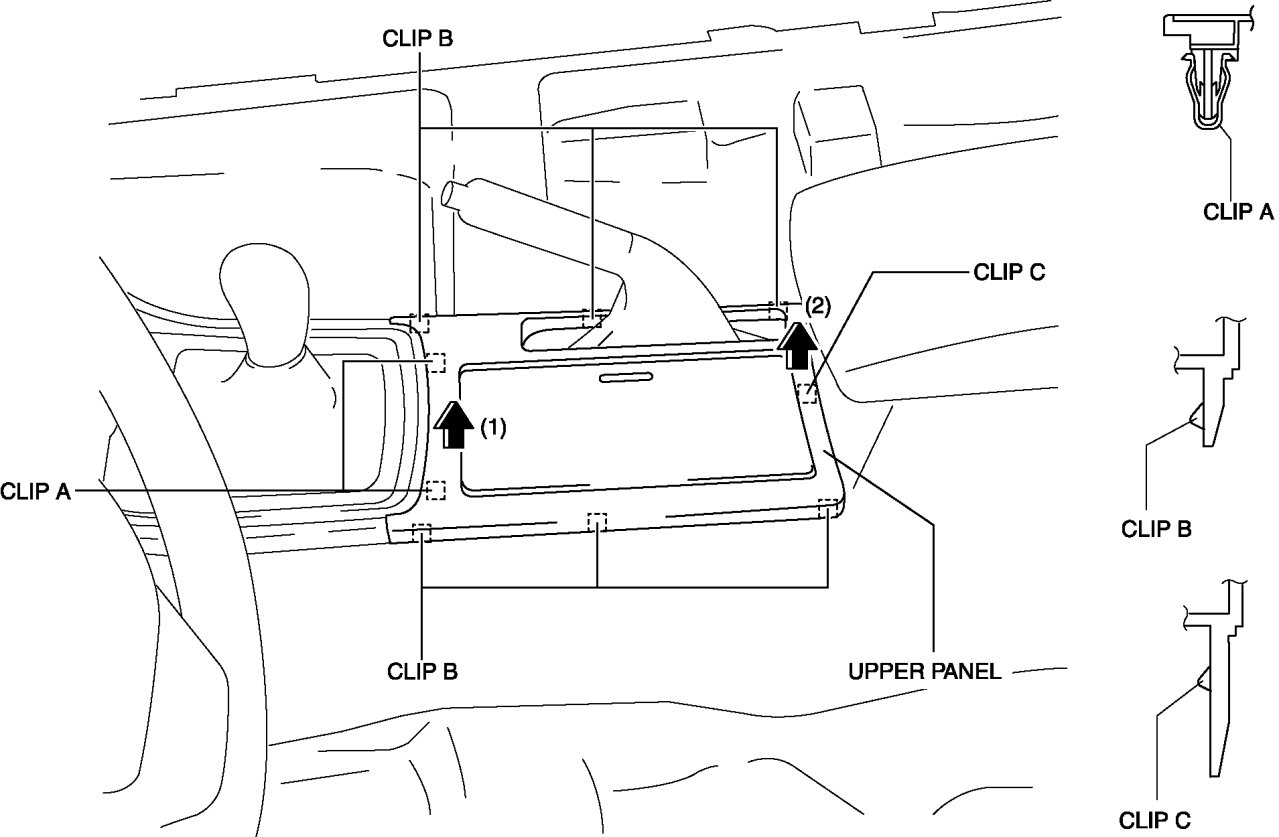

1. Pull the upper panel in the direction of the arrow in the order of (1) and (2), then remove it while detaching the clip A, B and C.

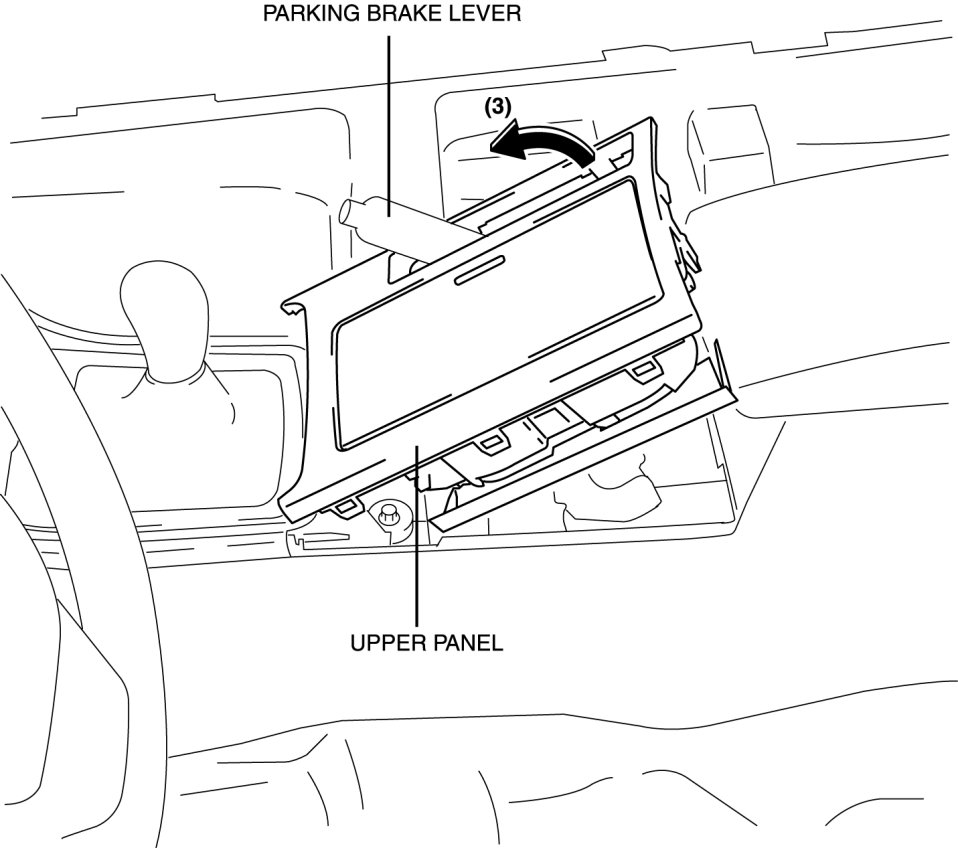

2. Move the upper panel in the direction of the arrow in the order of (3), and remove it.






3. Install in the reverse order of removal.
