No.1 BSM Off Indicator Light Does Not Illuminate When The Ignition Is Switched To On




2010 -
Mazda6 -
Body and Accessories

NO.1 BSM OFF INDICATOR LIGHT DOES NOT ILLUMINATE WHEN THE IGNITION IS SWITCHED TO ON [BLIND SPOT MONITORING (BSM)]

Description/Possible Cause:

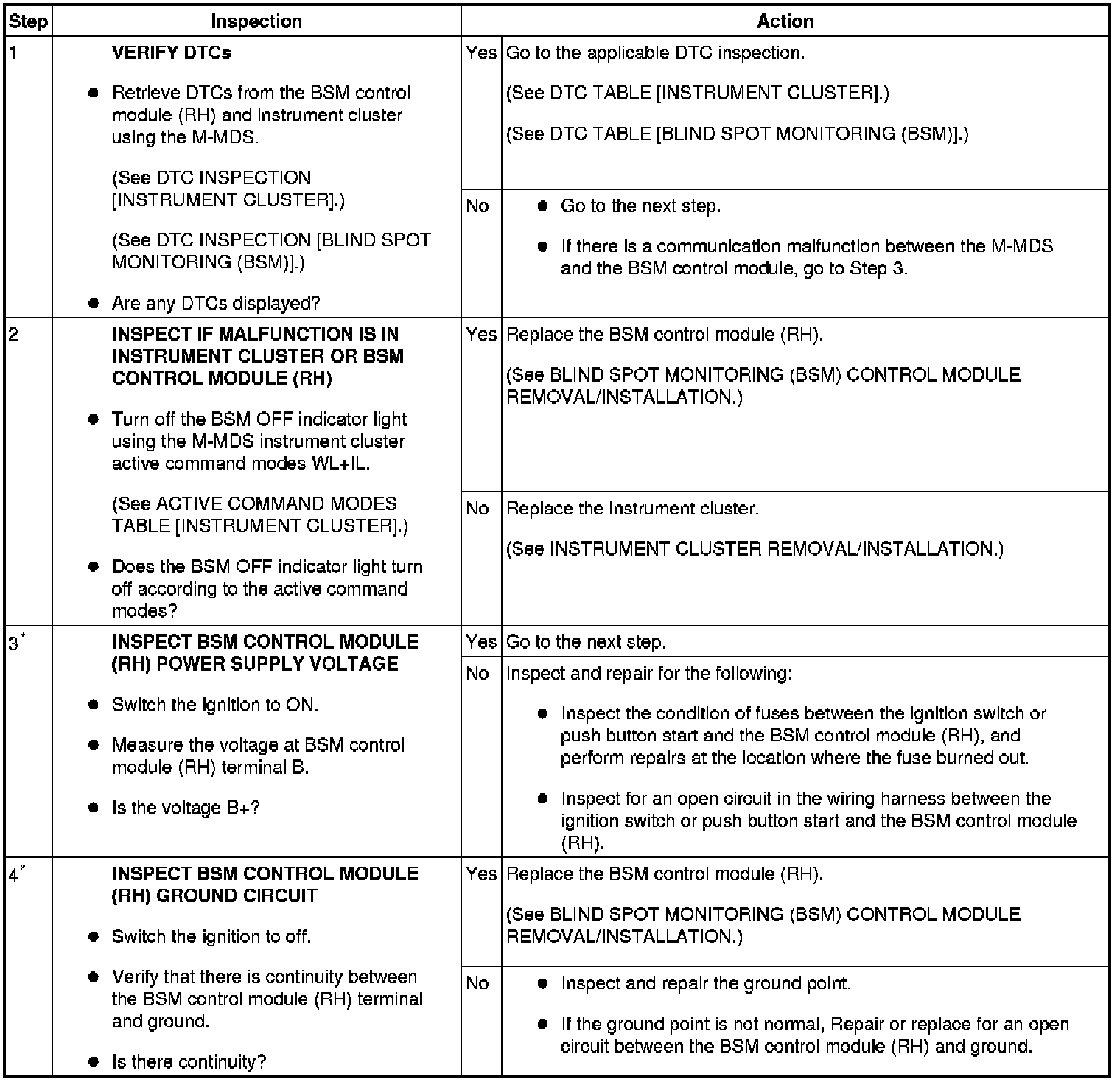

Diagnostic Procedure

Step 1-Step 4:
