P2096
P2096
DTC P2096:00 [L5]

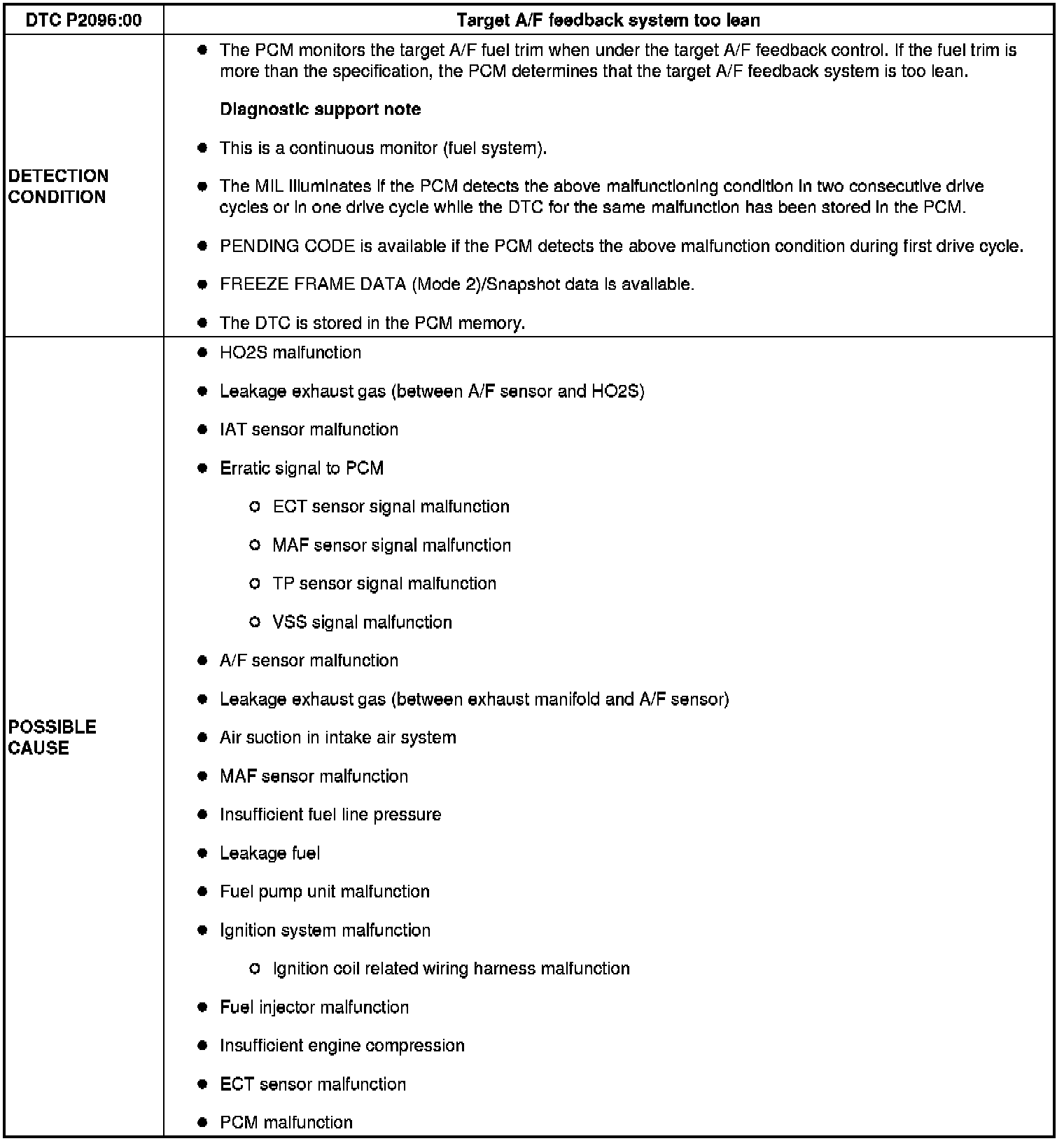

Detection Condition/Possible Cause:
Diagnostic procedure

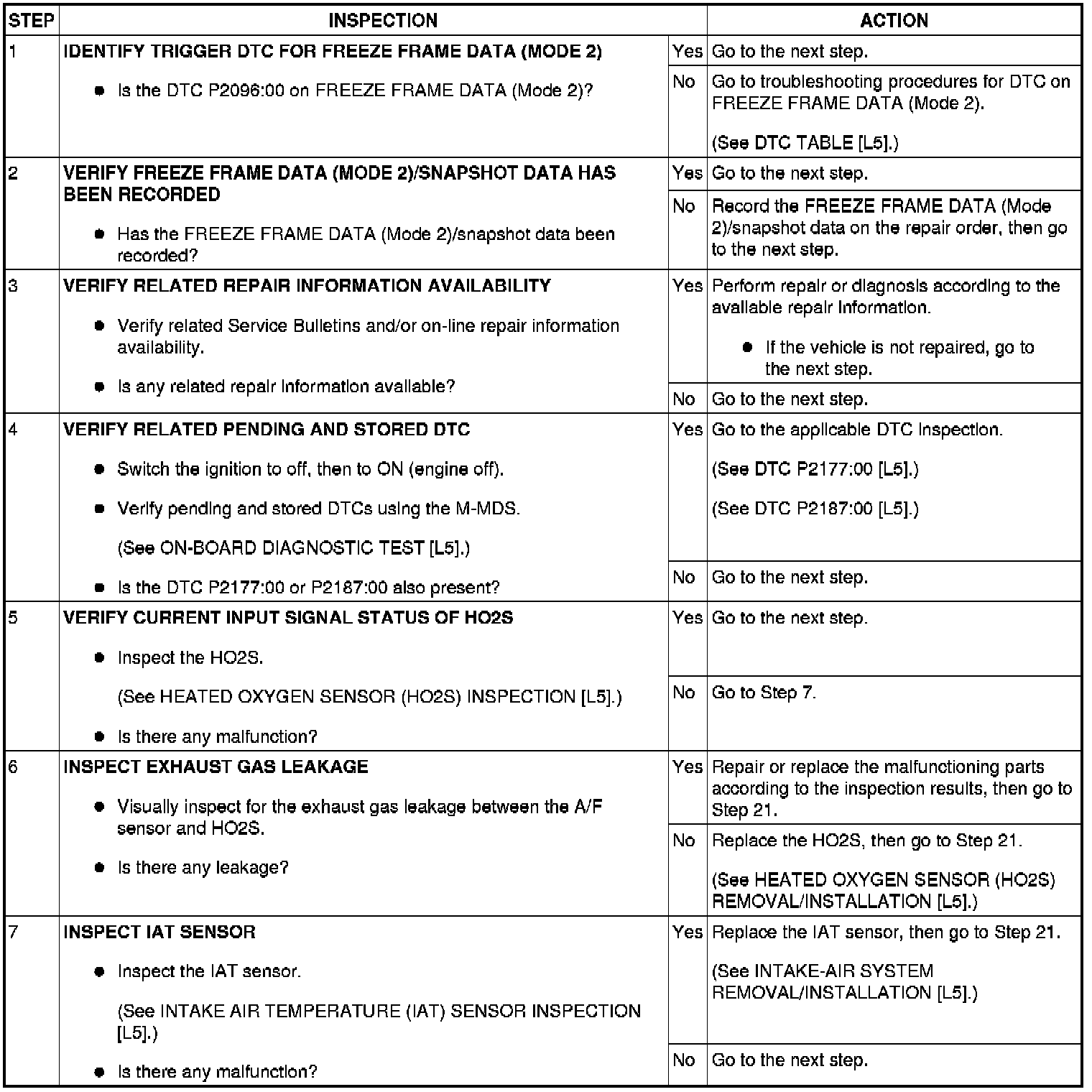

Step 1-Step 7:

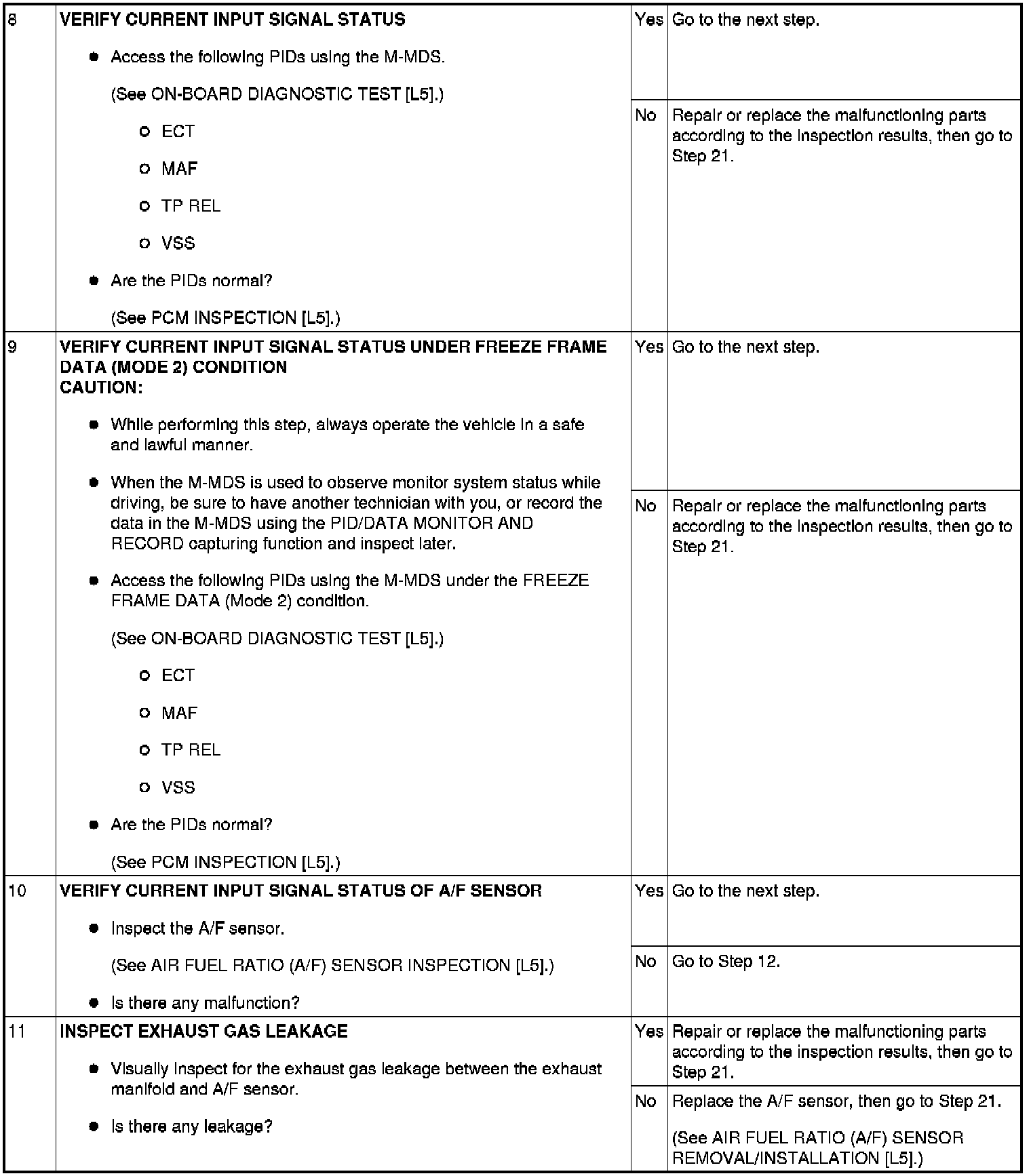

Step 8-Step 11:

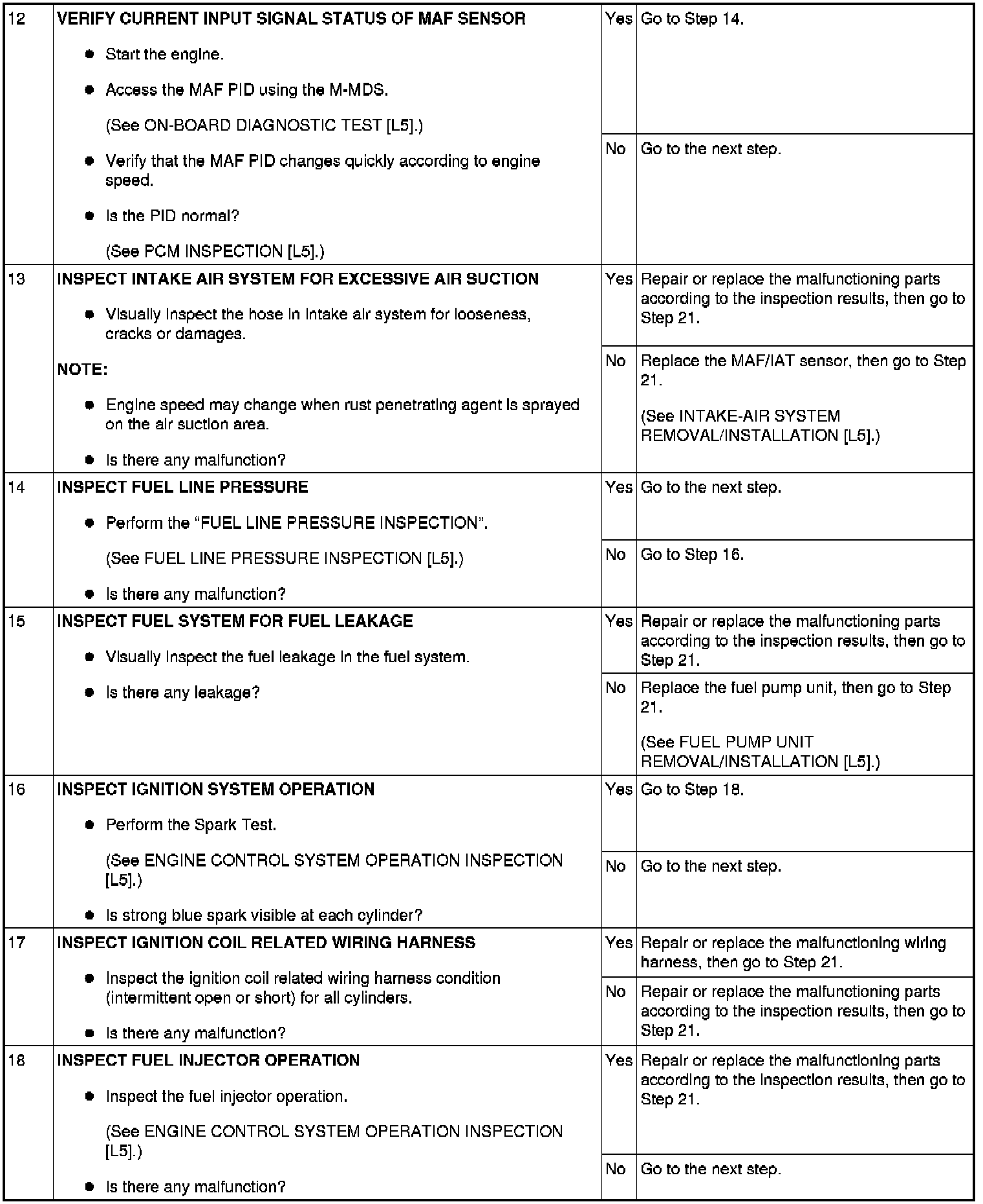

Step 12-Step 18:

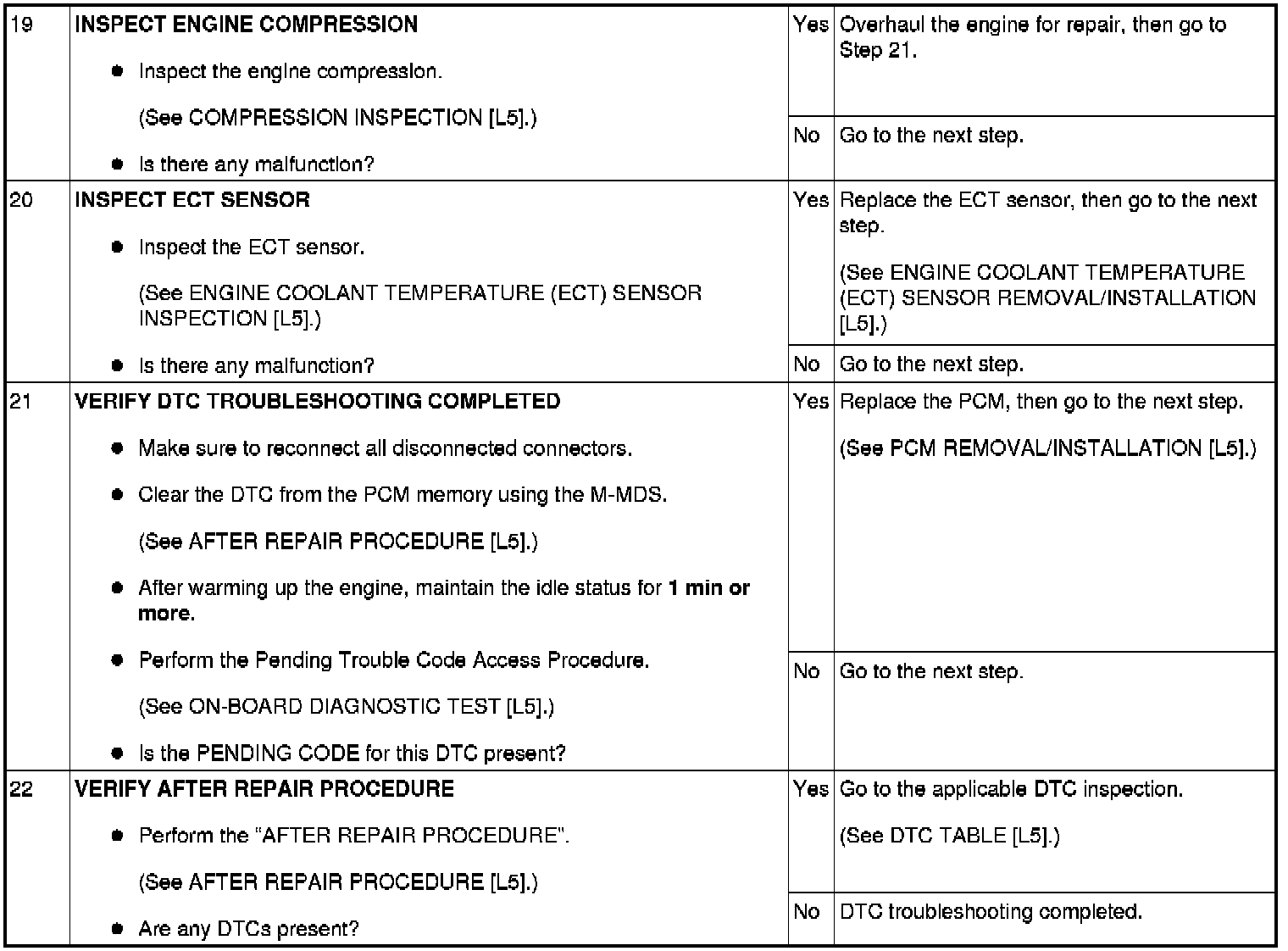

Step 19-Step 22:
