P0480

DTC P0480:00 [L5]

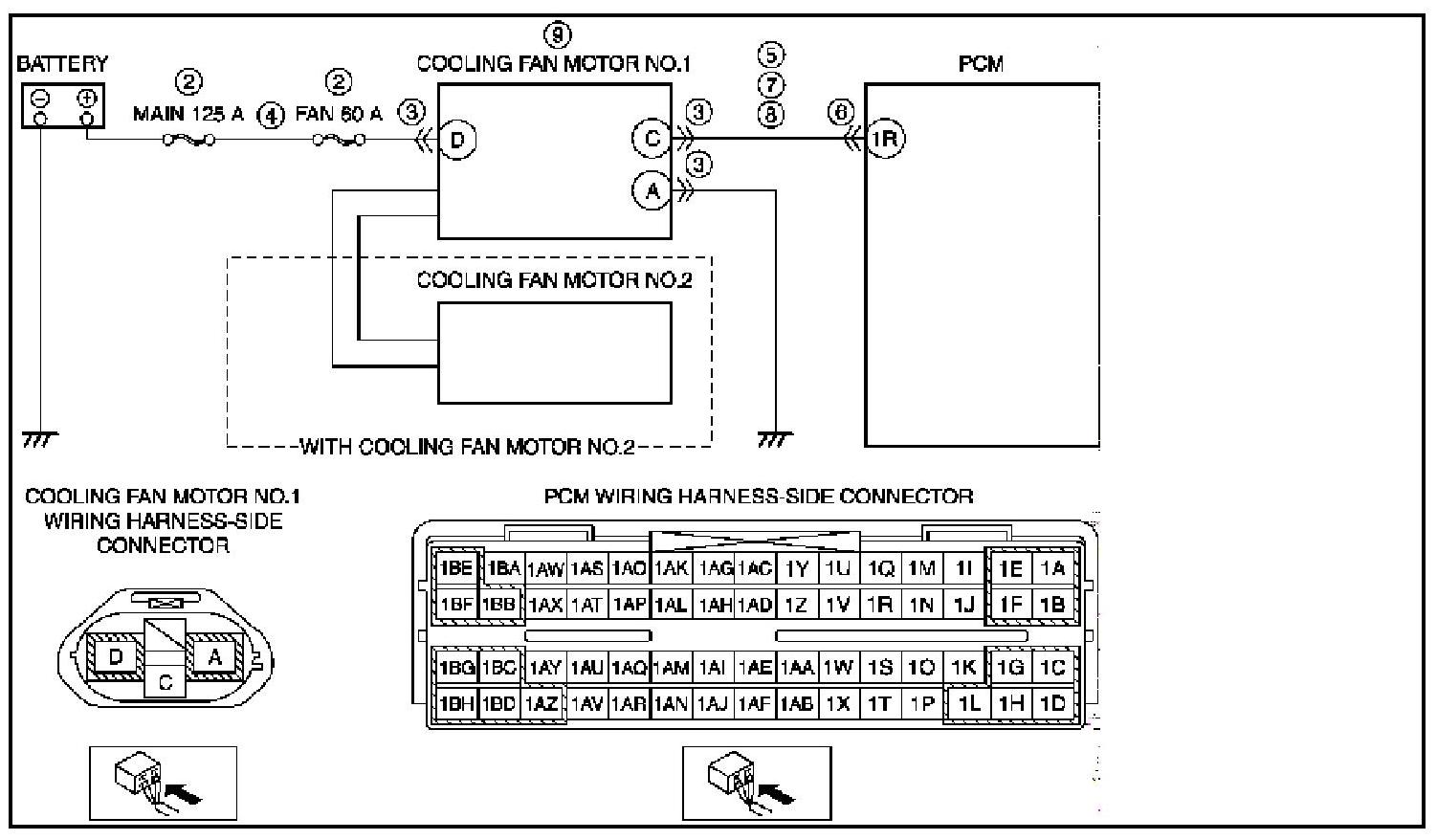

Without Fan Control Module Relay

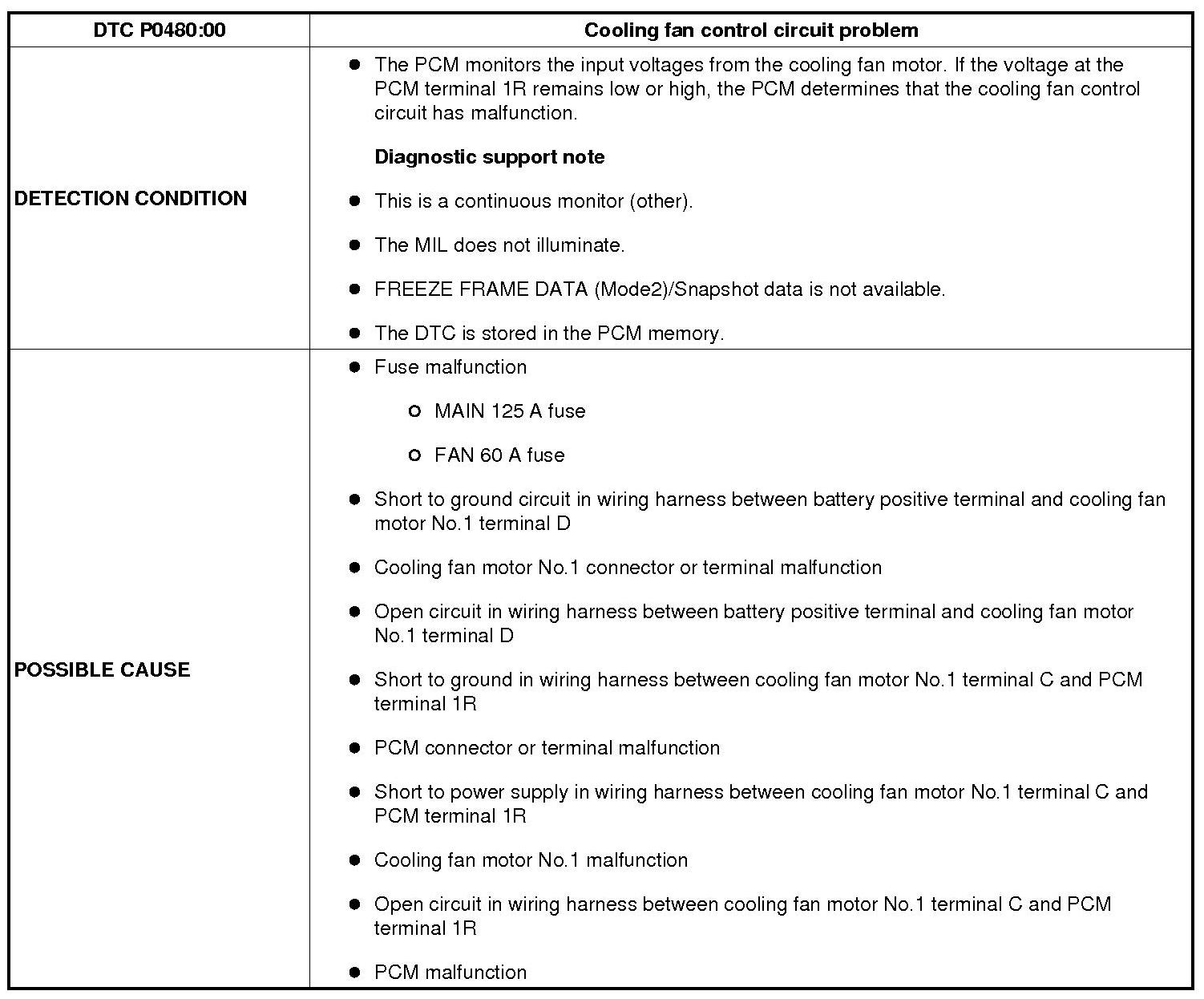

Detection Condition/Possible Cause (Part 1):

Detection Condition/Possible Cause (Part 2):

Diagnostic procedure

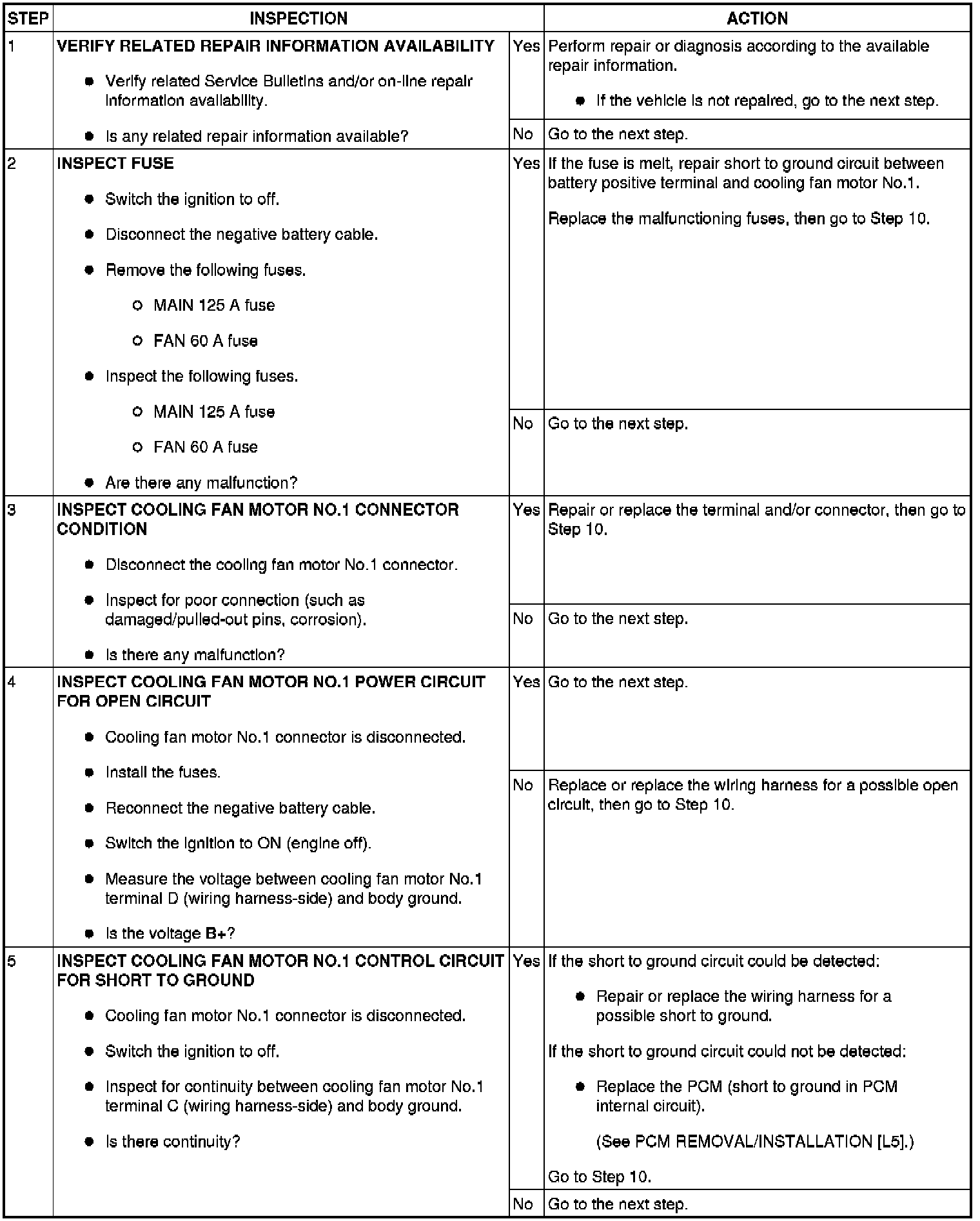

Step 1-Step 5:

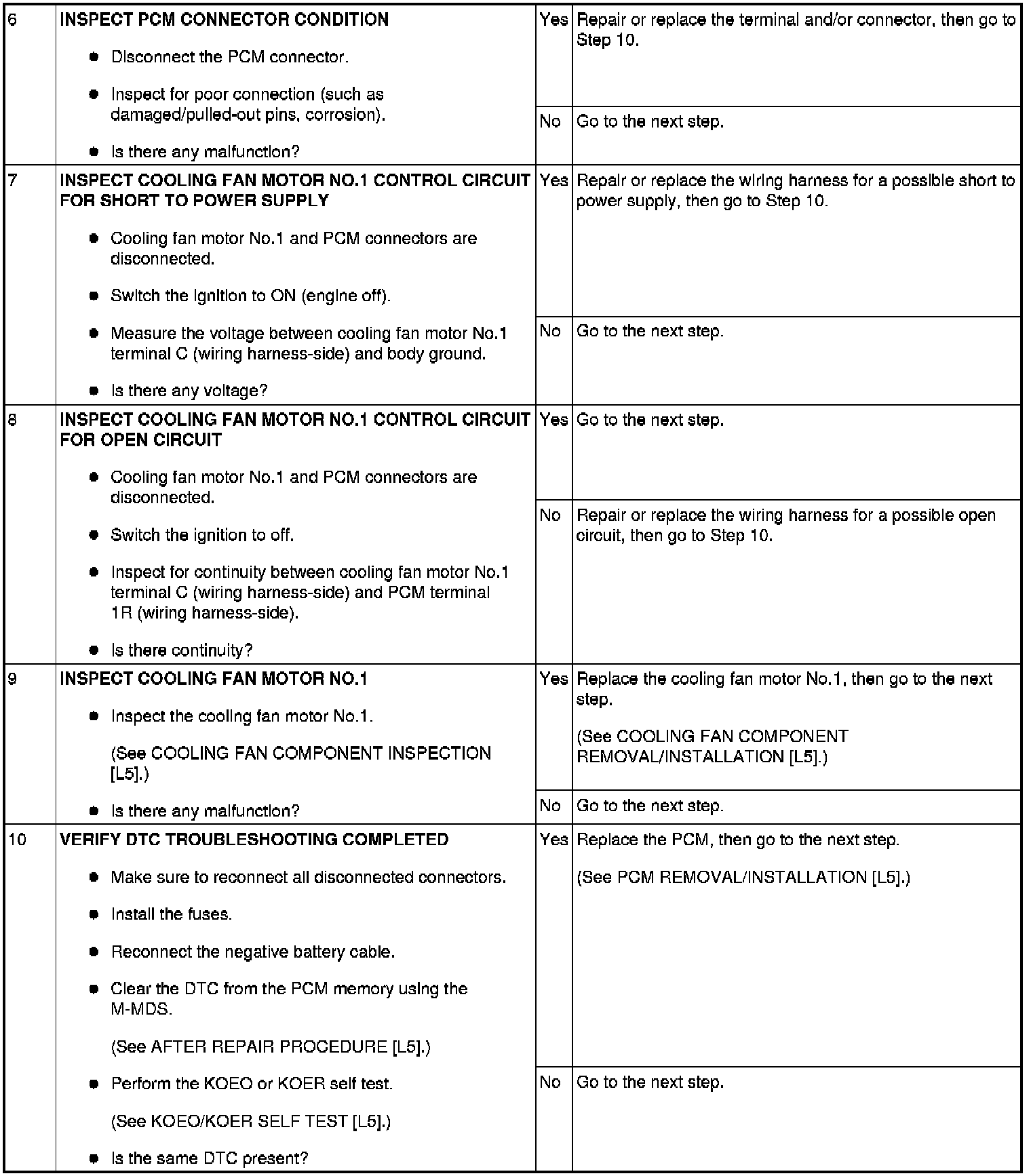

Step 6-Step 10:

Step 11:

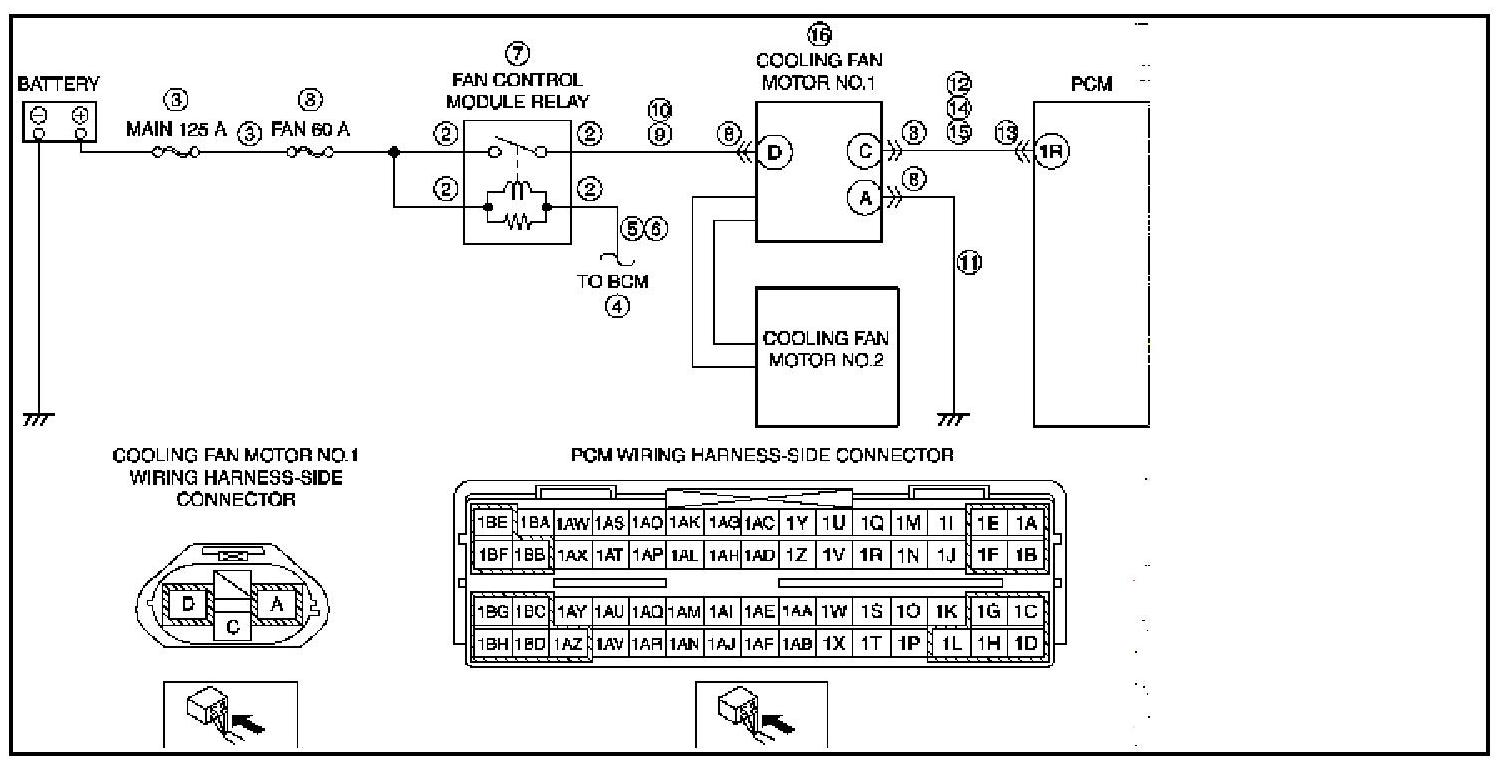

With Fan Control Module Relay

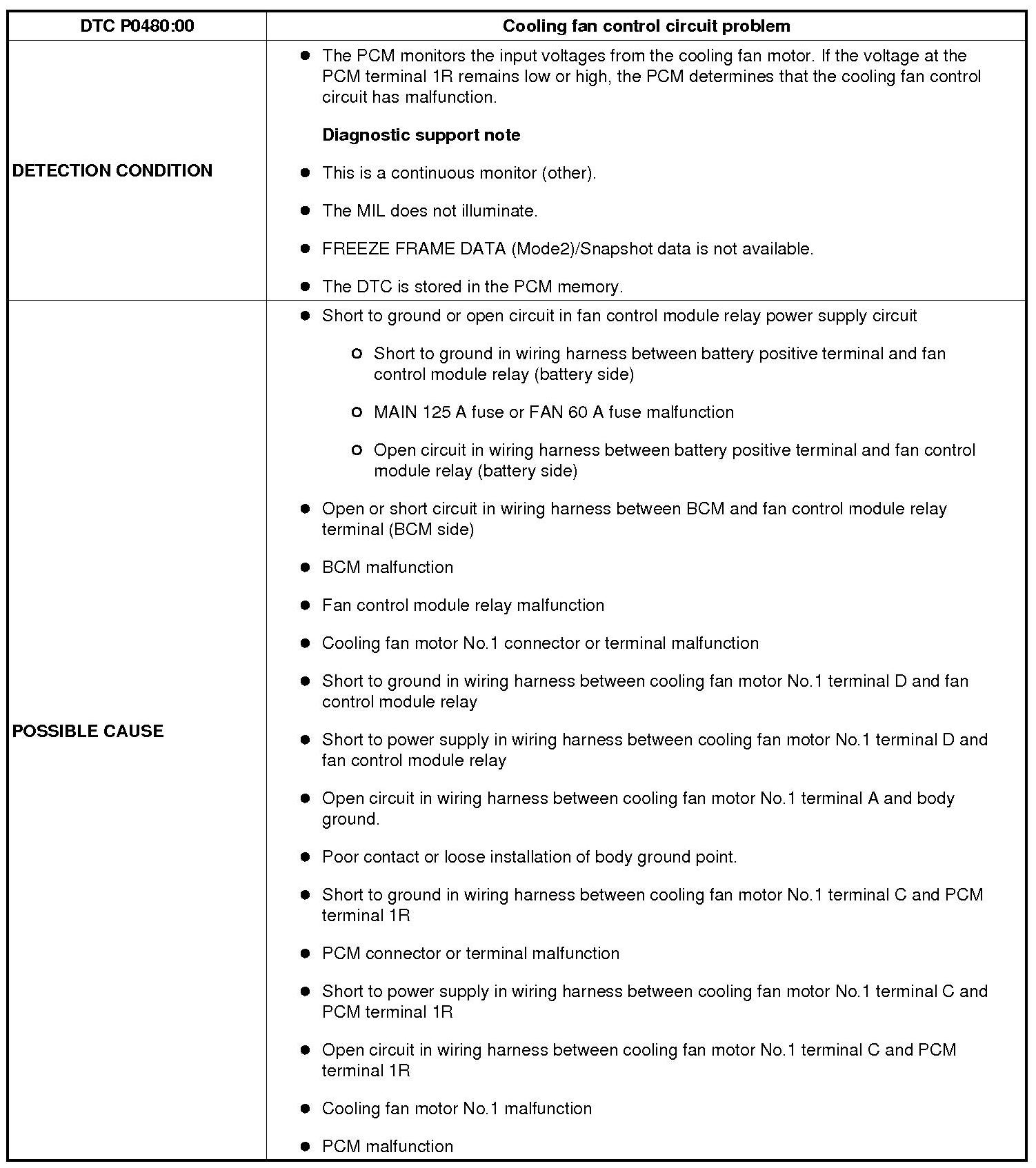

Detection Condition/Possible Cause (Part 1):

Detection Condition/Possible Cause (Part 2):

Diagnostic procedure

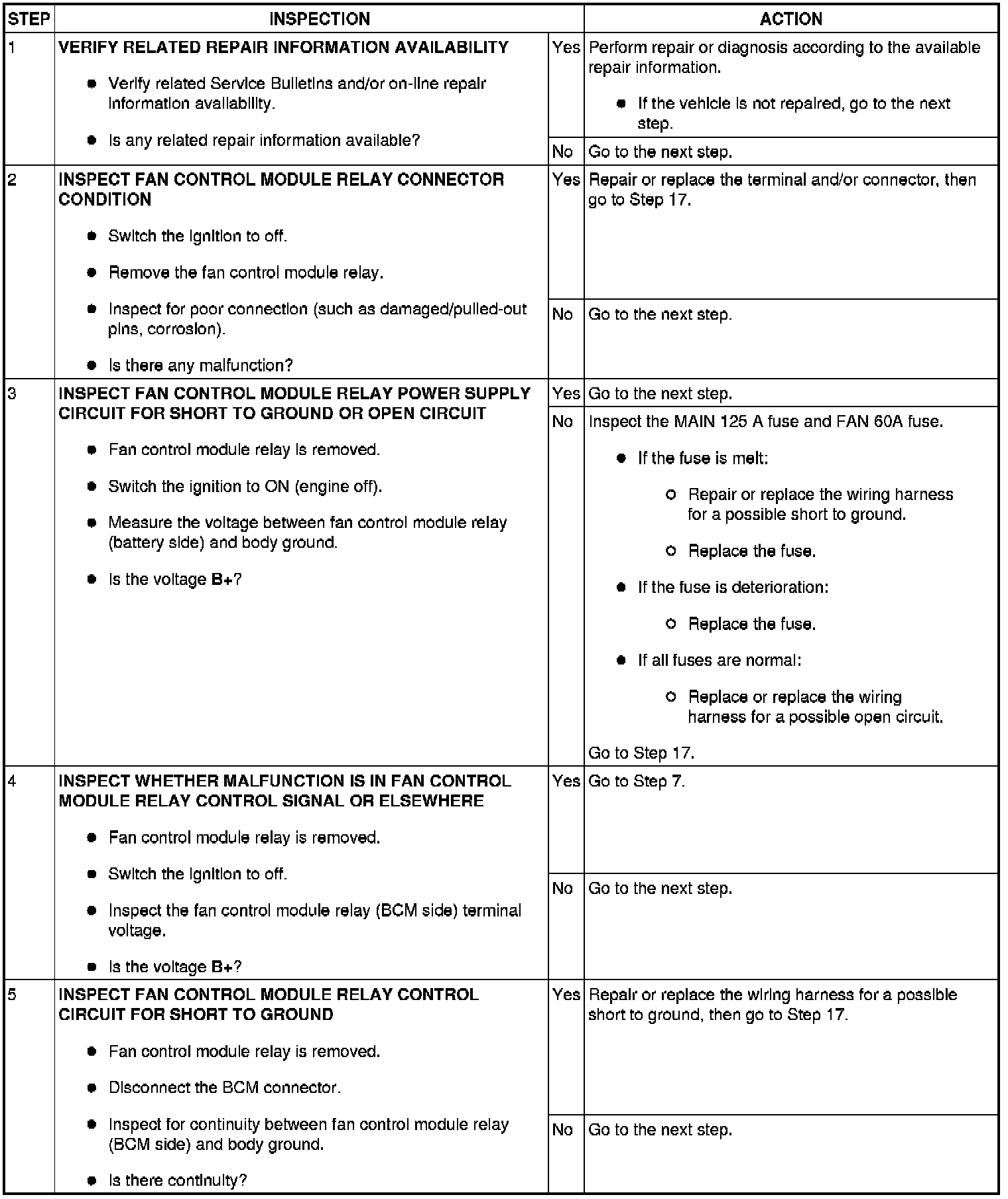

Step 1-Step 5:

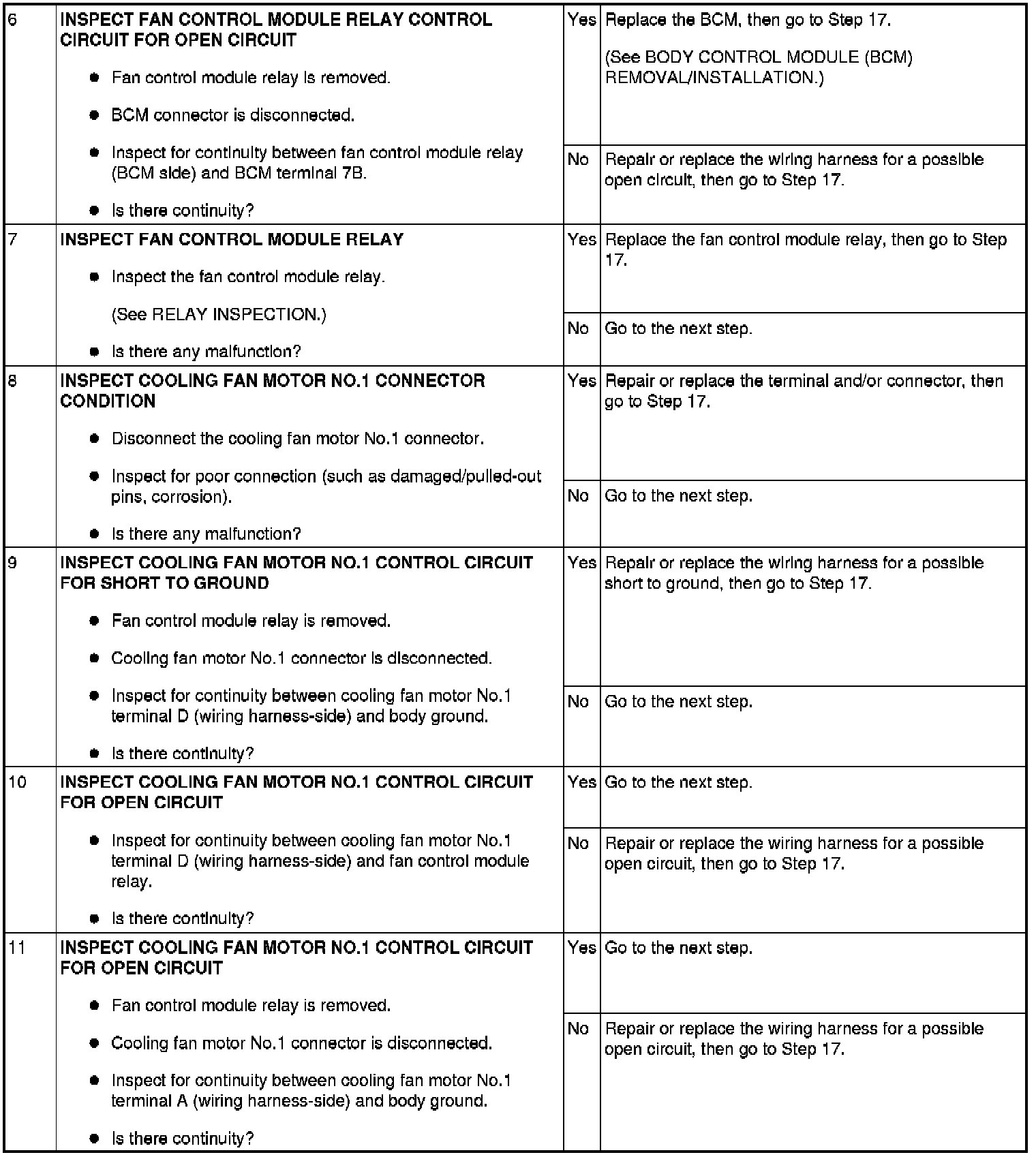

Step 6-Step 11:

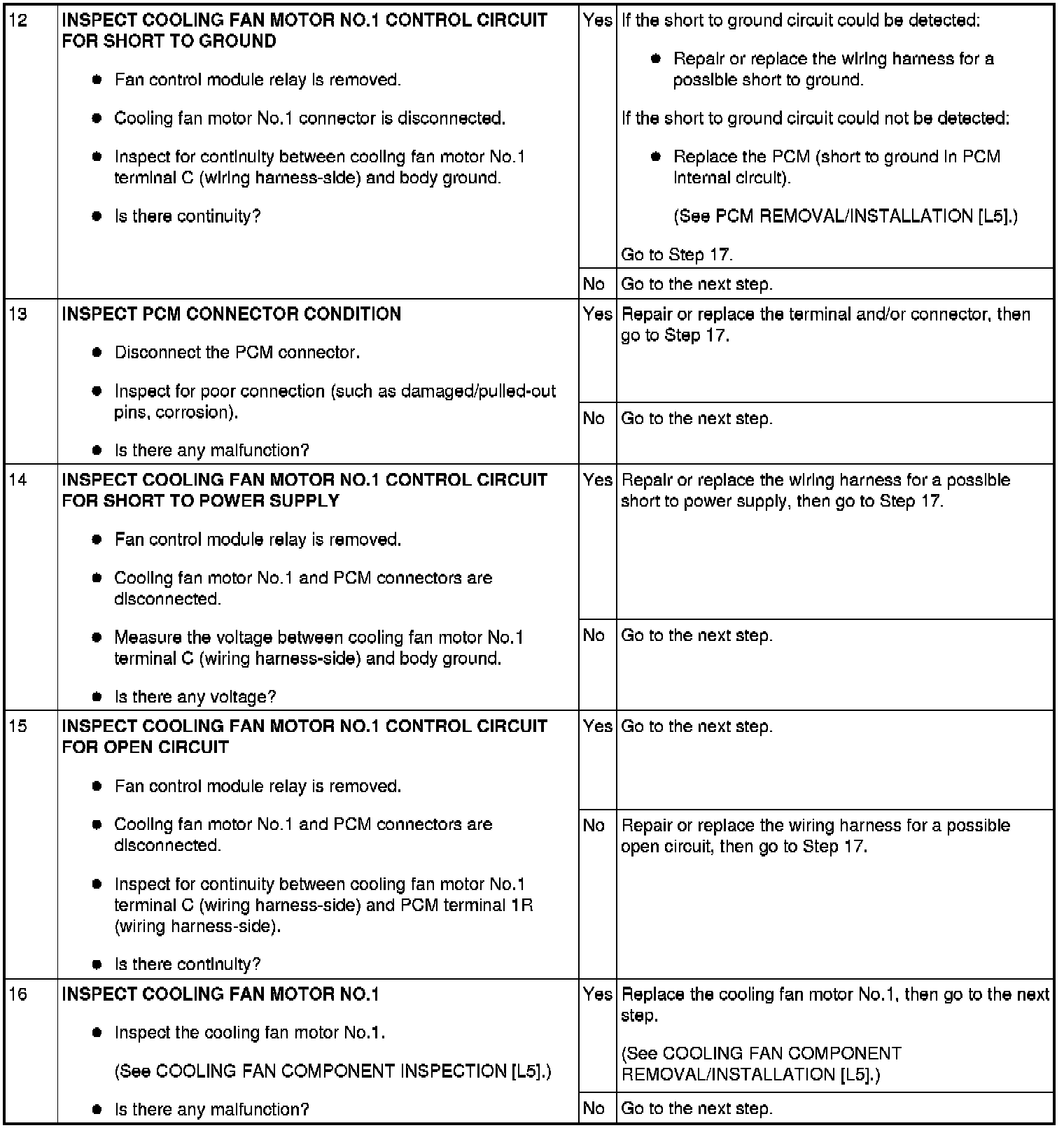

Step 12-Step 16:

Step 17-Step 18:
