Home >> Mazda >> 2010 >> 6 L4-2.5L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> P Code Charts >> P0172

P0172




DTC P0172:00 [L5]

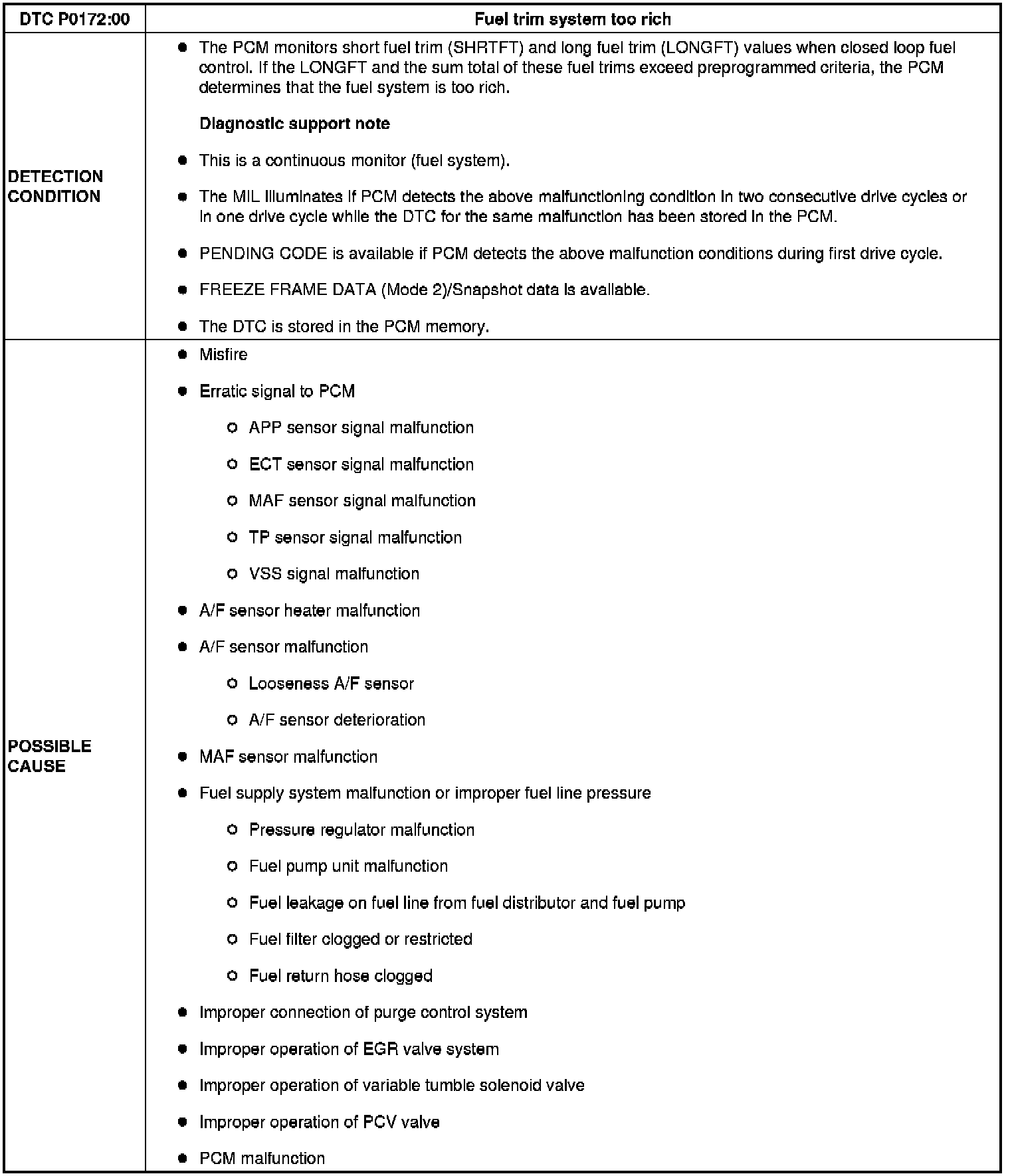

Detection Condition/Possible Cause:





Diagnostic procedure

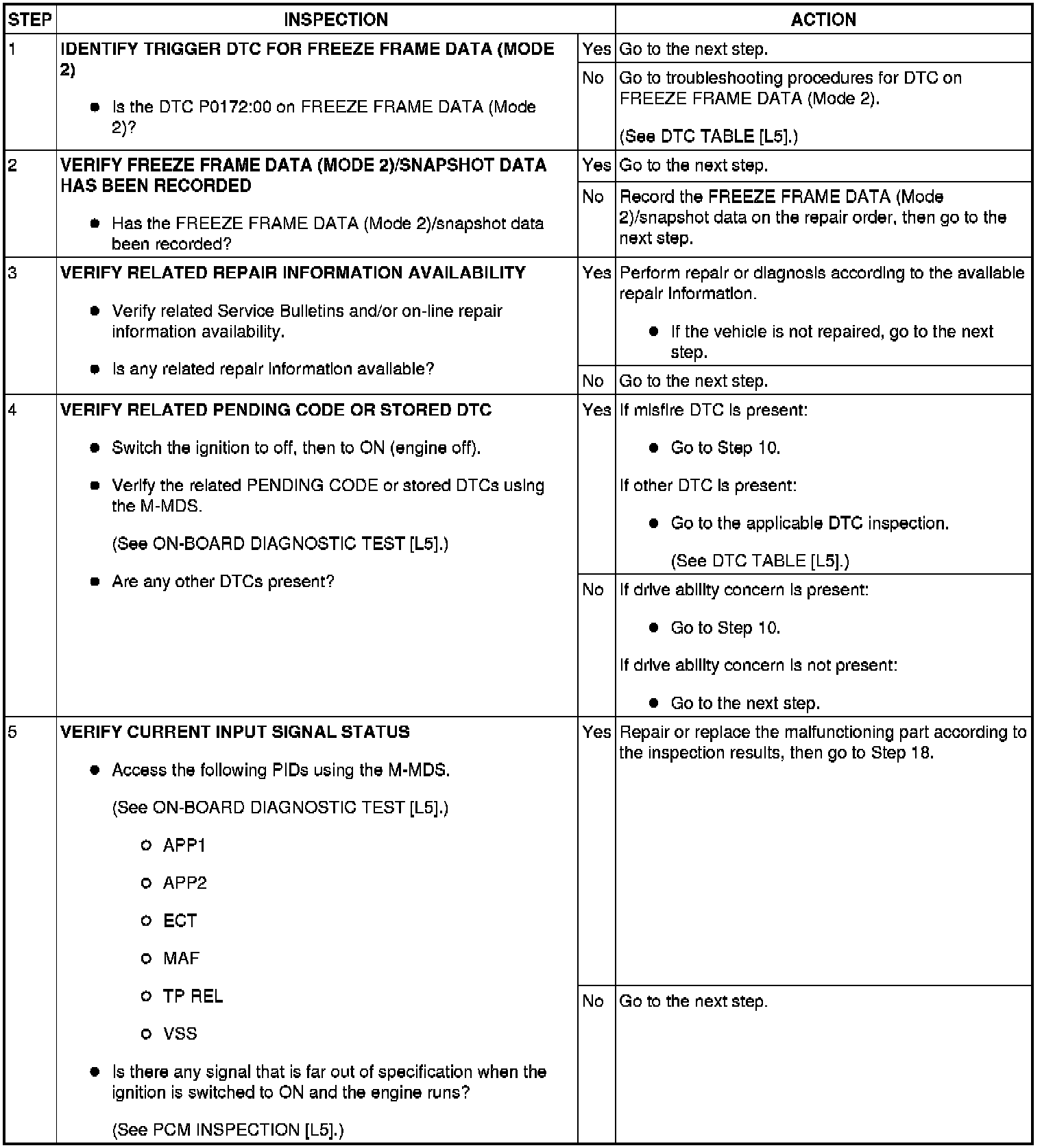

Step 1-Step 5:

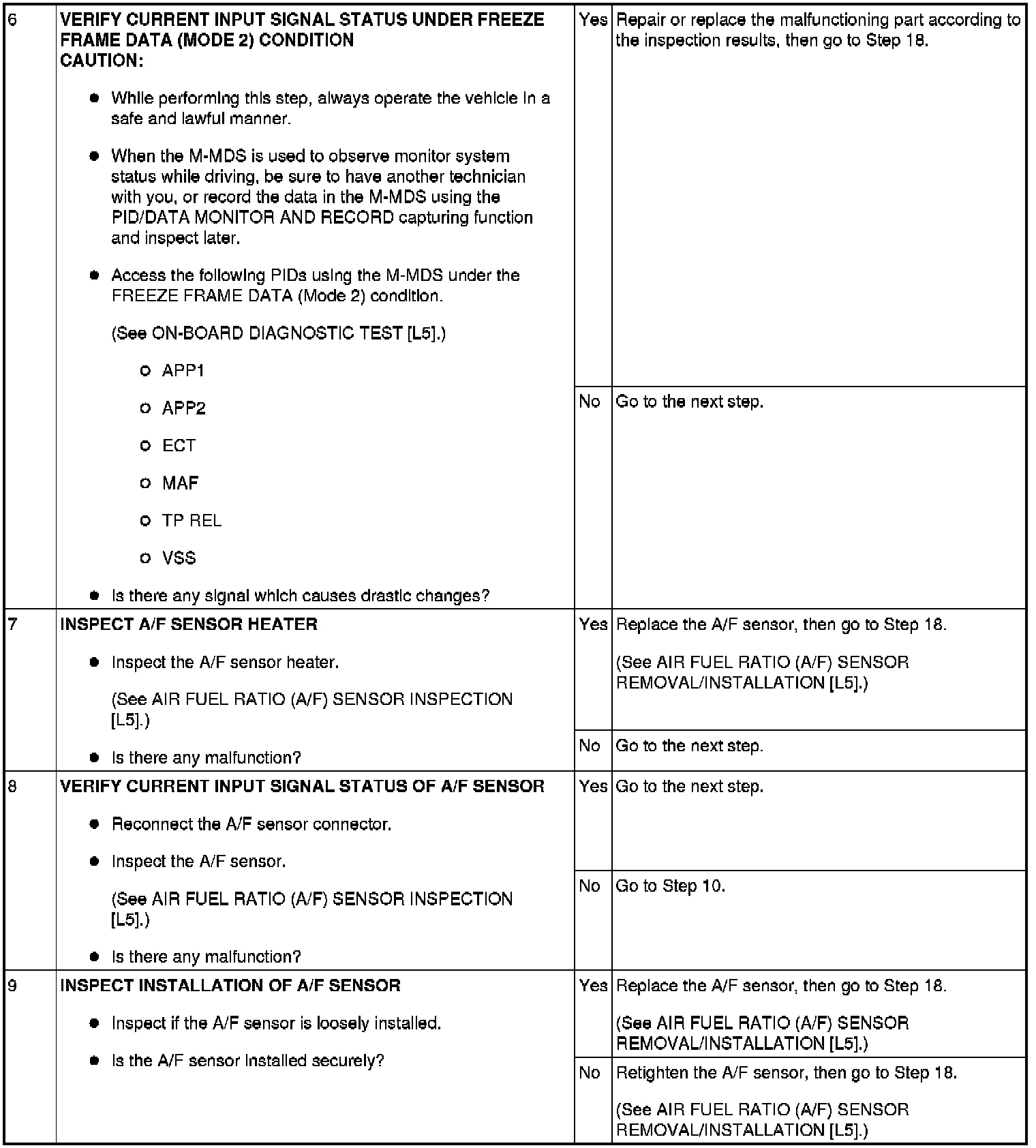

Step 6-Step 9:

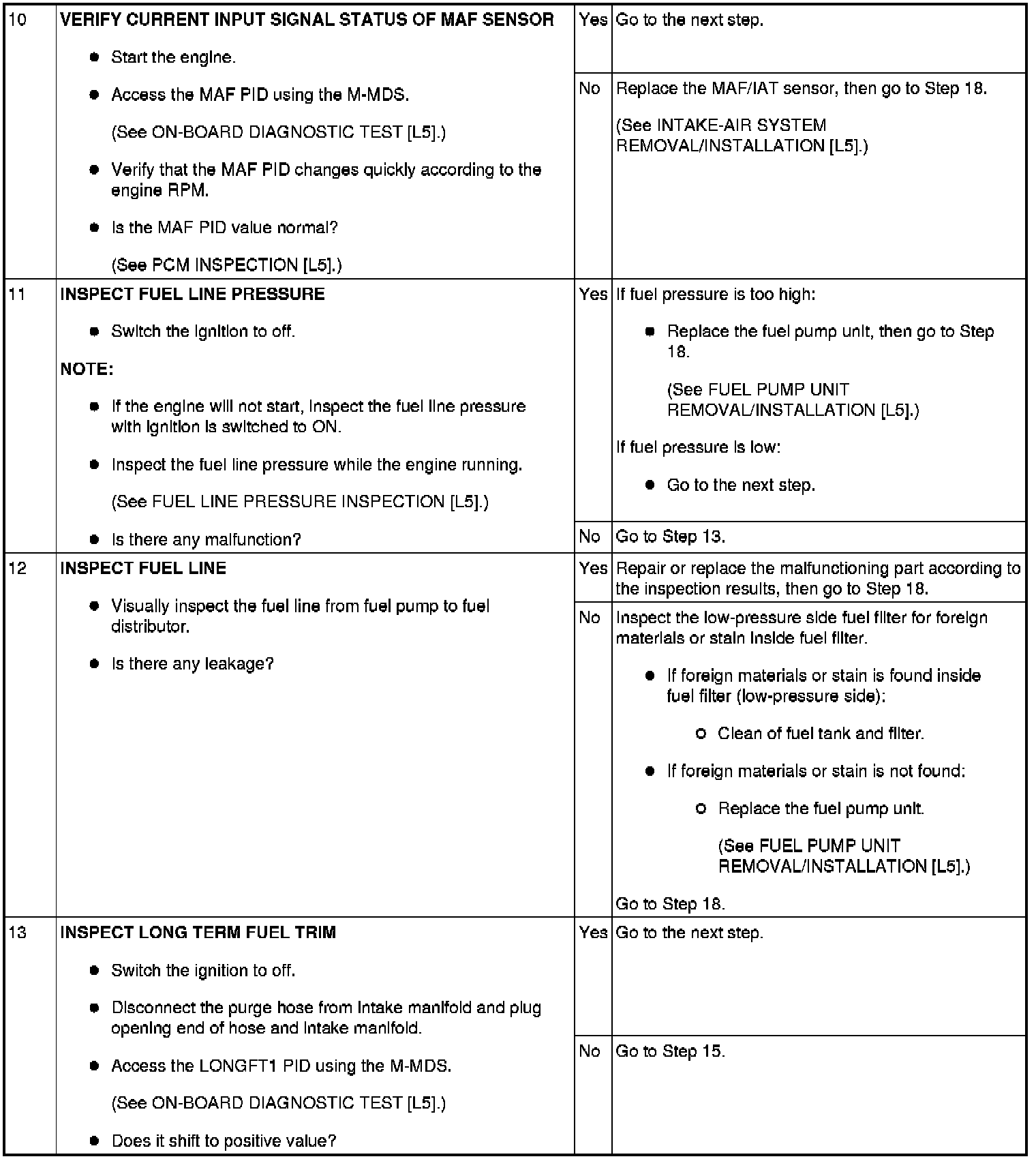

Step 10-step 13:

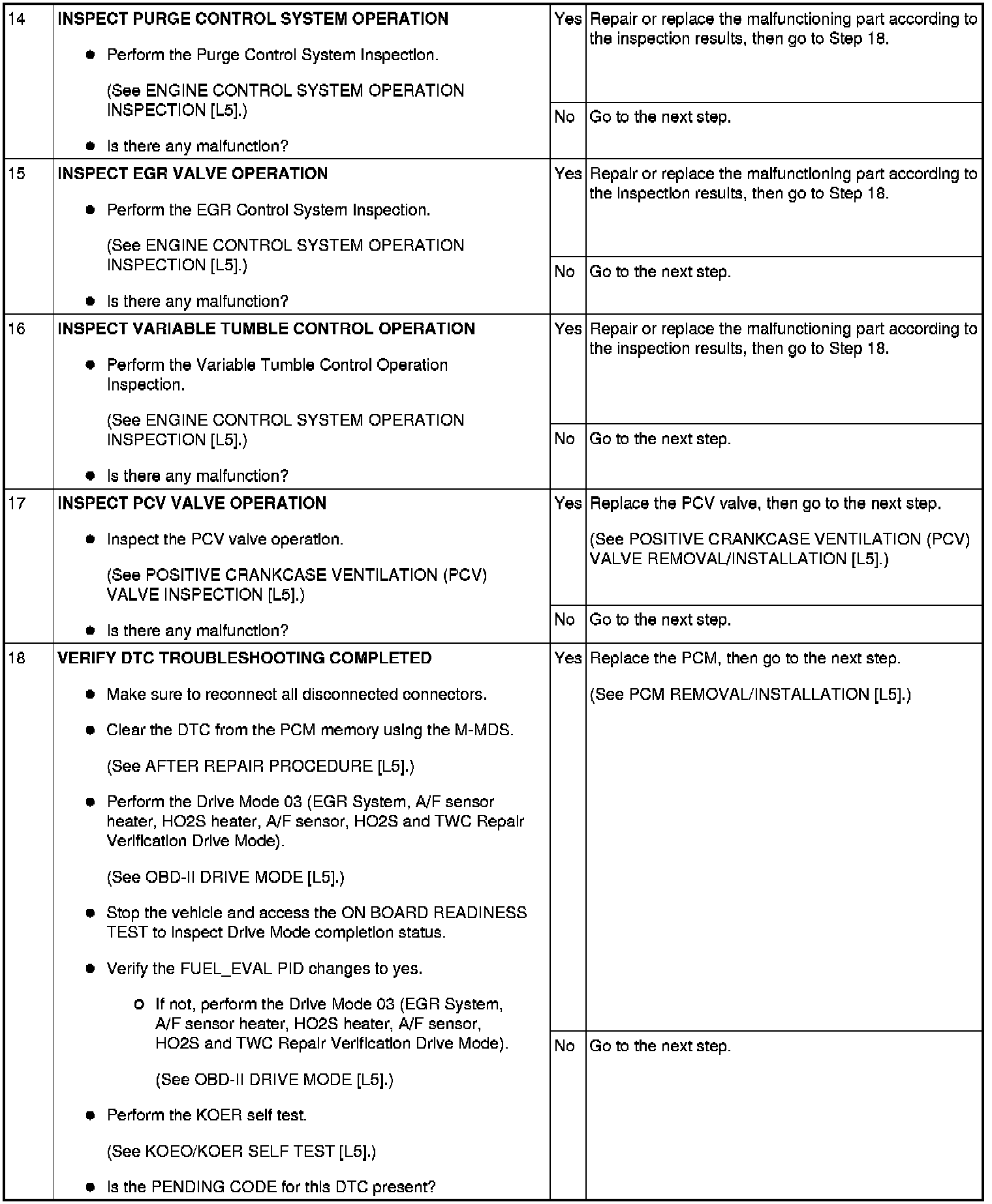

Step 14-Step 18:





Step 19:
