B10E6:12/- - Immobilizer System (Advanced Keyless Entry And Push Button Start System)




SECURITY LIGHT: NOT ILLUMINATED, DTC B10E6:12/- [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)]

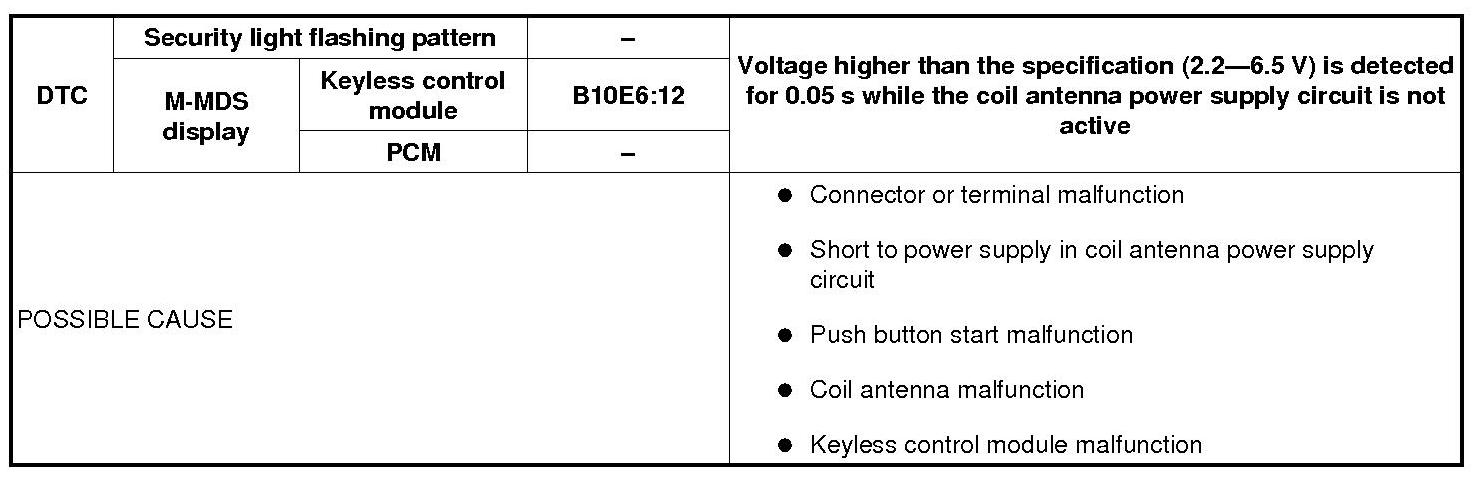

Possible Cause (Part 1):





Possible Cause (Part 2):





Diagnostic Procedure

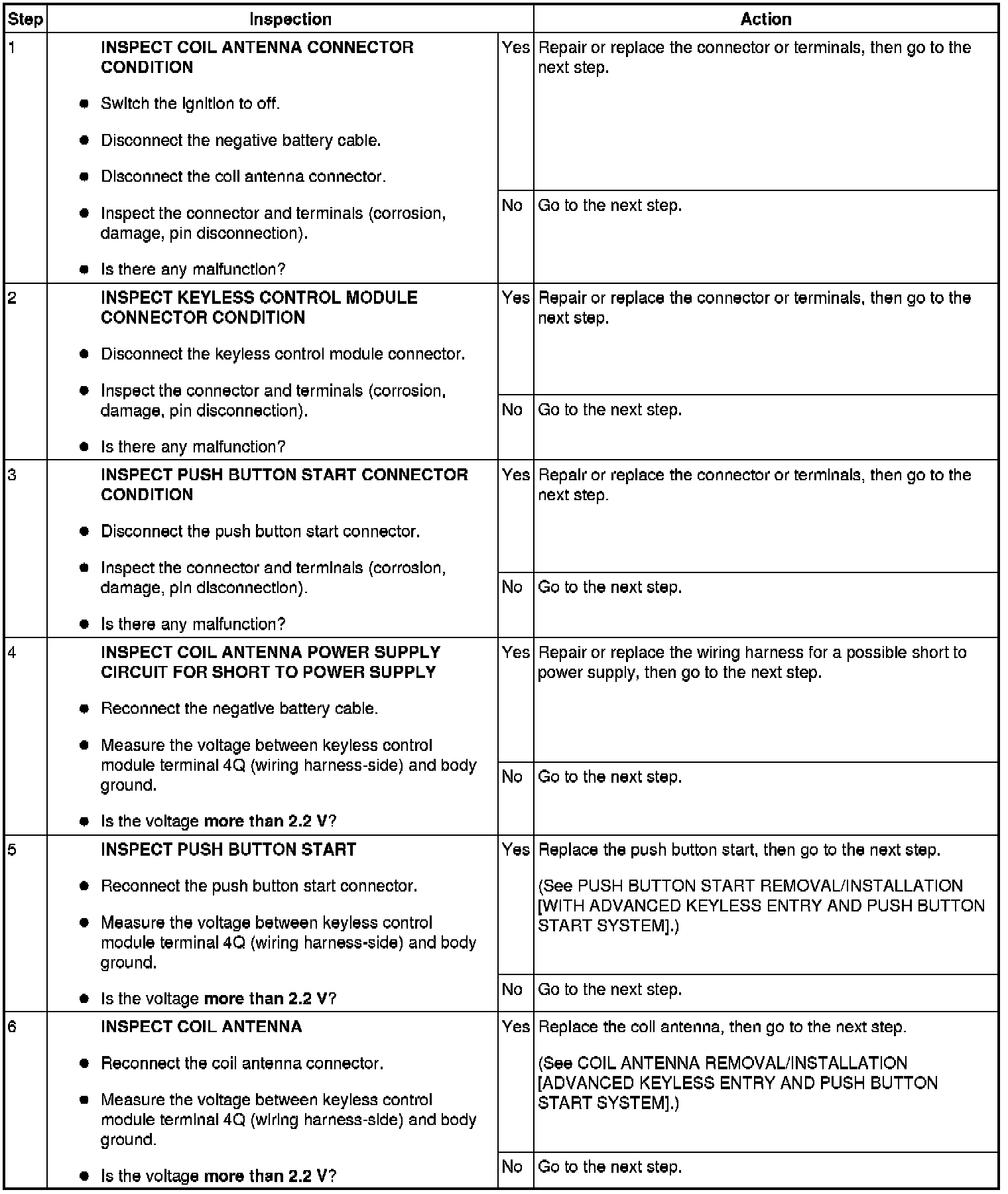

Step 1-Step 6:

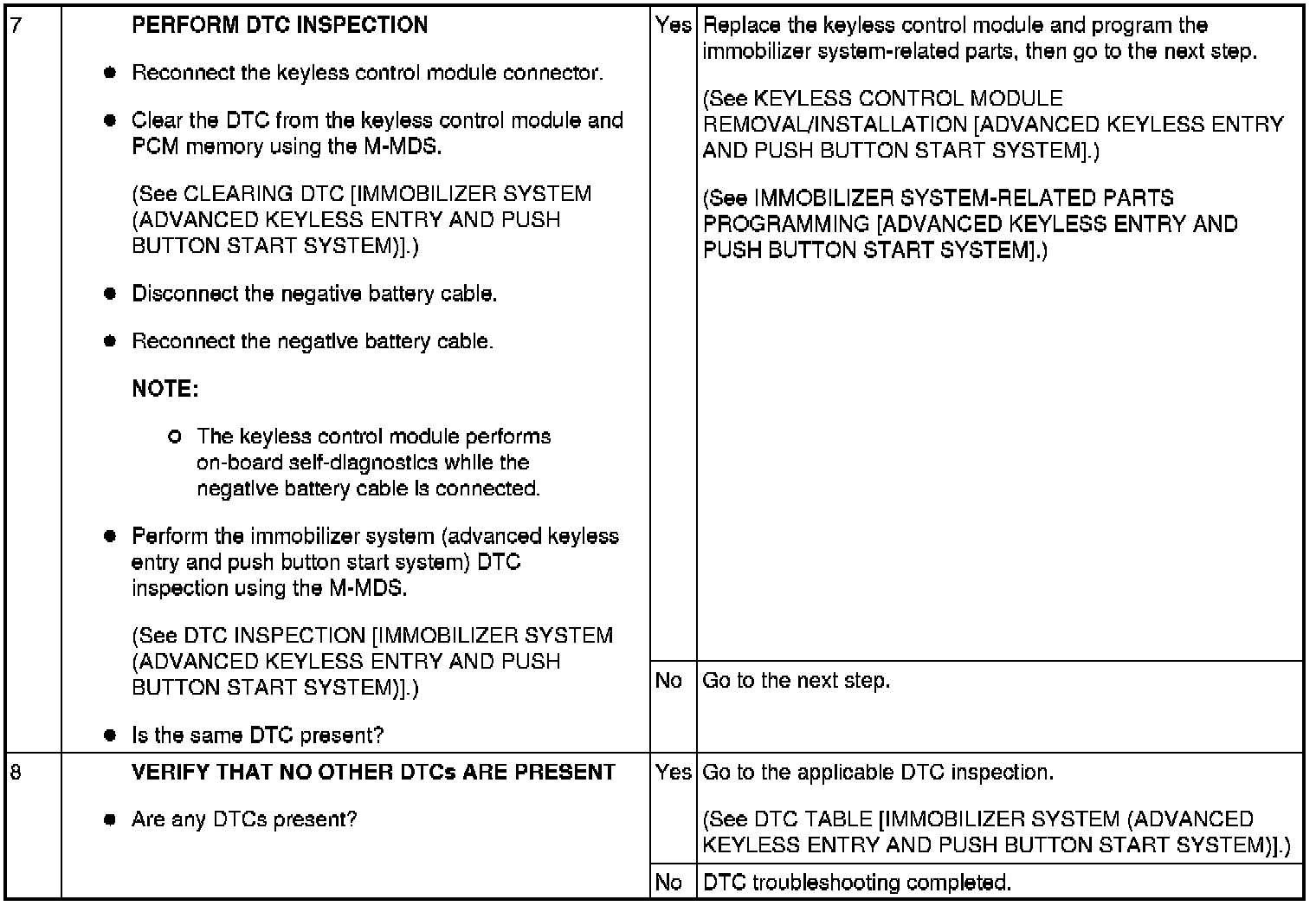

Step 7-Step 8:
