Fuel Pump Relay
>>
Locations
Fuel Pump Relay: Locations
RELAY LOCATION

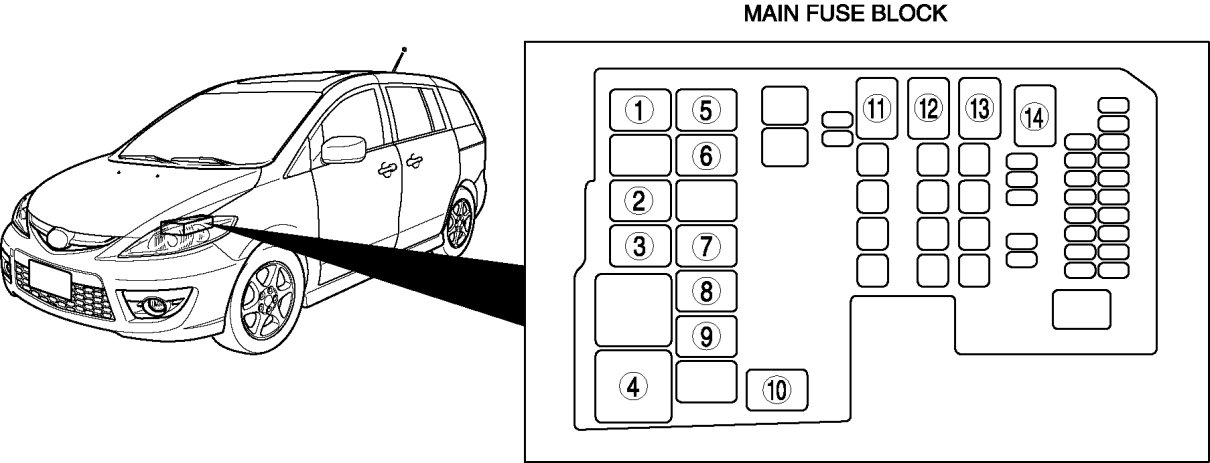

Without Rear Vent

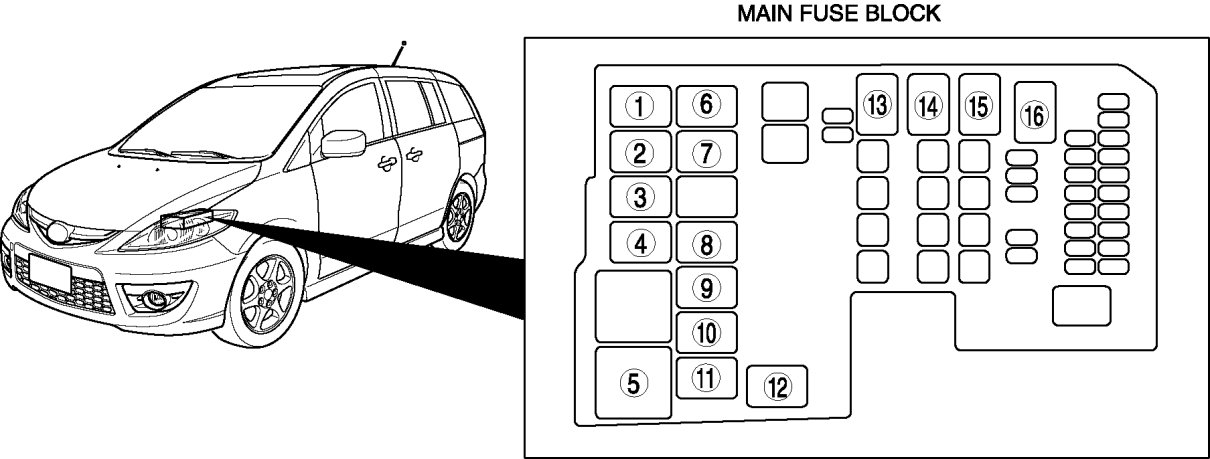

With Rear Vent
From Wiring Information

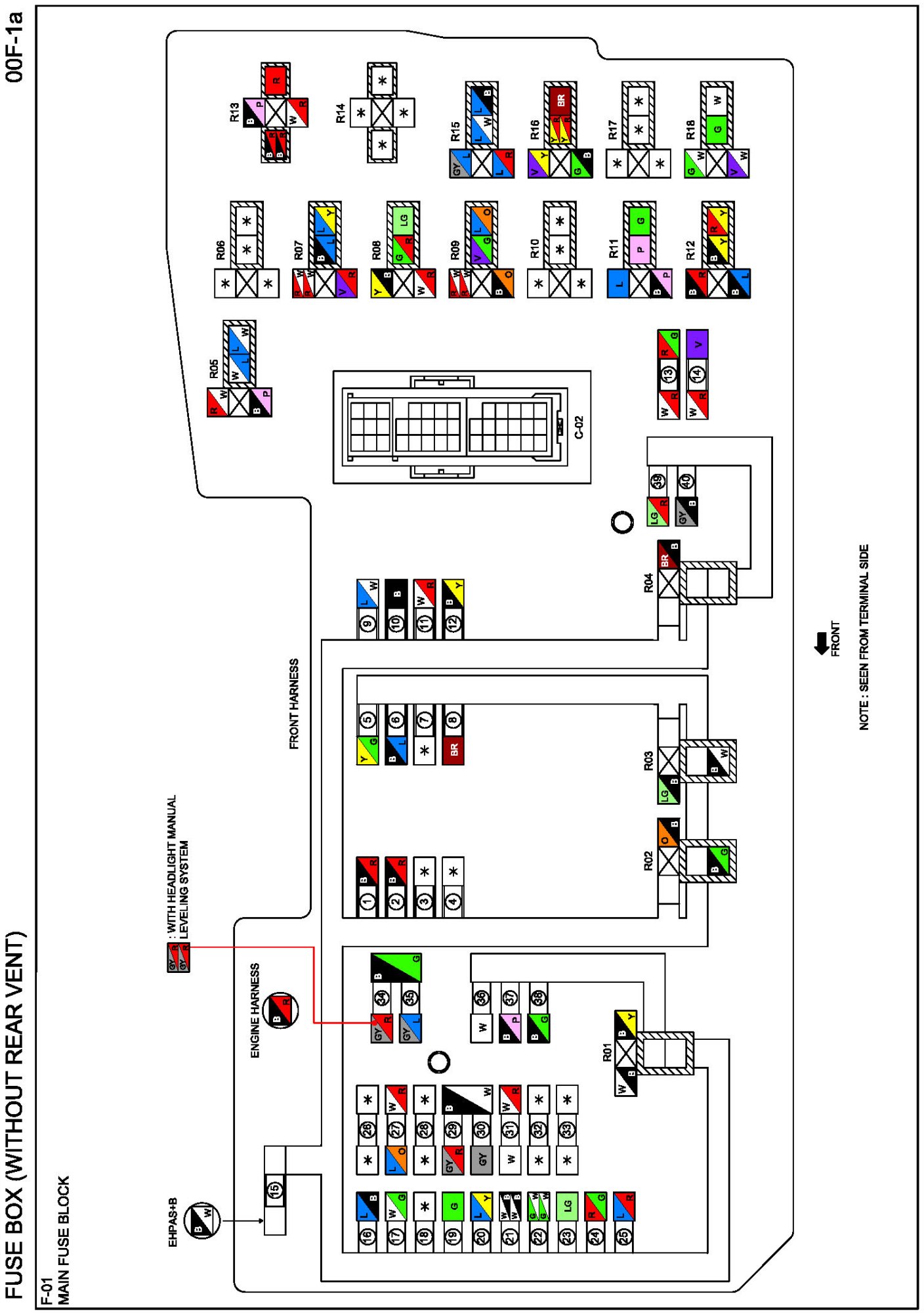

Diagram 00F-1a:

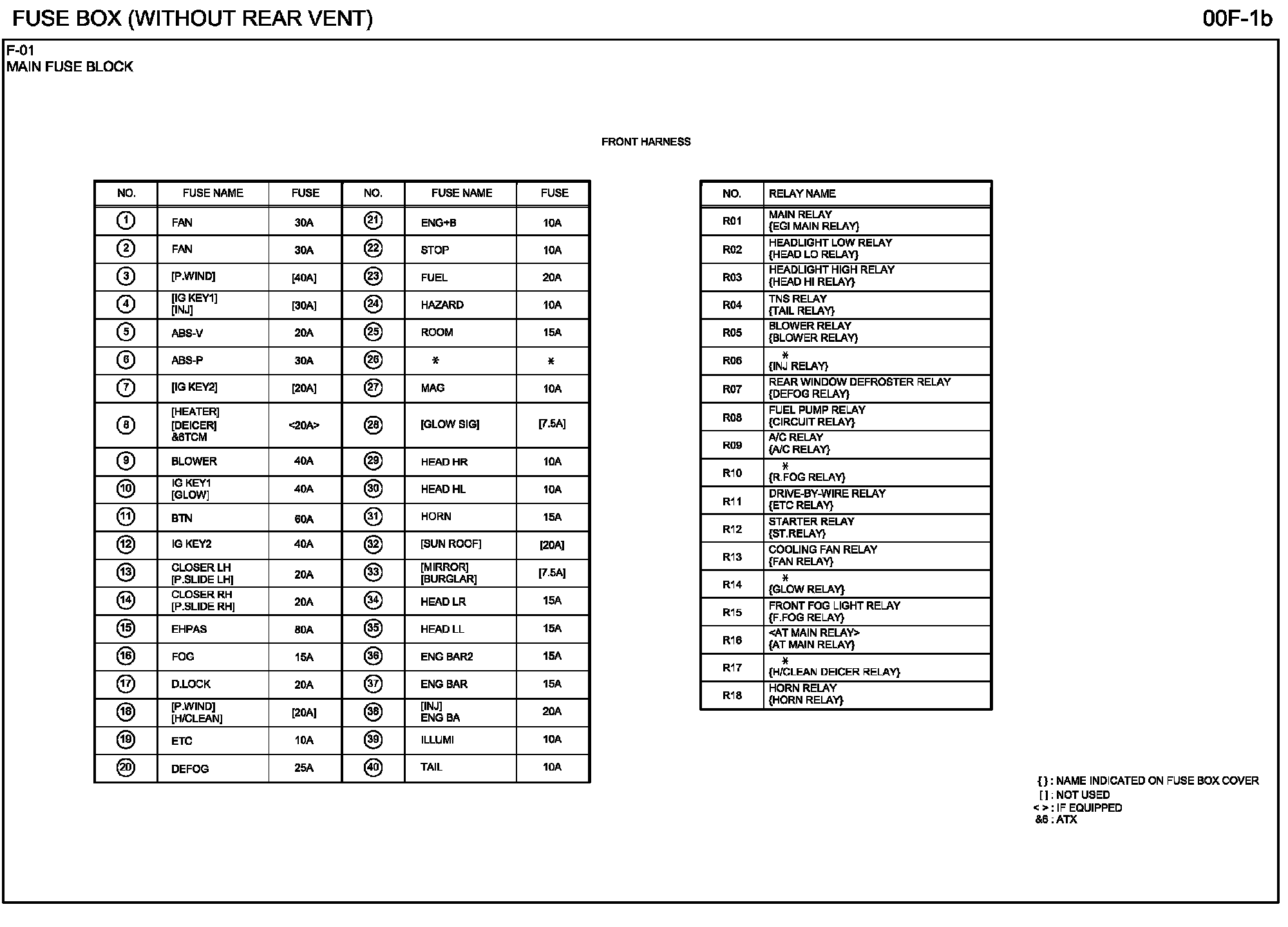

Diagram 00F-1b:

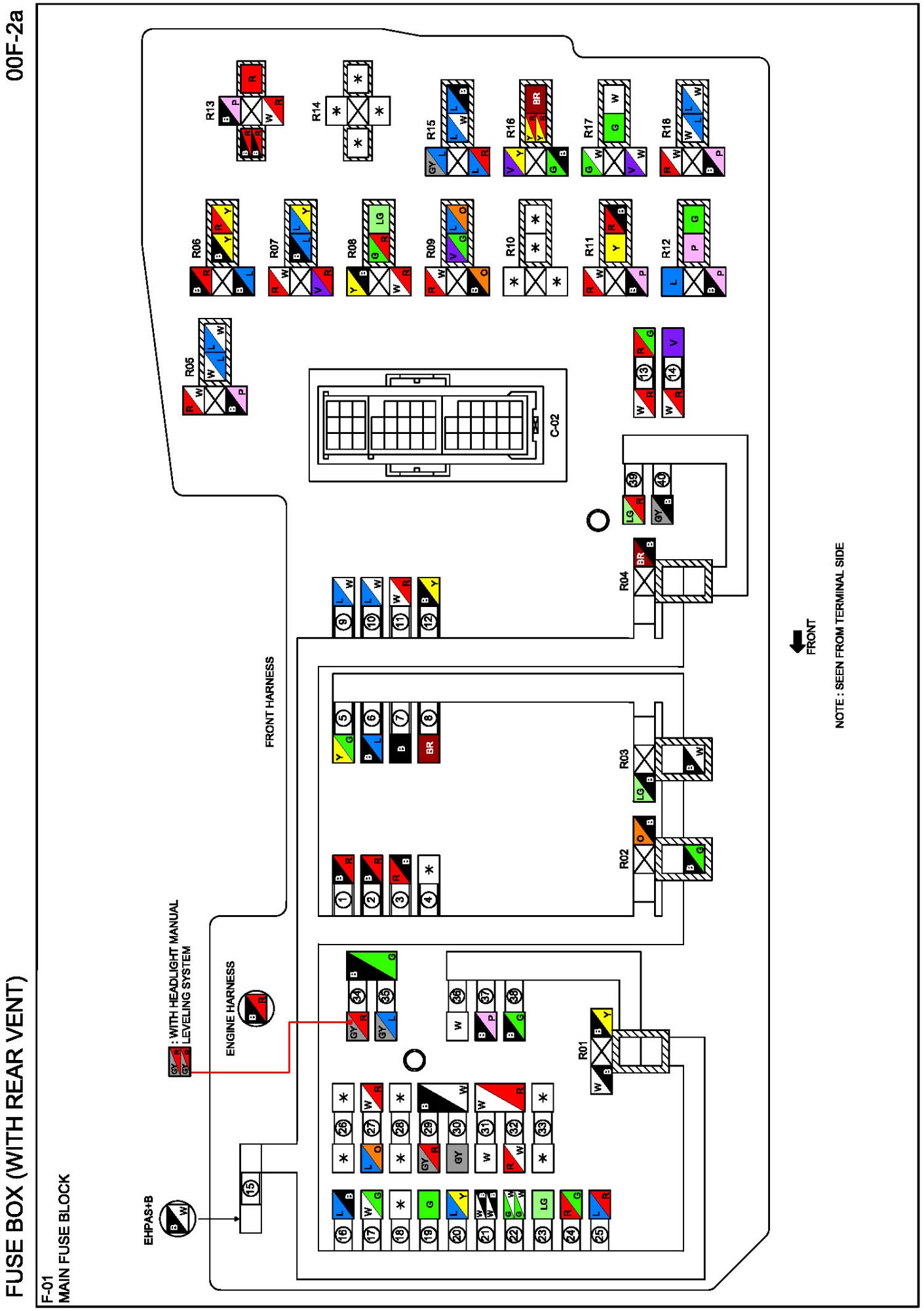

Diagram 00F-2a:

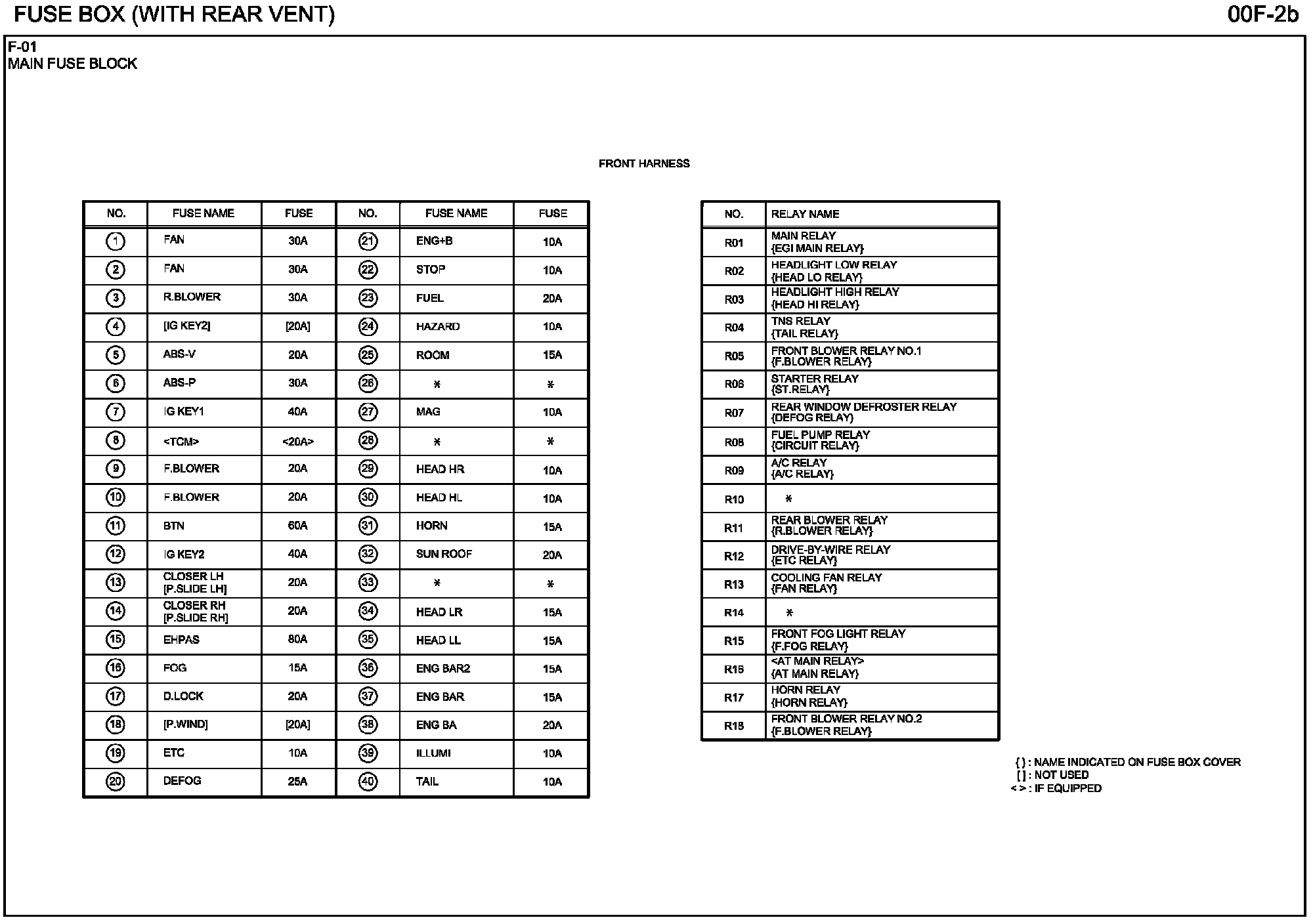

Diagram 00F-2b:
