Hazard Warning Switch: Testing and Inspection

HAZARD WARNING SWITCH INSPECTION

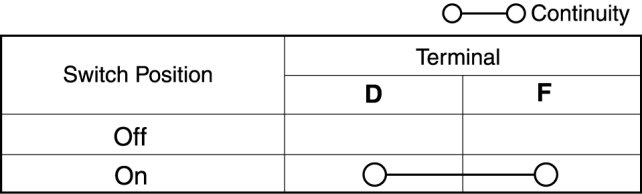

1. Verify that the continuity between the hazard switch terminals is as indicated in the table.






- If not as indicated in the table, replace the hazard warning switch.

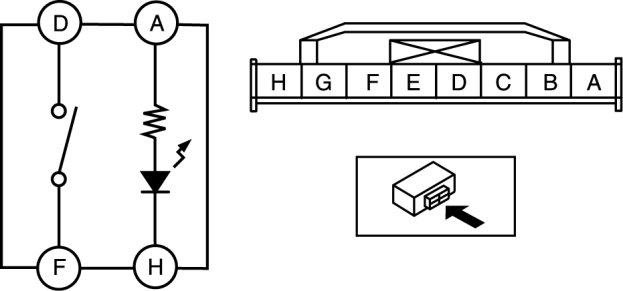

2. Connect the positive battery to the hazard warning switch terminal A, the negative battery to the hazard warning switch terminal H.

3. Verify that LED illuminated.

- If there is any malfunction replace the hazard warning switch.
