Connector Locations

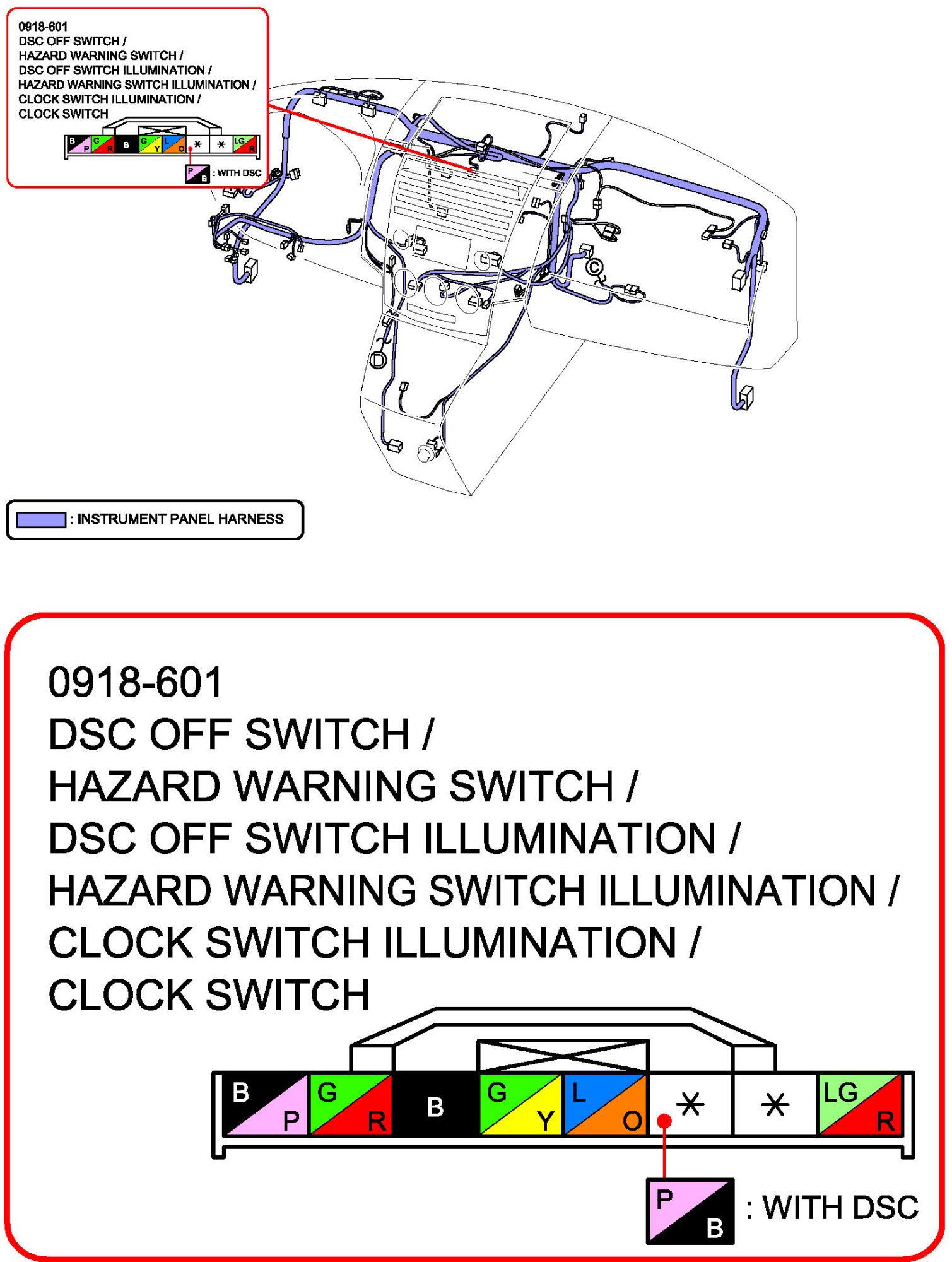

DSC OFF Switch/Hazard Warning Switch/DSC OFF Switch Illumination/Hazard Warning Switch Illumination/Clock Switch Illumination/Clock Switch:
