No.7 No Cool Air - Manual Air Conditioner

NO.7 NO COOL AIR [MANUAL AIR CONDITIONER]

Description/Possible Cause:

- When performing an asterisked (*) troubleshooting inspection, shake the wiring harness and connectors while performing the inspection to discover whether poor contact points are the cause of any intermittent malfunctions. If there is a problem, check to make sure connectors, terminals and wiring harnesses are connected correctly and undamaged.
Diagnostic procedure

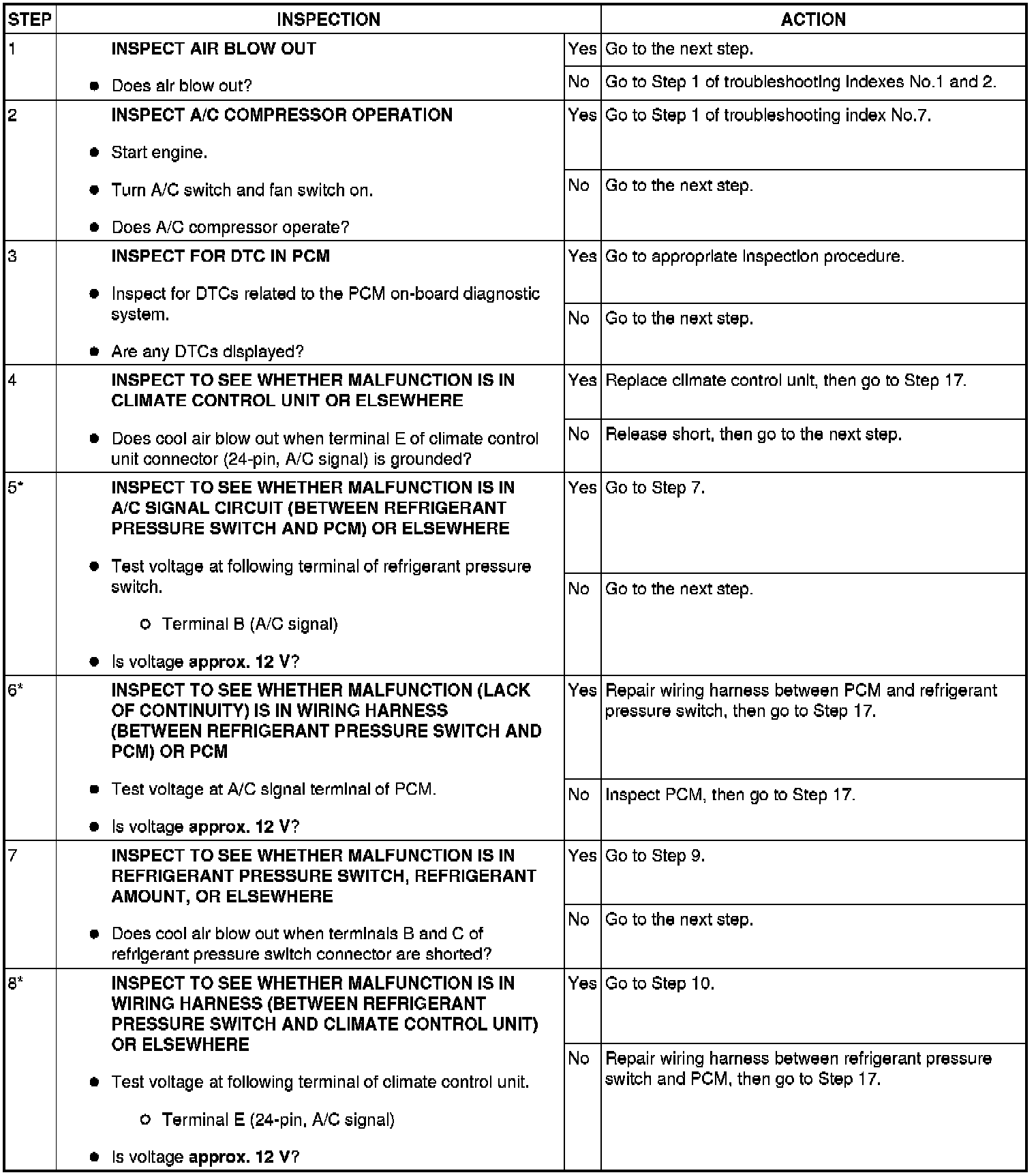

Step 1-Step 8:

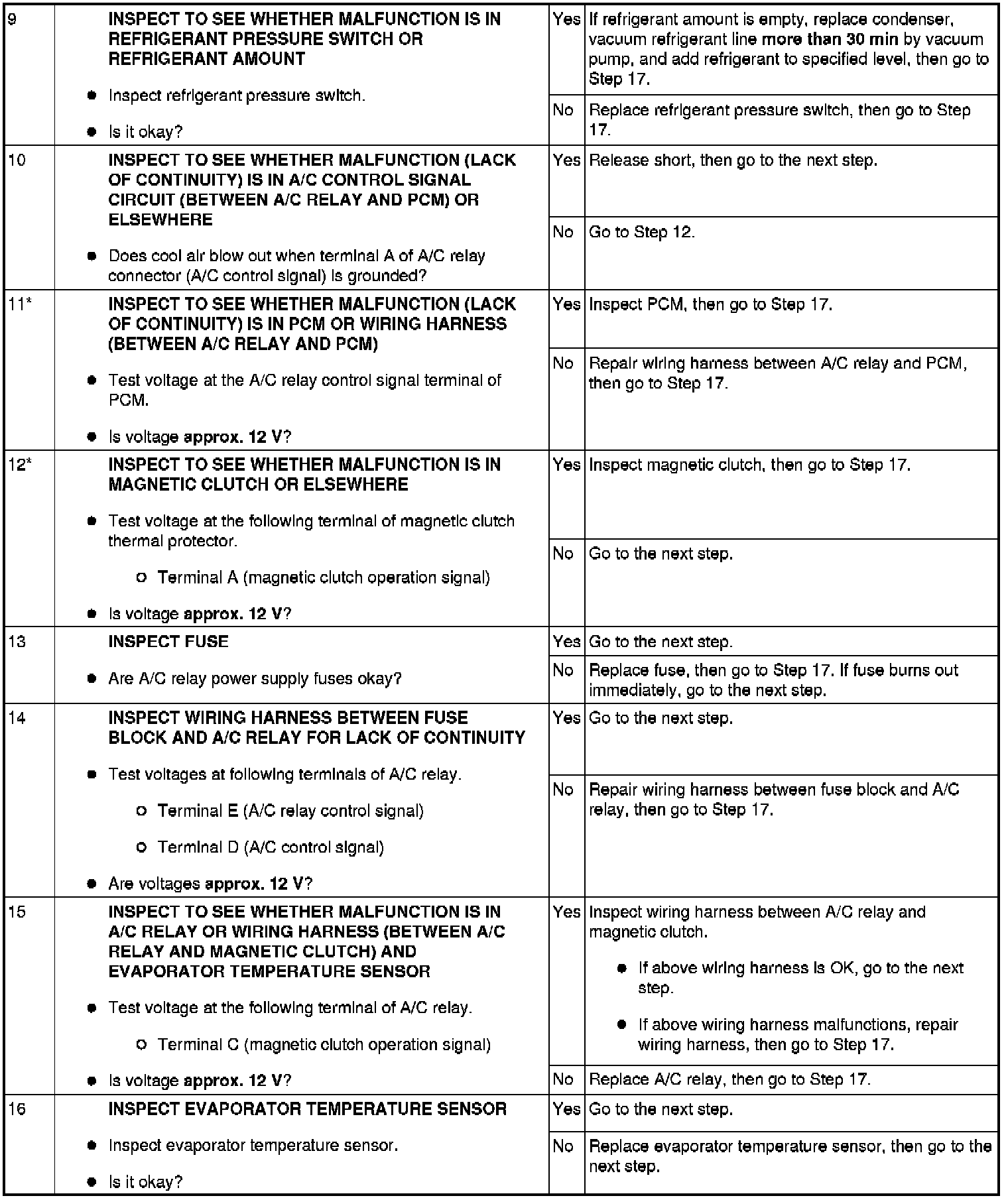

Step 9-Step 16:

Step 17:
