No.2 Amount of Air Blown From Vents Does Not Change - Full-Auto Air Conditioner




NO.2 AMOUNT OF AIR BLOWN FROM VENTS DOES NOT CHANGE [FULL-AUTO AIR CONDITIONER]

Description/Possible Cause:





- When performing an asterisked (*) troubleshooting inspection, shake the wiring harness and connectors while performing the inspection to discover whether poor contact points are the cause of any intermittent malfunctions. If there is a problem, inspect make sure connectors, terminals and wiring harnesses are connected correctly and undamaged.
Diagnostic procedure

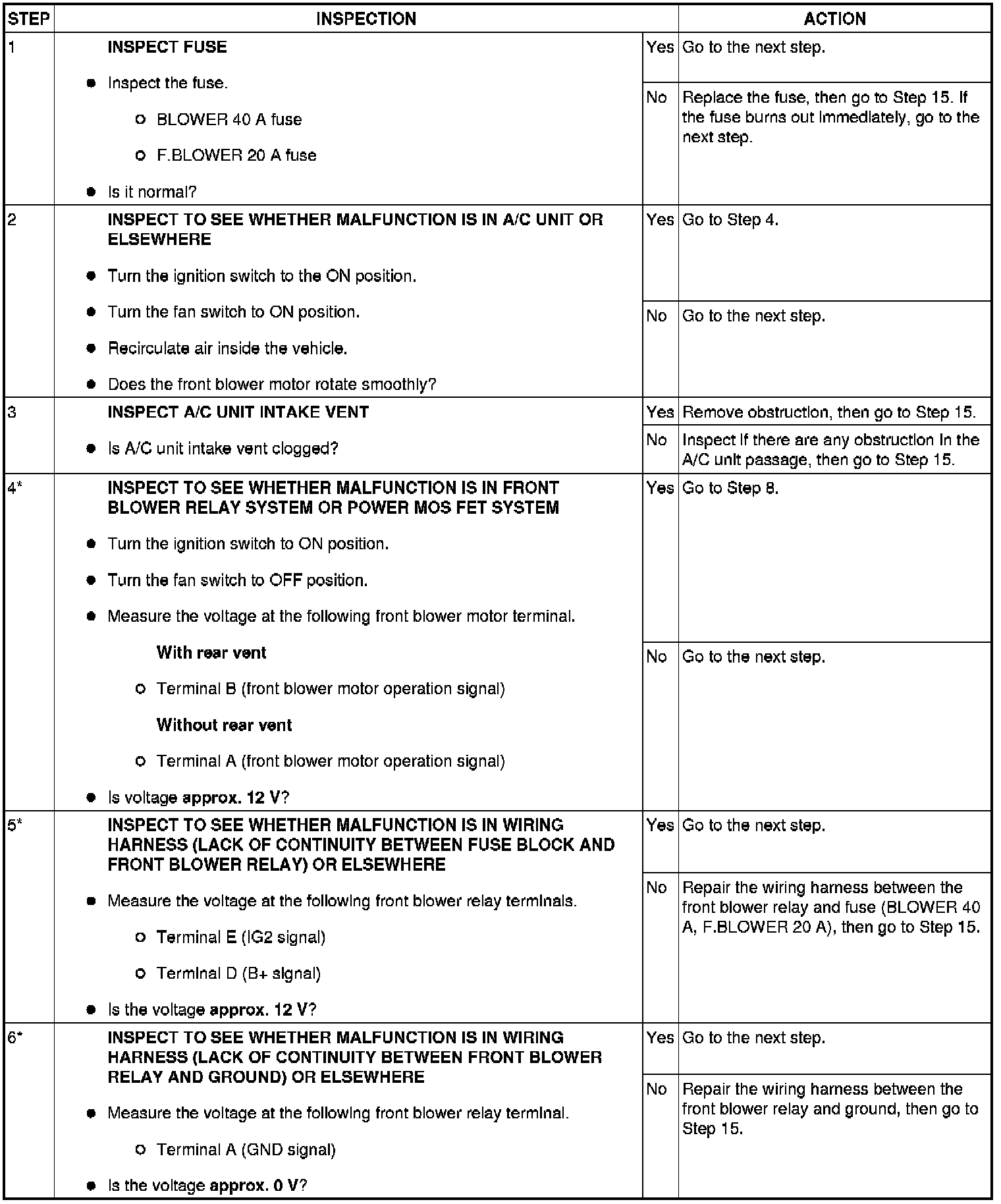

Step 1-Step 6:

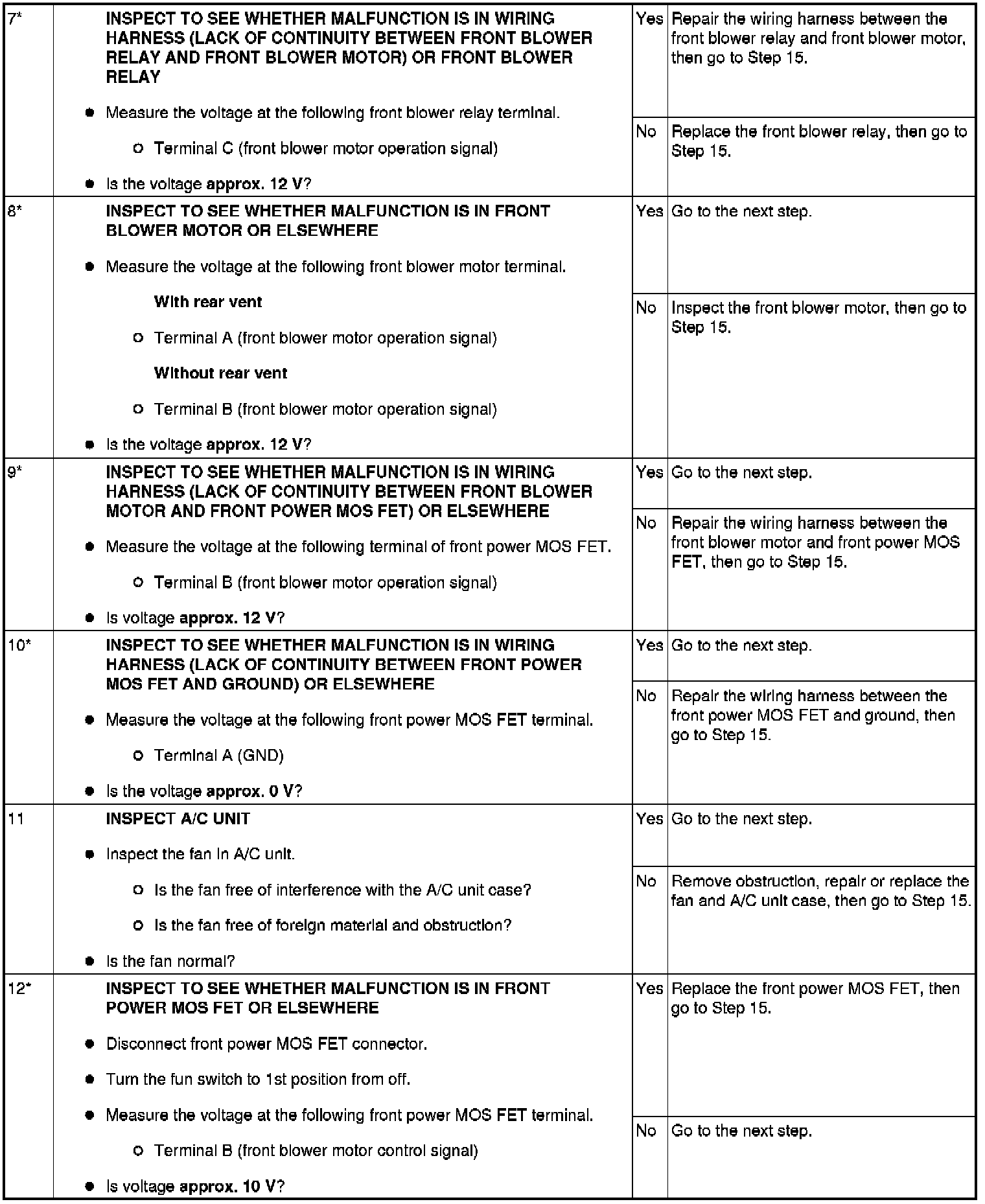

Step 7-Step 12:

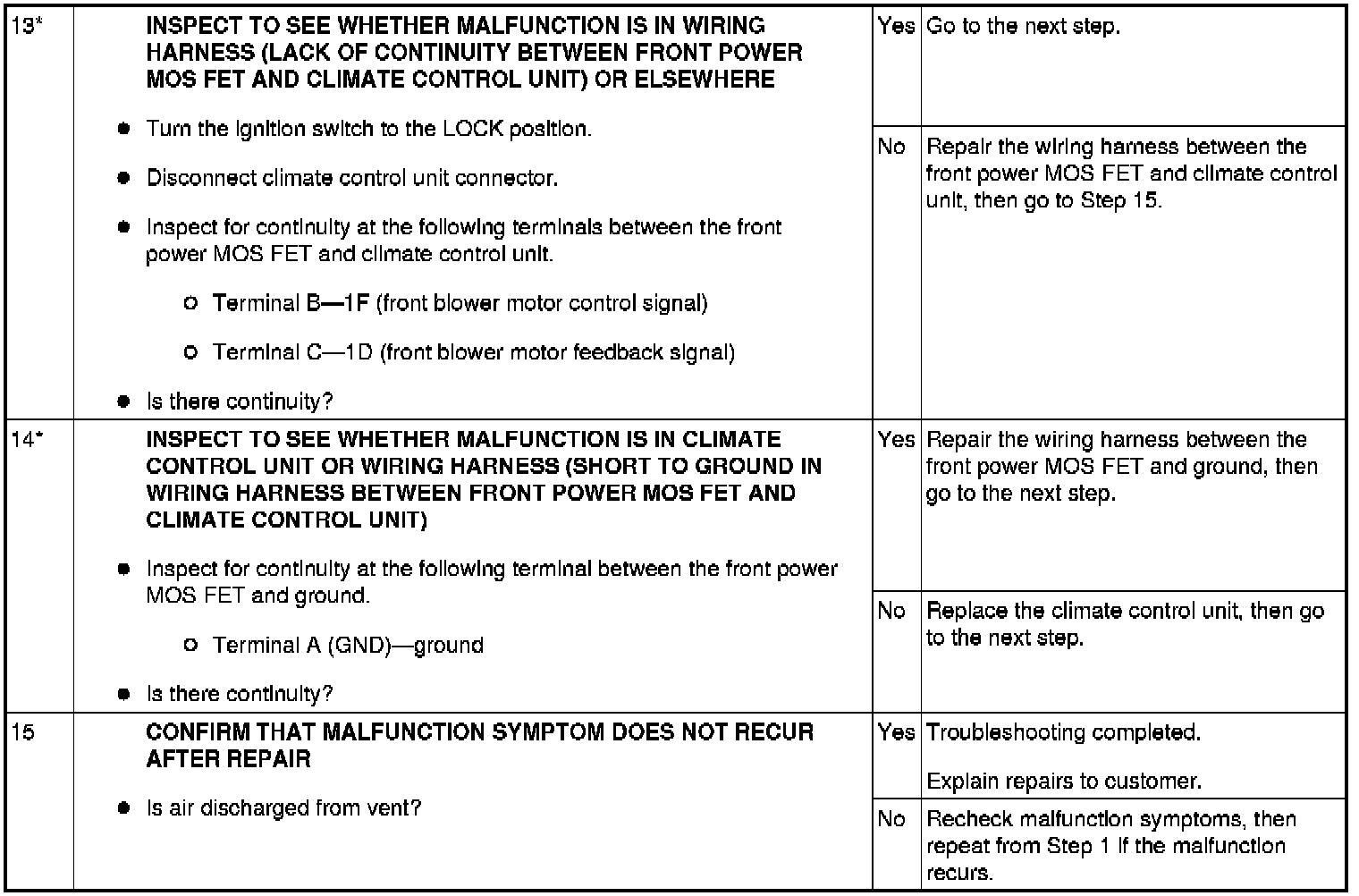

Step 13-Step 15:
