Exhaust Manifold: Specifications

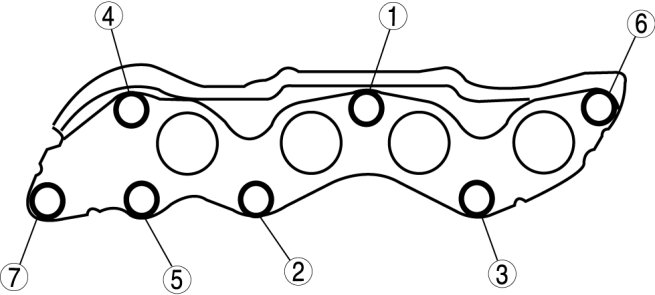

Tighten the exhaust manifold installation nuts in the order shown in the figure.
