No.4 Both ABS and Brake Warning Lights Stay on 4 S or More When the Ignition Switch Is Turned to the on Position




NO.4 BOTH ABS WARNING LIGHT AND BRAKE SYSTEM WARNING LIGHT STAY ON 4 S OR MORE WHEN THE IGNITION SWITCH IS TURNED TO THE ON POSITION [ABS]

Possible Cause:

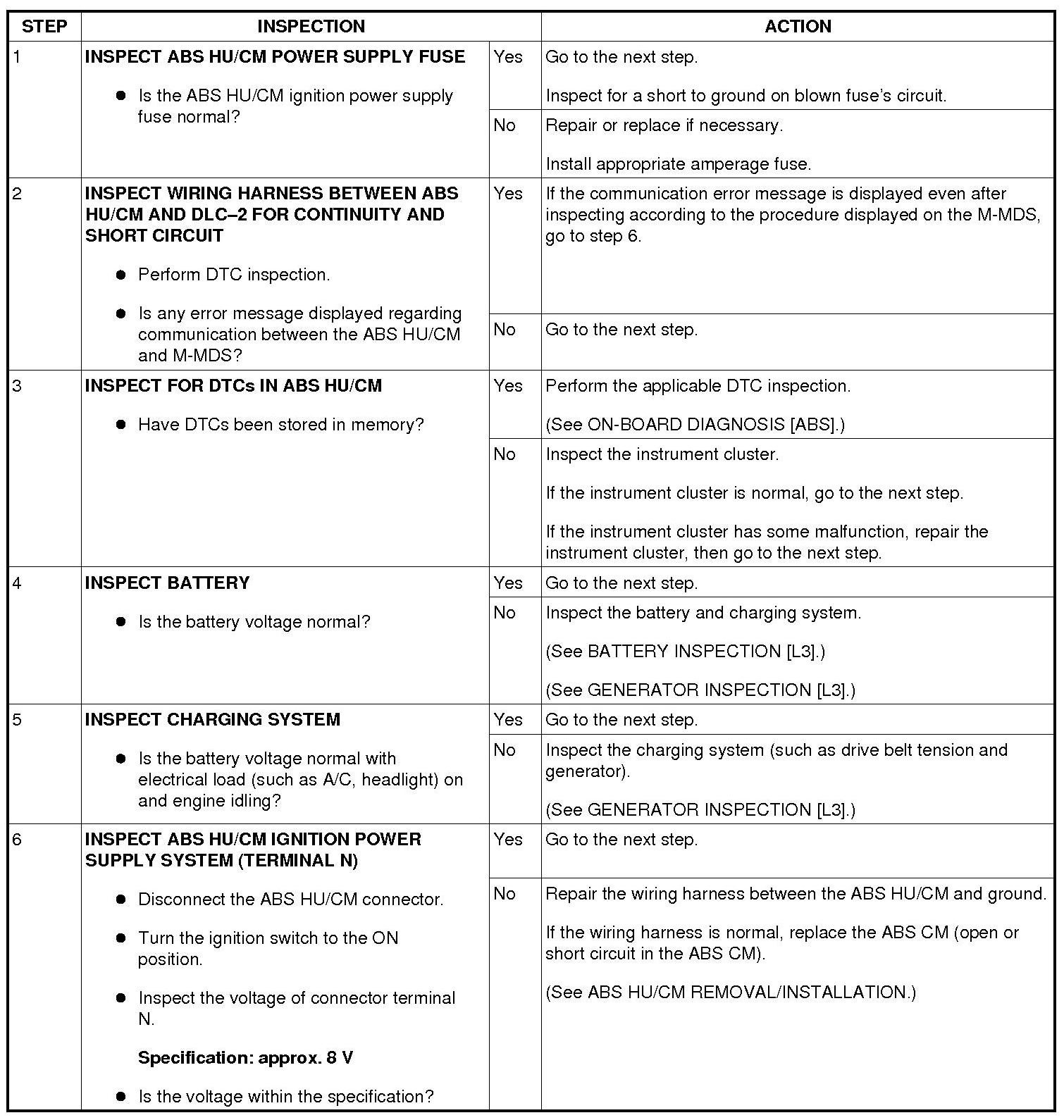

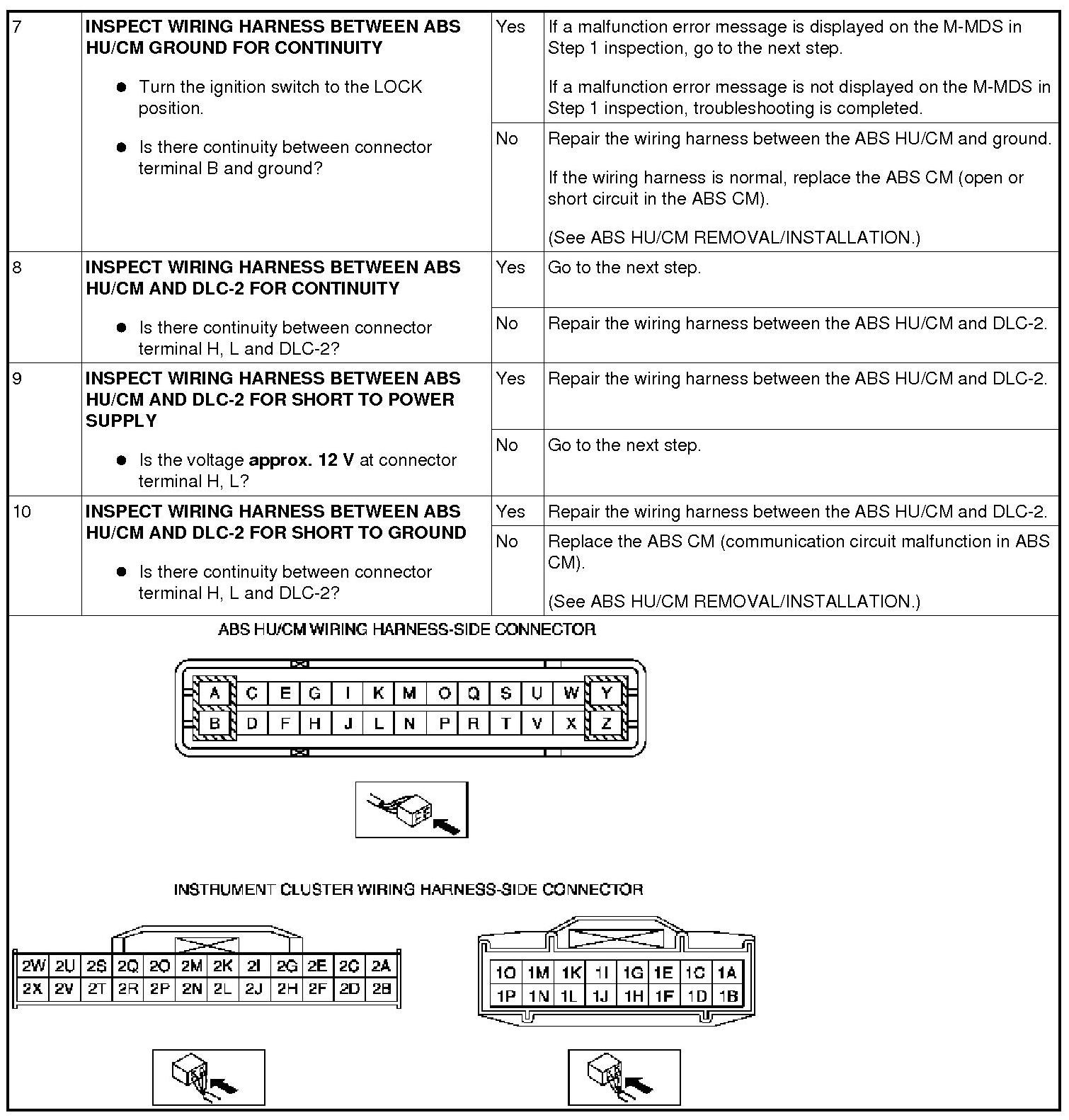

Diagnostic procedure
