Home >> Mazda >> 2010 >> 5 L4-2.3L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Entire Audio System >> No.8 Audio System Illumination Does Not Illuminate At All - Entire Audio System

No.8 Audio System Illumination Does Not Illuminate At All - Entire Audio System




NO.8 AUDIO SYSTEM ILLUMINATION DOES NOT ILLUMINATE AT ALL [ENTIRE AUDIO SYSTEM]

Possible Cause:

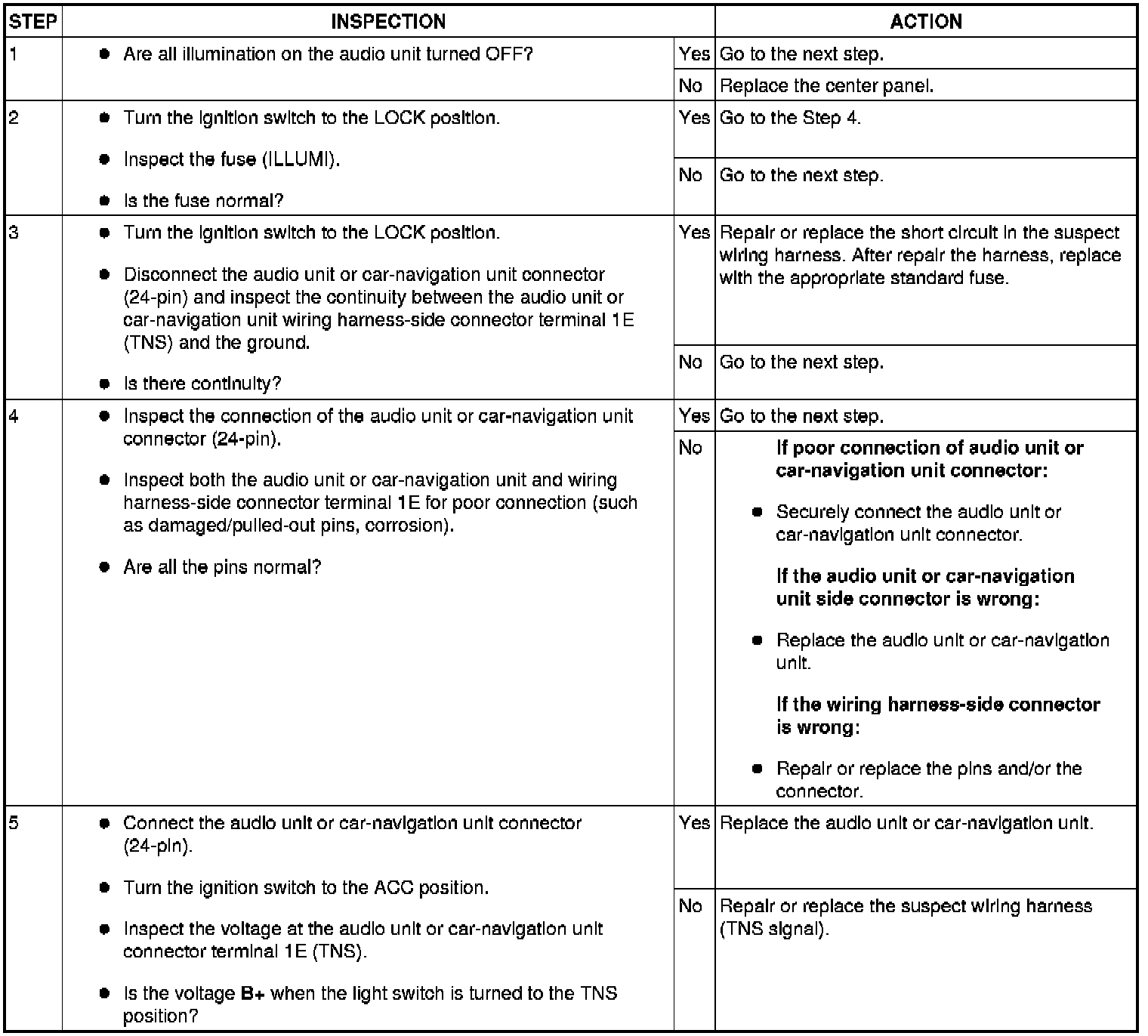

Diagnostic procedure

Step 1-Step 5:





*:Without car-navigation system
