No.4 No Sound From Certain Speaker - Entire Audio System




NO.4 NO SOUND FROM CERTAIN SPEAKER [ENTIRE AUDIO SYSTEM]

Possible Cause:

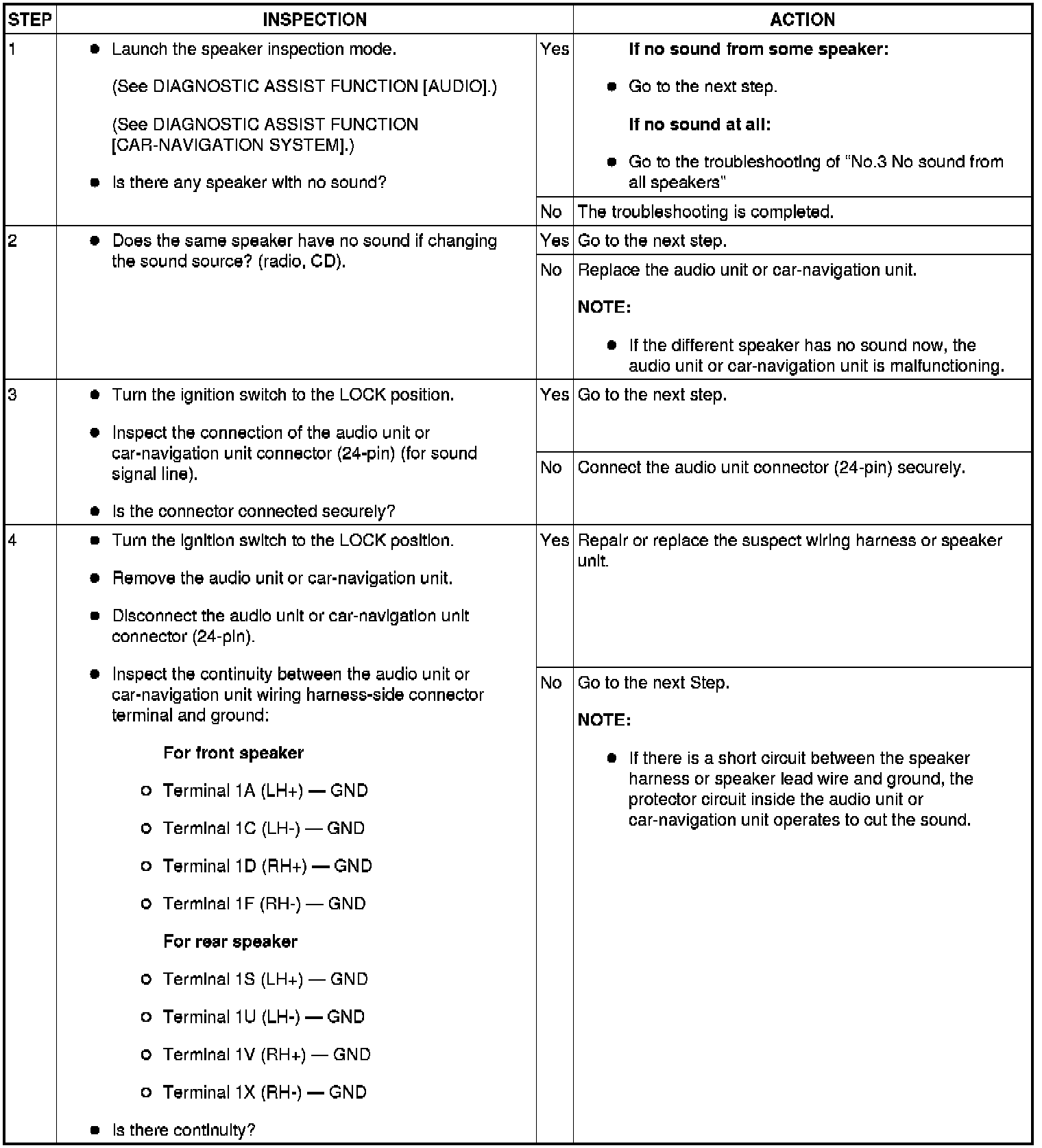

Diagnostic procedure

Step 1-Step 4:





Step 5-Step 6:
