Rear Speaker Removal/Installation

REAR SPEAKER REMOVAL/INSTALLATION

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable.

3. Remove the following parts:
a. Rear package tray lid Service and Repair

b. Sub-trunk Service and Repair

c. Third-row seat Third-Row Seat Removal/Installation

d. Rear scuff plate Rear Scuff Plate Removal/Installation

e. Trunk end trim Trunk End Trim Removal/Installation

f. Third-row seat belt lower anchor installation bolt Third-Row Seat Belt Removal/Installation

g. Cargo compartment light Service and Repair

h. Trunk side trim

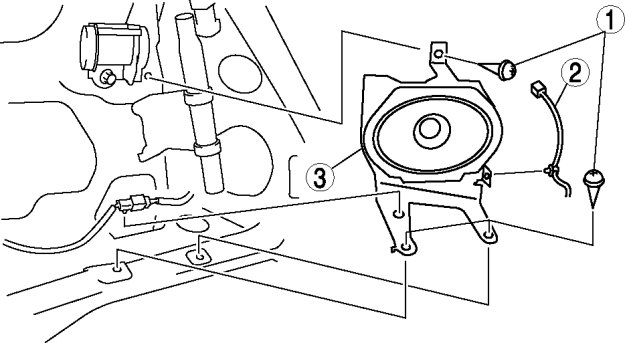

4. Remove in the order indicated in the table.










5. Install in the reverse order of removal.
