DTC P0122 [L3]

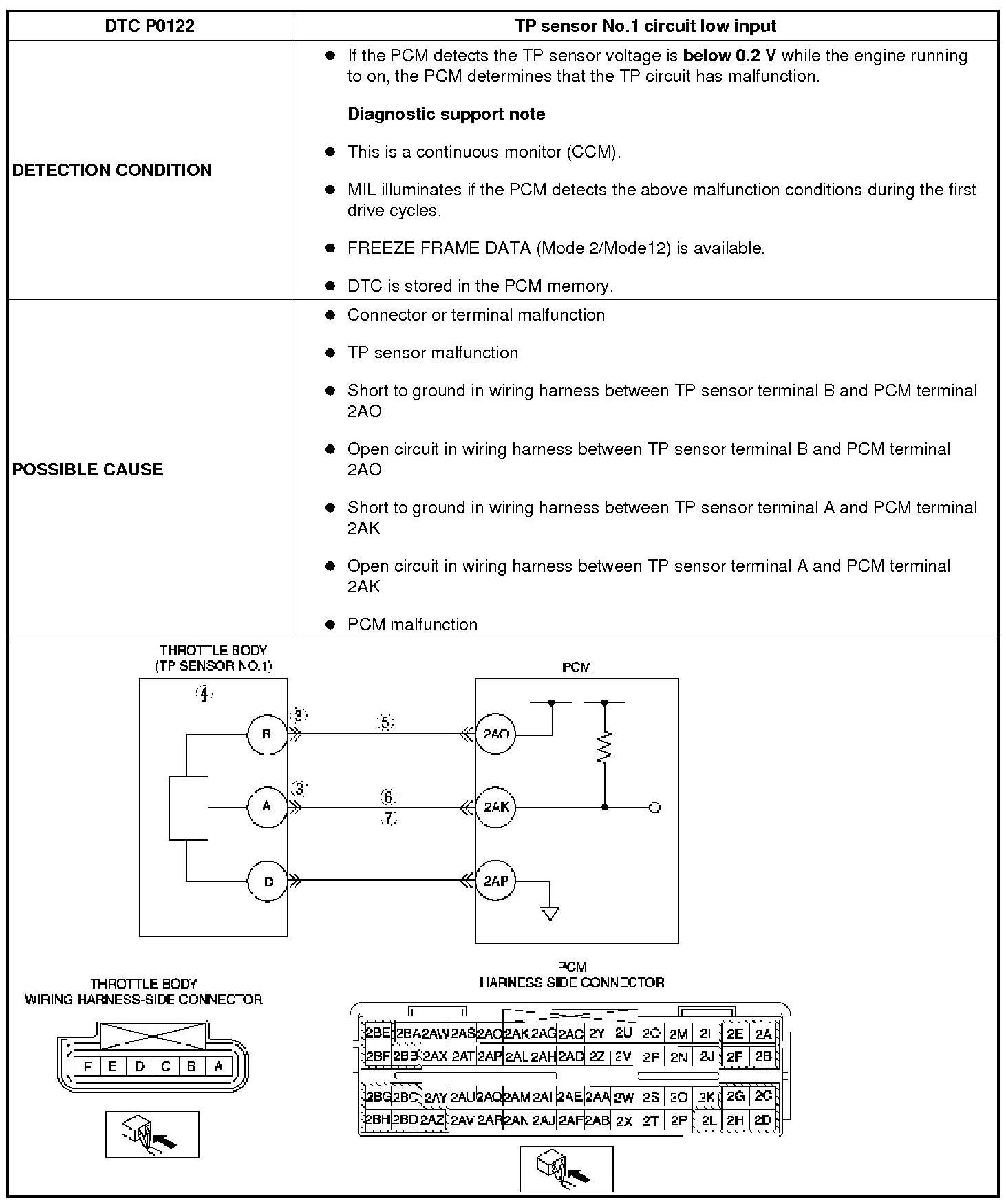

Detection Condition/Possible Cause:
Diagnostic procedure

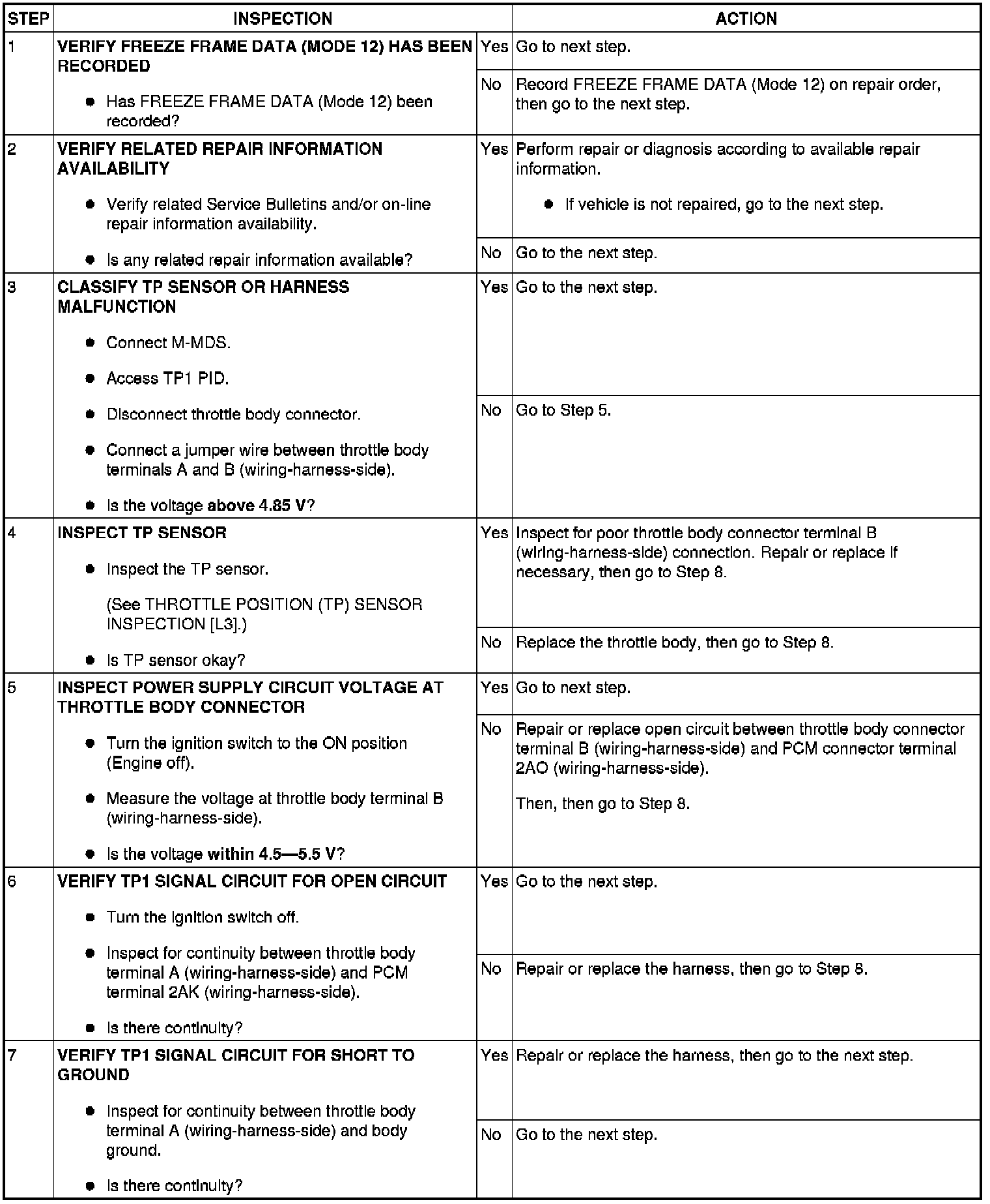

Step 1-Step 7:
Step 8-Step 9:
