DTC Table [Multiplex Communication System]

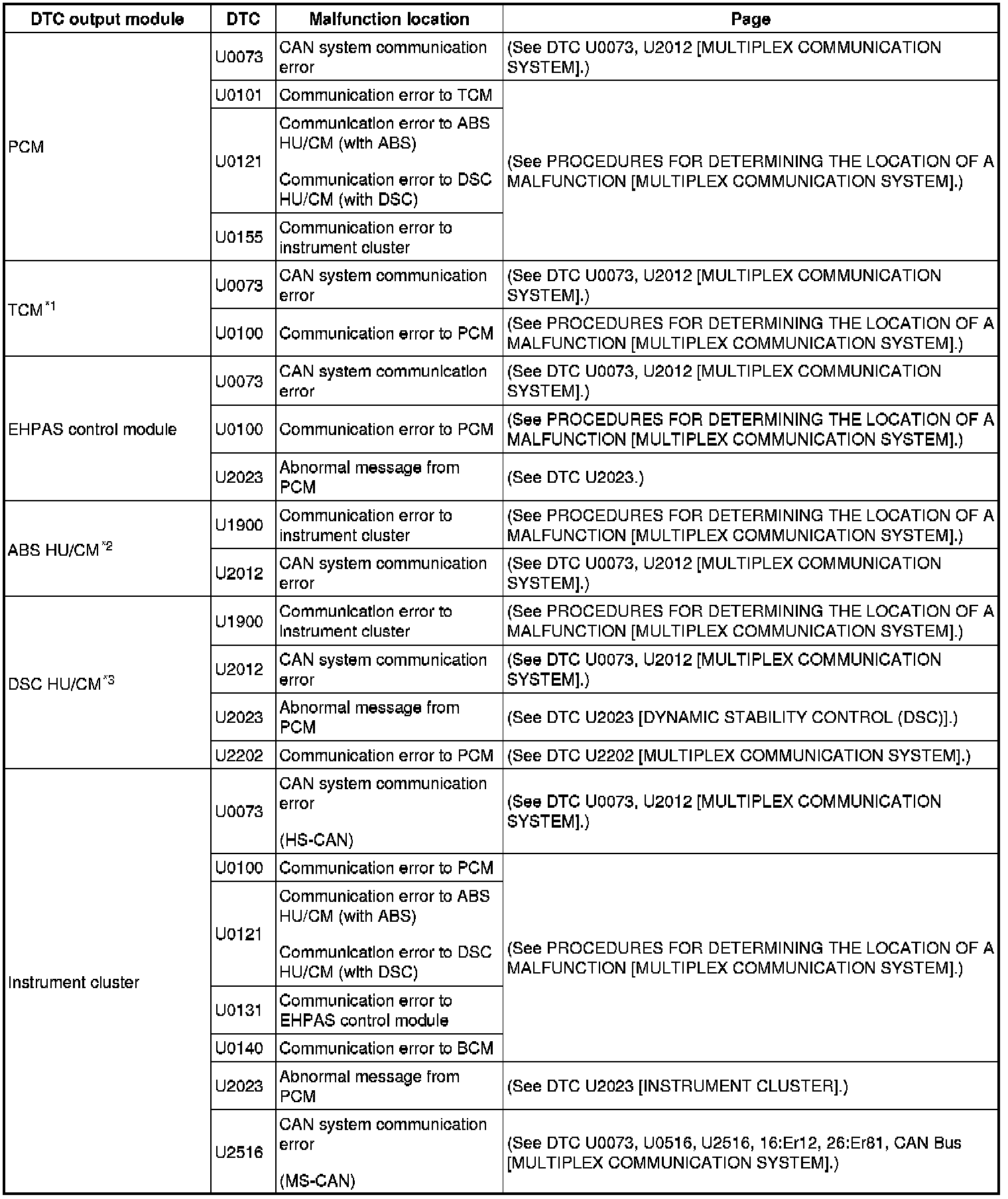

DTC TABLE [MULTIPLEX COMMUNICATION SYSTEM]

U0073-U2516:





U0164-U0166:





*1
ATX
*2
With ABS
*3
With DSC
*4
With full-auto air conditioner
*5
With audio unit
*6
With car-navigation unit
