Connector Locations

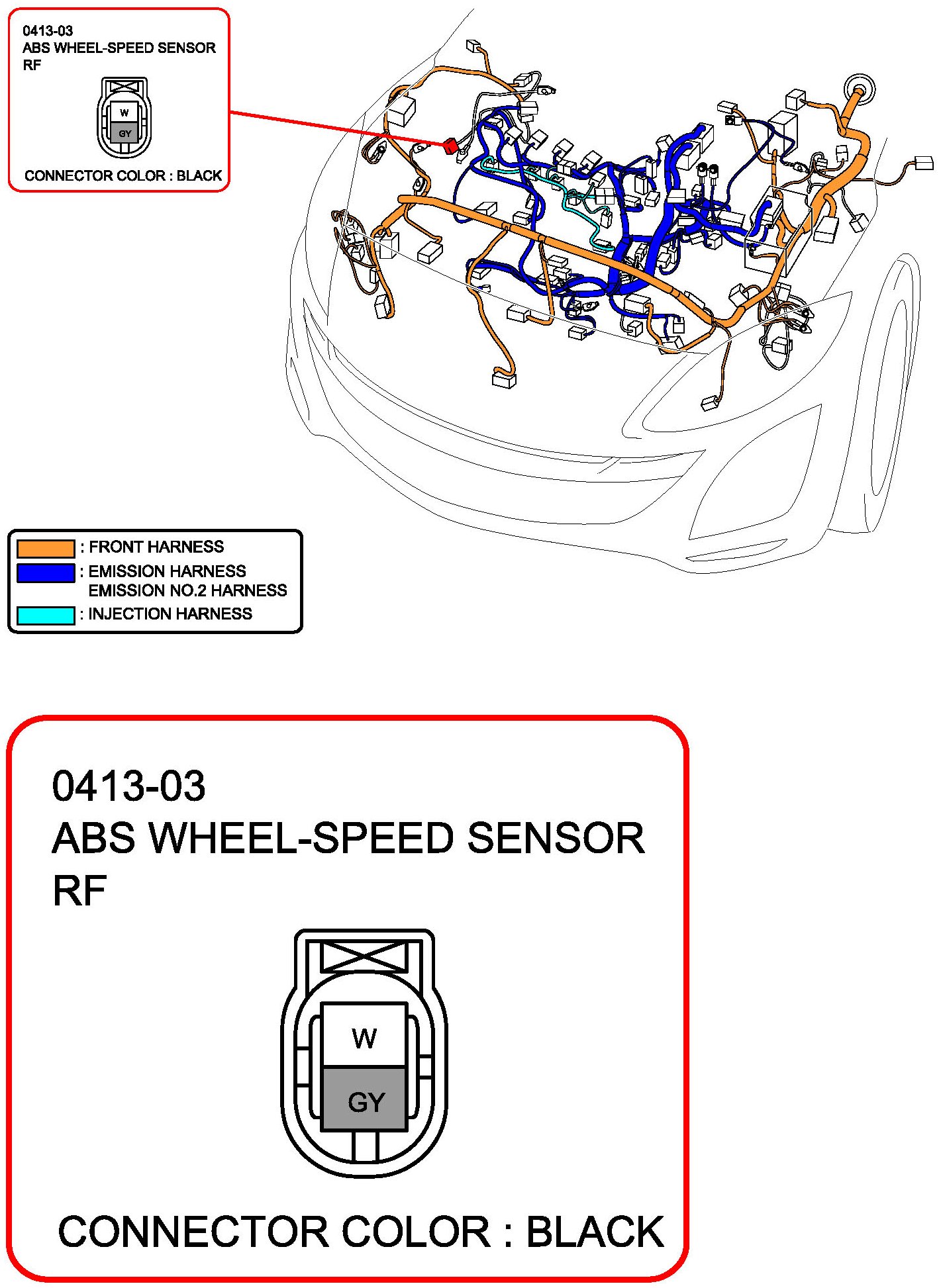

ABS Wheel-Speed Sensor RF:

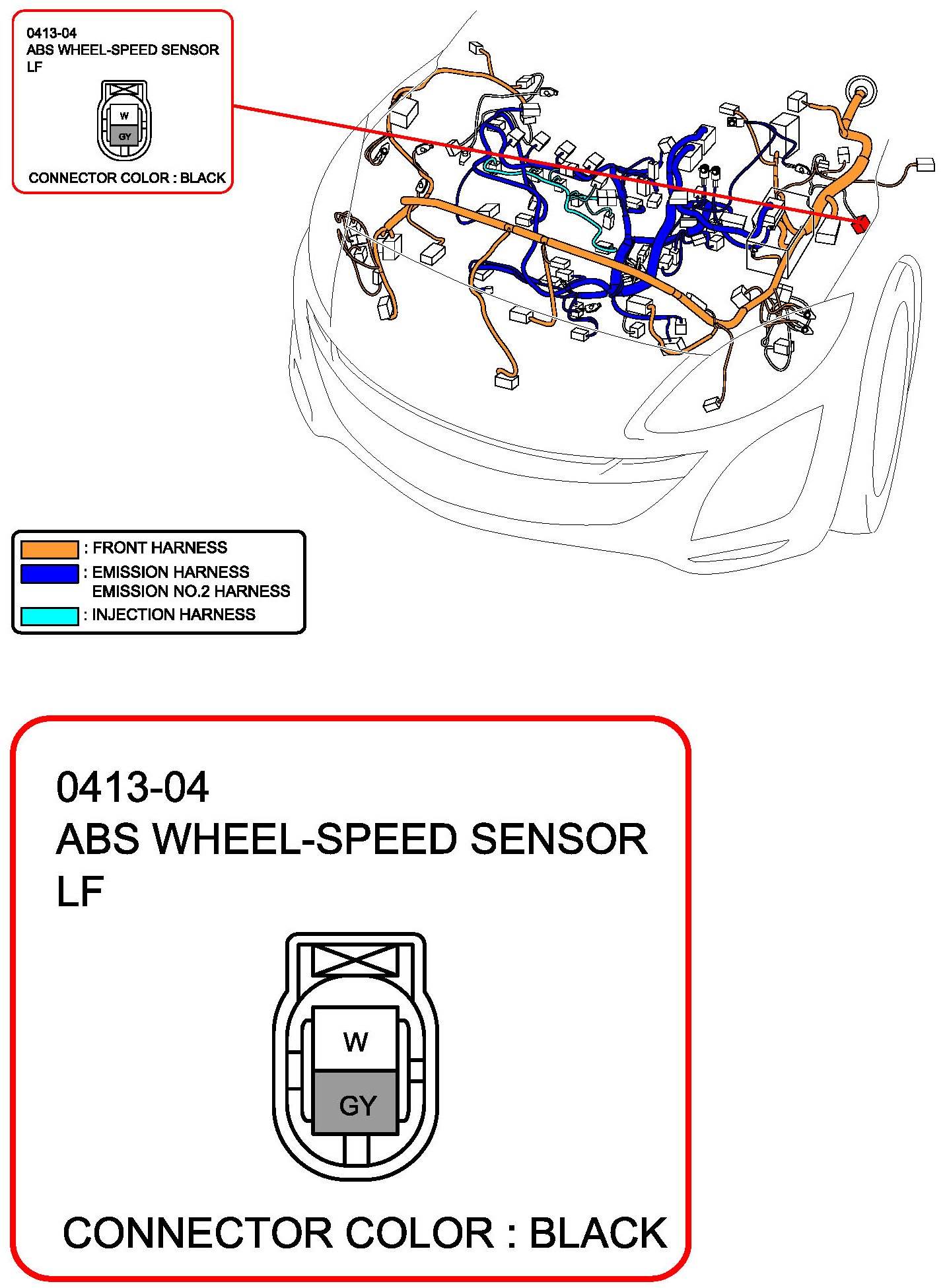

ABS Wheel-Speed Sensor LF:

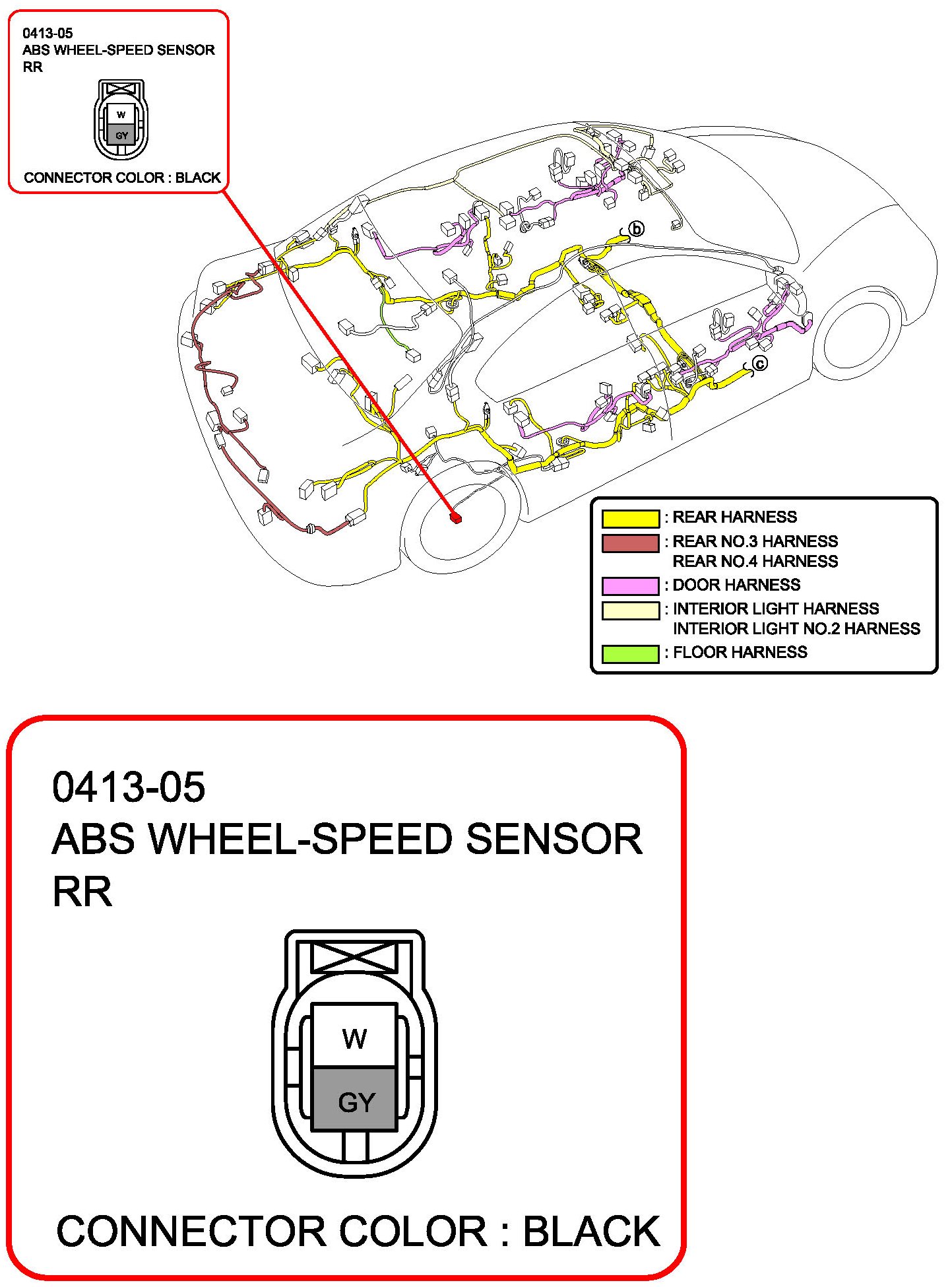

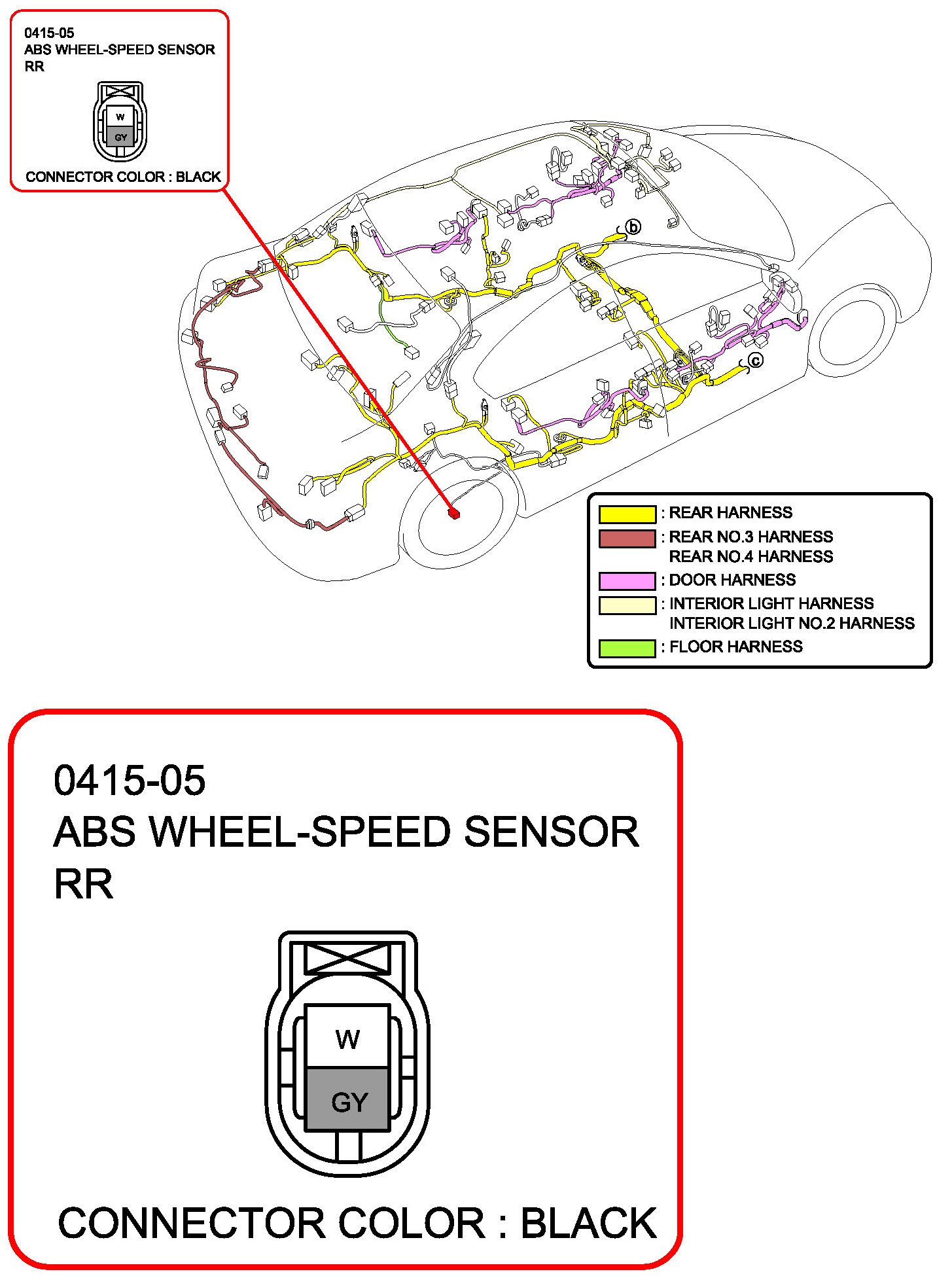

ABS Wheel-Speed Sensor RR:

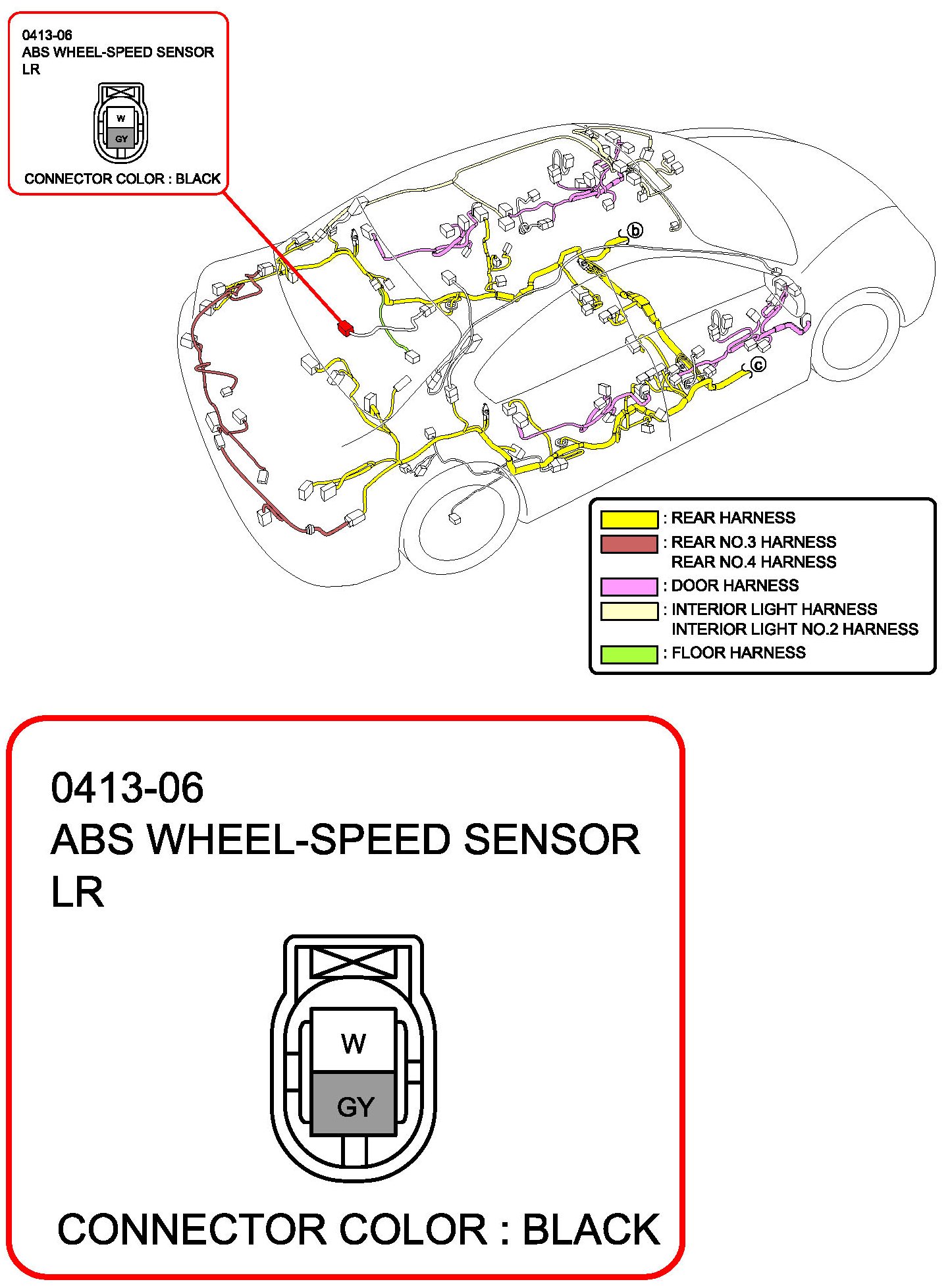

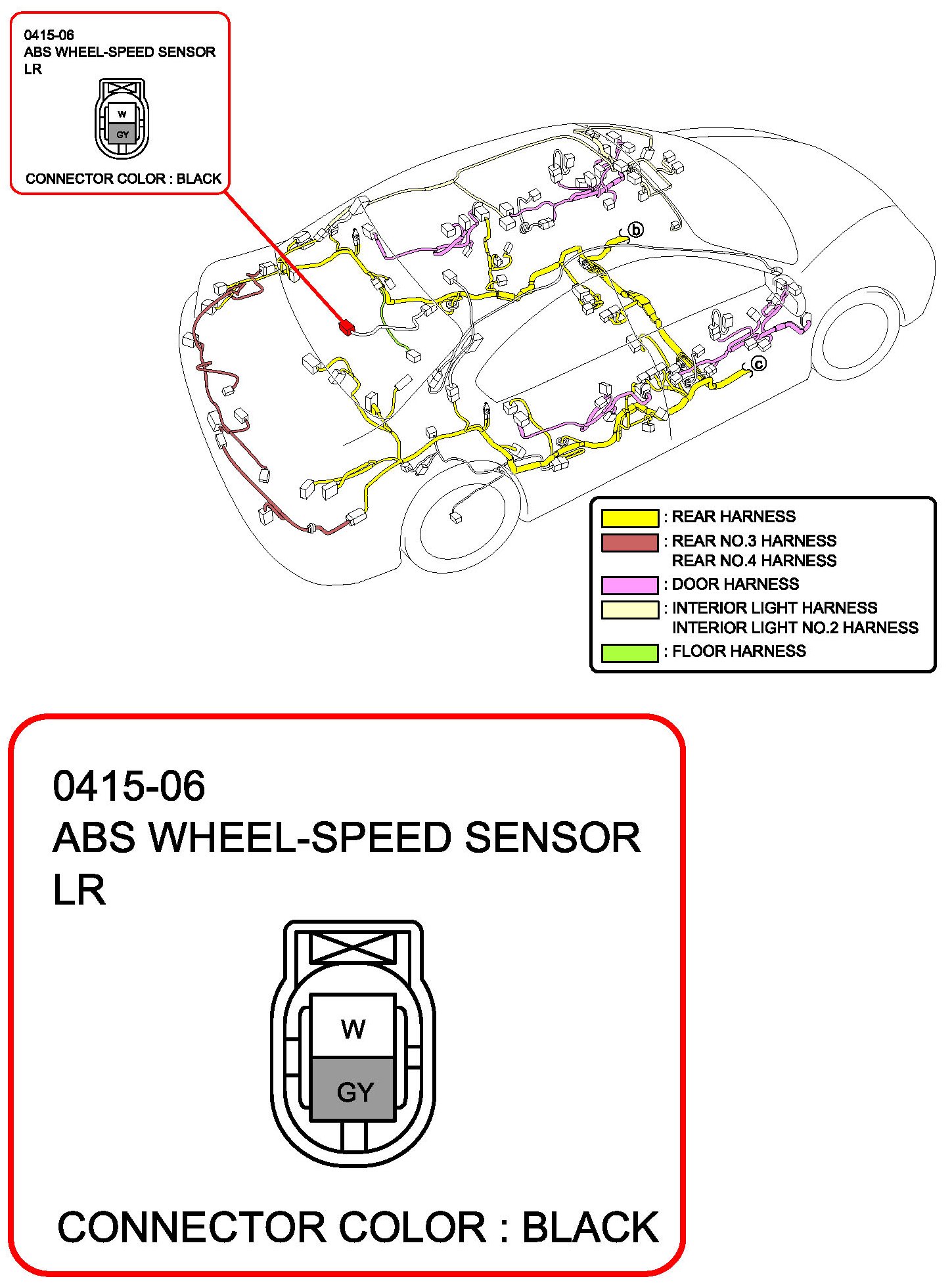

ABS Wheel-Speed Sensor LR:

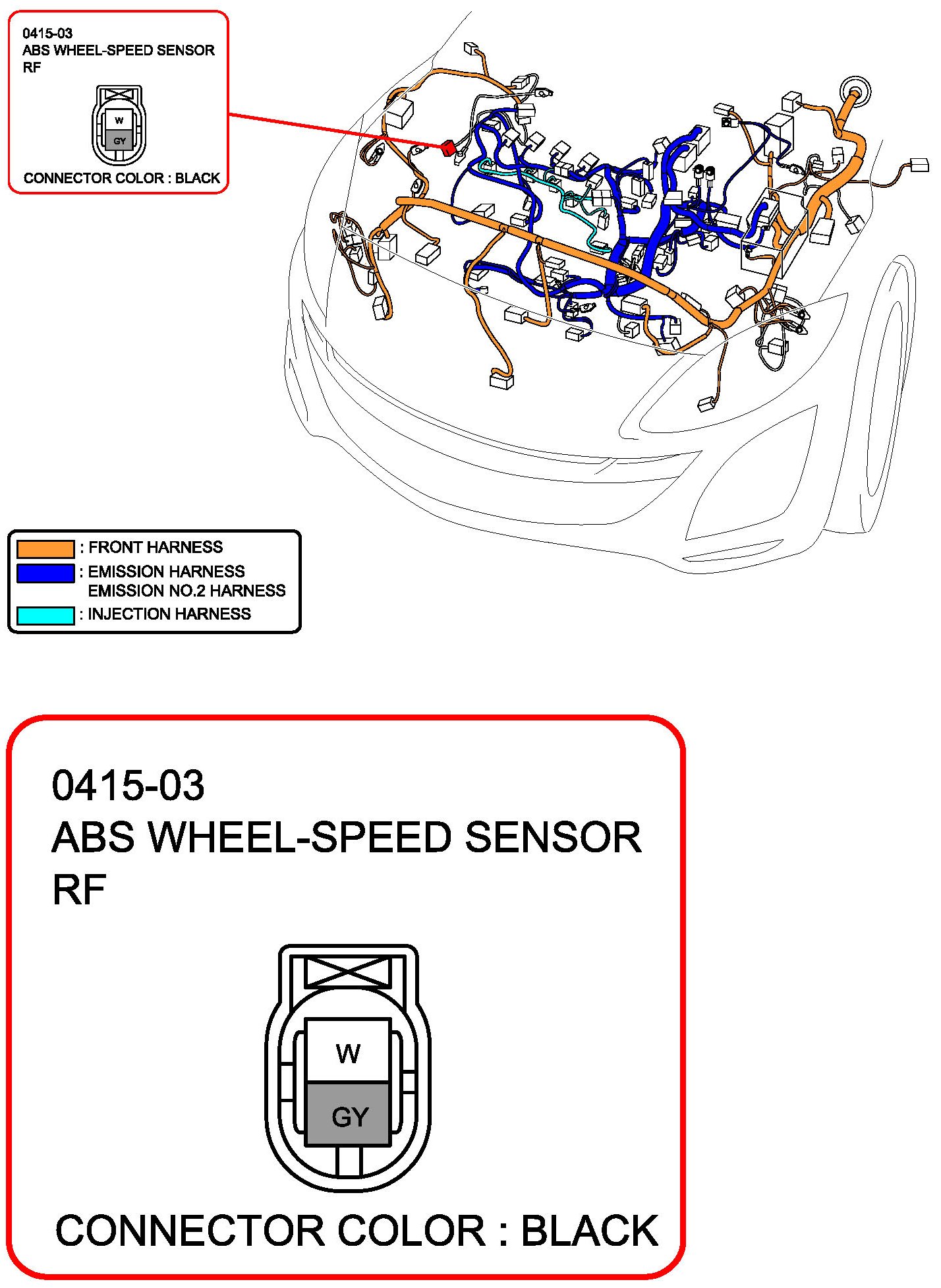

ABS Wheel-Speed Sensor RF:

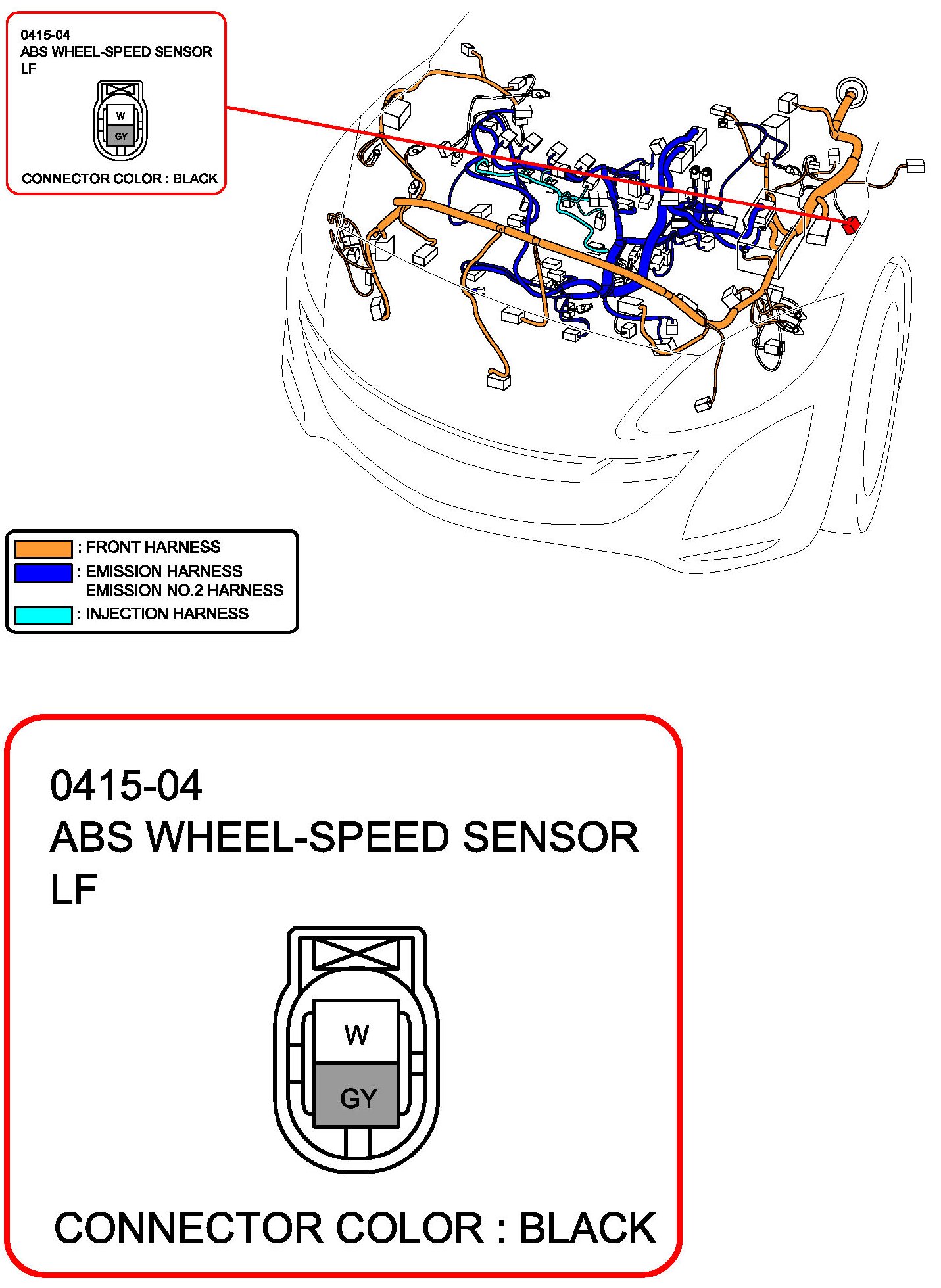

ABS Wheel-Speed Sensor LF:






ABS Wheel-Speed Sensor RR:






ABS Wheel-Speed Sensor LR:
