Seat Temperature Switch
>>
Locations
Seat Temperature Switch: Locations

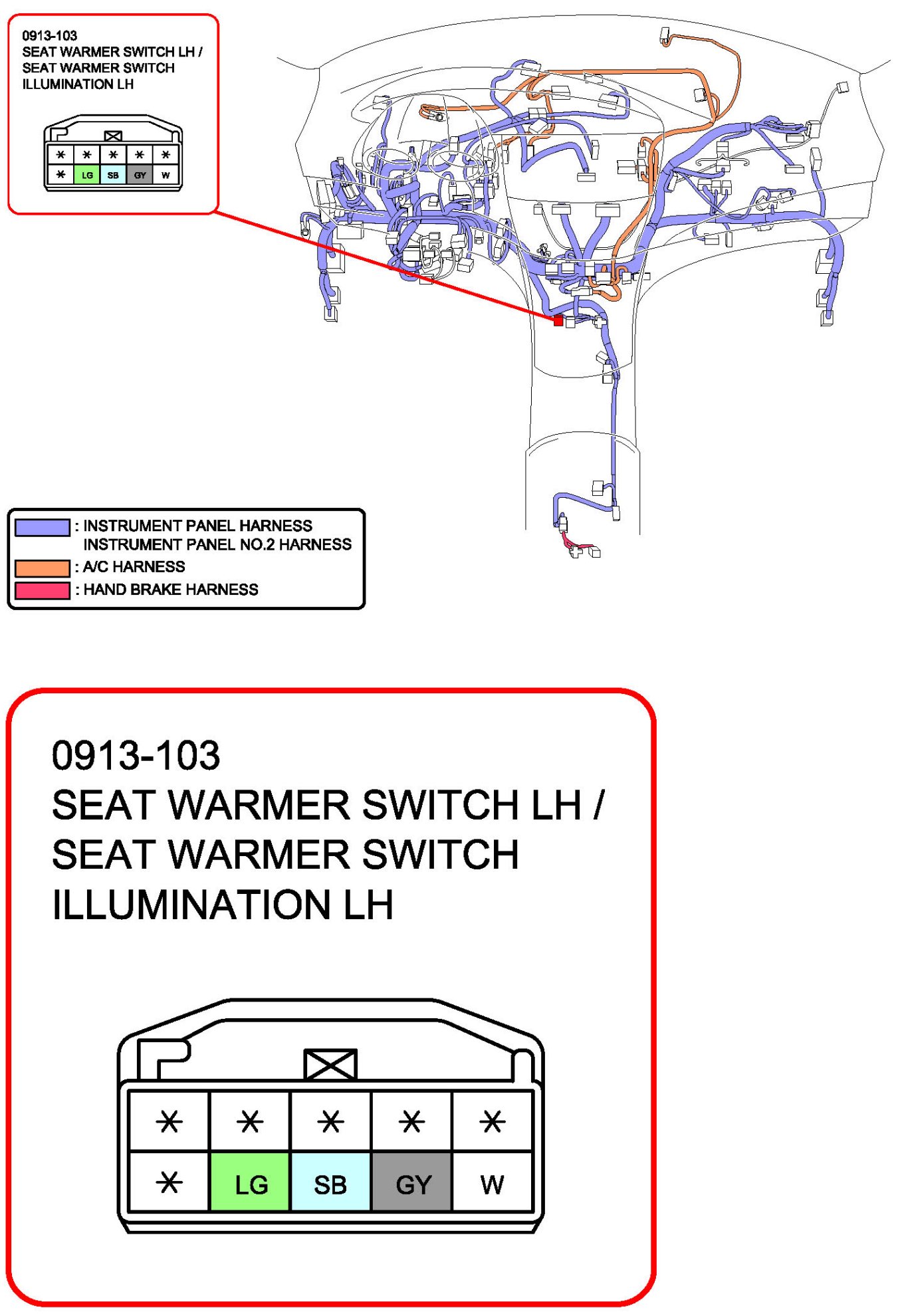

Seat Warmer Switch LH / Seat Warmer Switch Illumination LH:

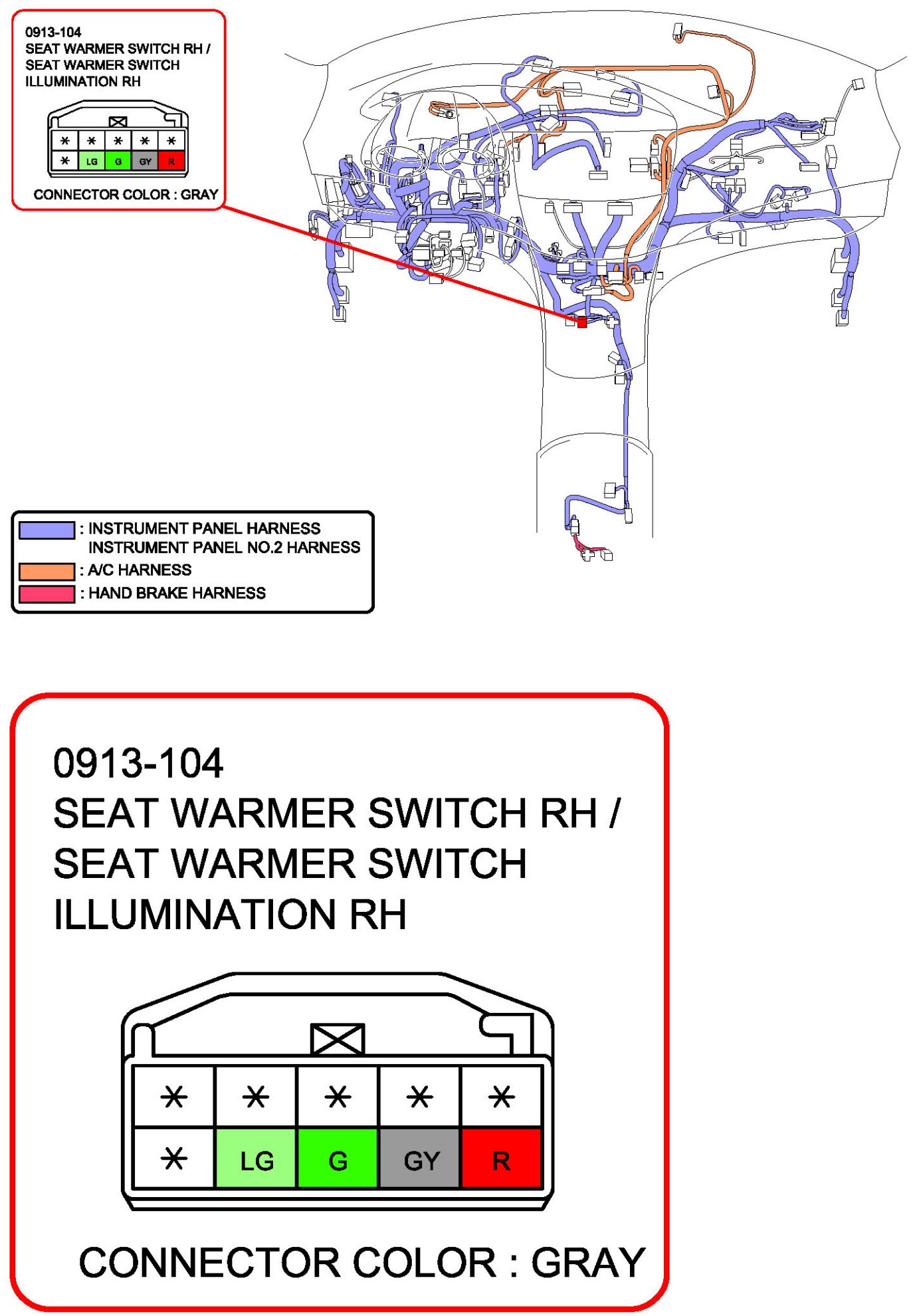

Seat Warmer Switch RH / Seat Warmer Switch Illumination RH:
