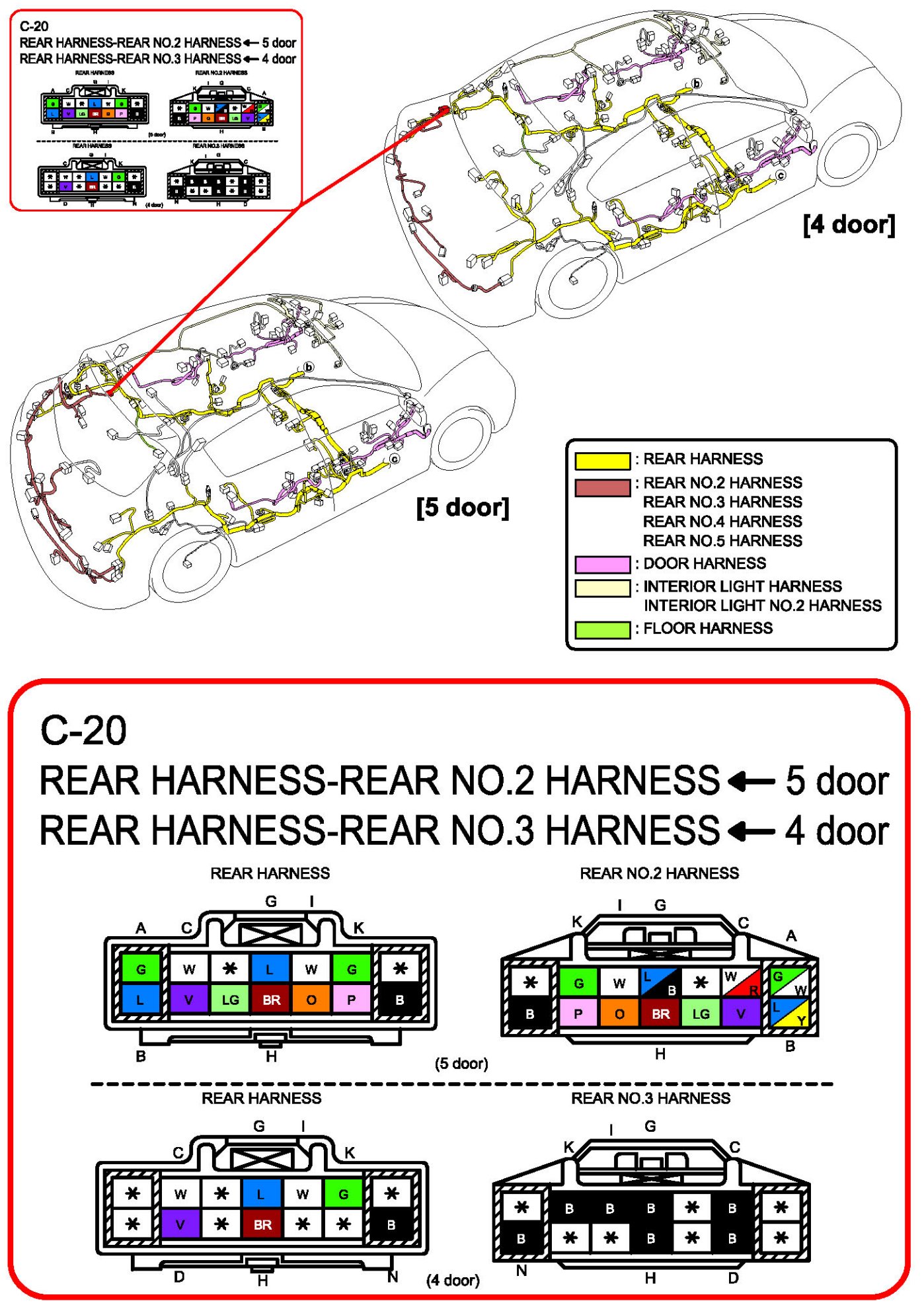

C-20 (Rear Harness-Rear No.2 Harness - 5 Door / Rear Harness-Rear No.3 Harness - 4 Door)
C-20 (Rear Harness-Rear No.2 Harness - 5 Door / Rear Harness-Rear No.3 Harness - 4 Door)
C-20 (Rear Harness-Rear No.2 Harness - 5 Door / Rear Harness-Rear No.3 Harness - 4 Door):
