No. 9 High Engine Coolant Temperature Warning Light Illuminates Or Flashes Continuously - Instrument Cluster




NO. 9 HIGH ENGINE COOLANT TEMPERATURE WARNING LIGHT ILLUMINATES OR FLASHES CONTINUOUSLY [INSTRUMENT CLUSTER]

Possible Cause:





Diagnostic procedure

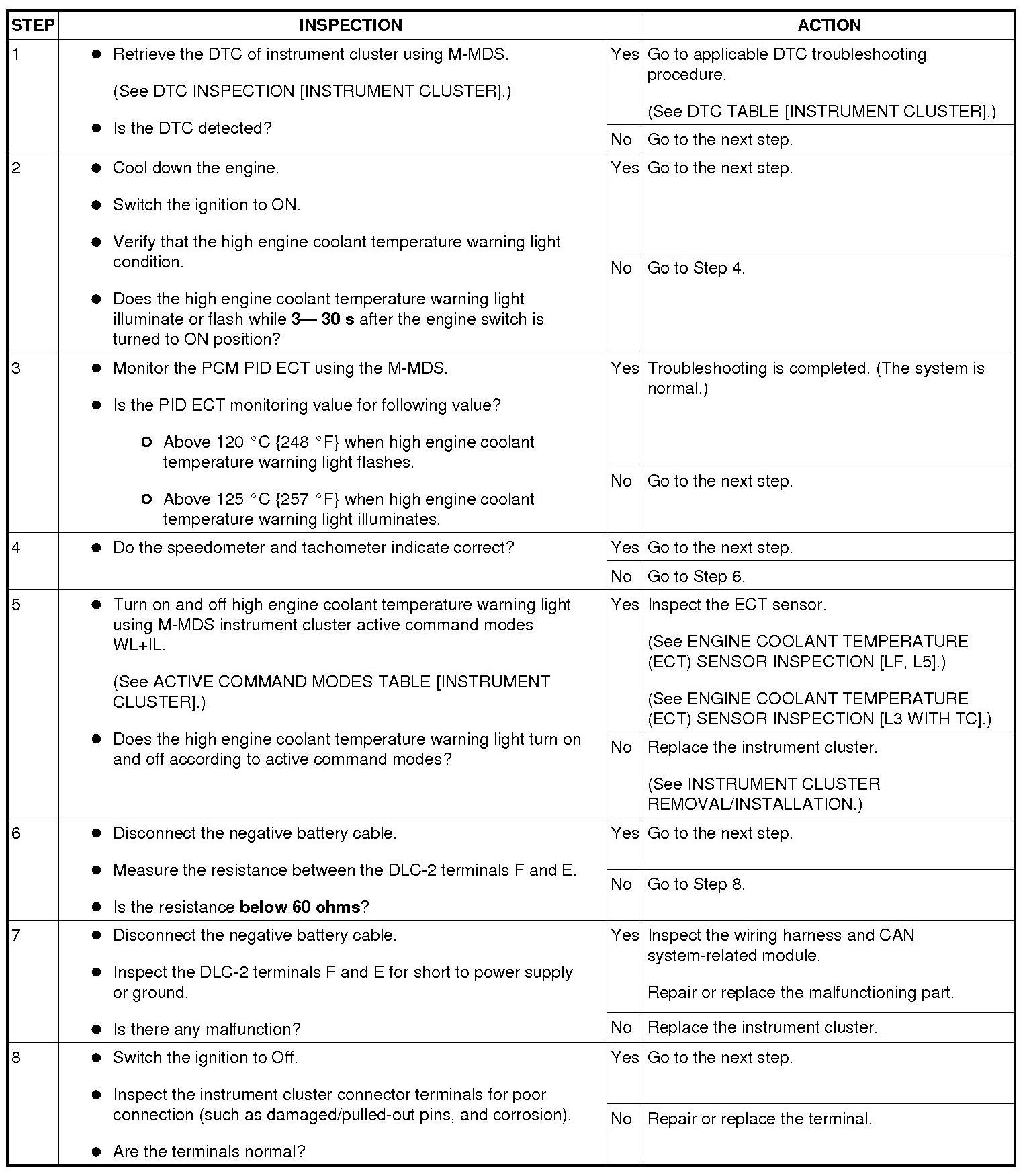

Step 1-Step 8:

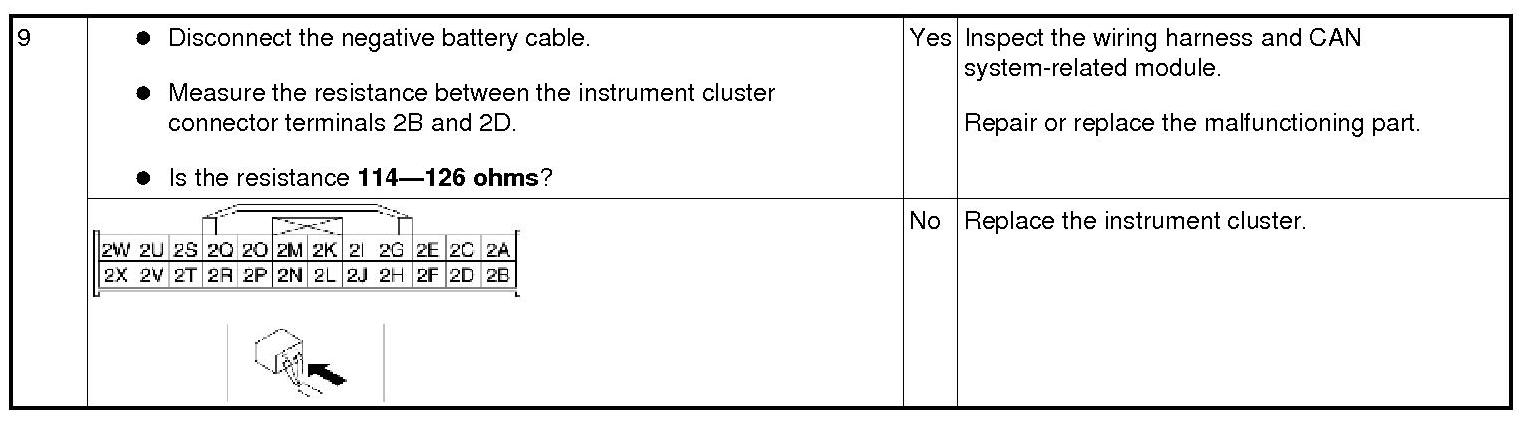

Step 9:
