No.2 Amount of Air Blown From Vents Does Not Change - Manual Air Conditioner




NO.2 AMOUNT OF AIR BLOWN FROM VENTS DOES NOT CHANGE [MANUAL AIR CONDITIONER]

Description/Possible Cause:





Diagnostic procedure

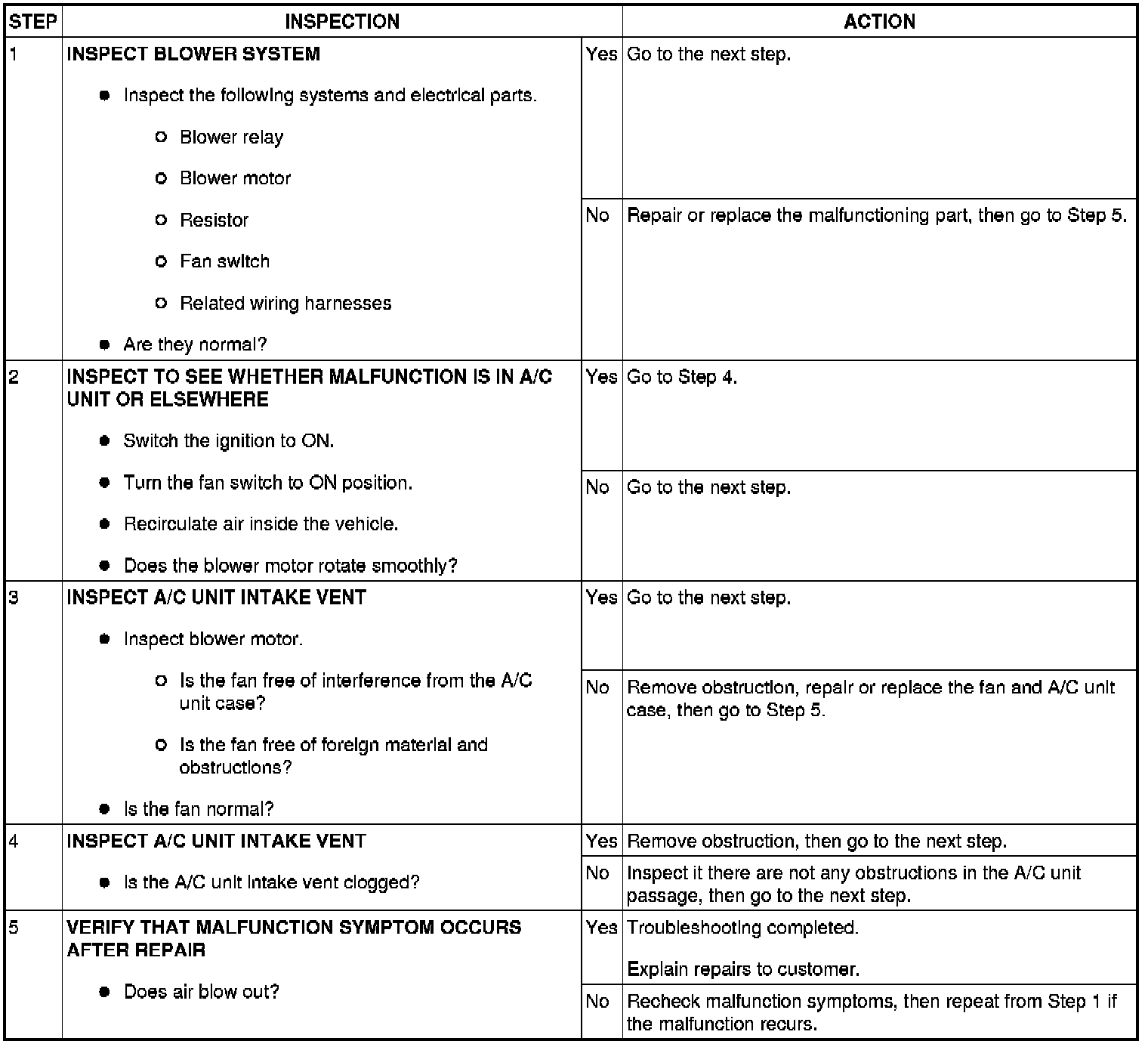

Step 1-Step 5:
