Antenna Feeder No.2 Inspection

ANTENNA FEEDER NO.2 INSPECTION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. A-pillar trim (RH) A-Pillar Trim Removal/Installation

b. Rear seat cushion (4SD) Rear Seat Cushion Removal/Installation

c. Rear scuff plate (RH) Rear Scuff Plate Removal/Installation

d. Tire house trim (RH) Tire House Trim Removal/Installation

e. Trunk side upper trim (5HB, RH)

f. Trunk side trim (5HB, RH)

g. C-pillar trim (RH) C-Pillar Trim Removal/Installation

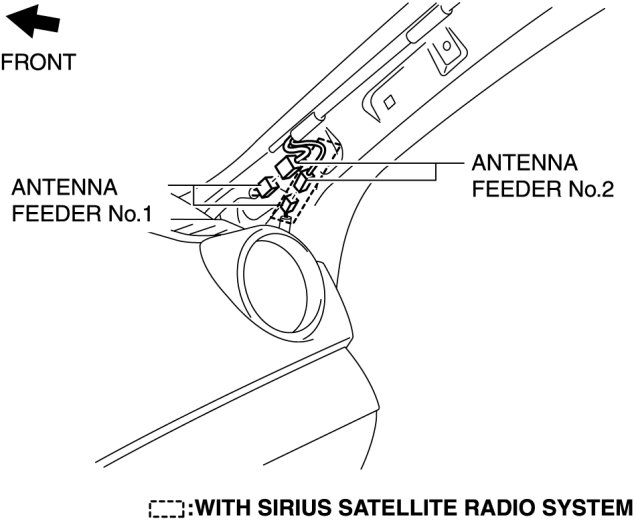

3. Disconnect the antenna feeder No.1.

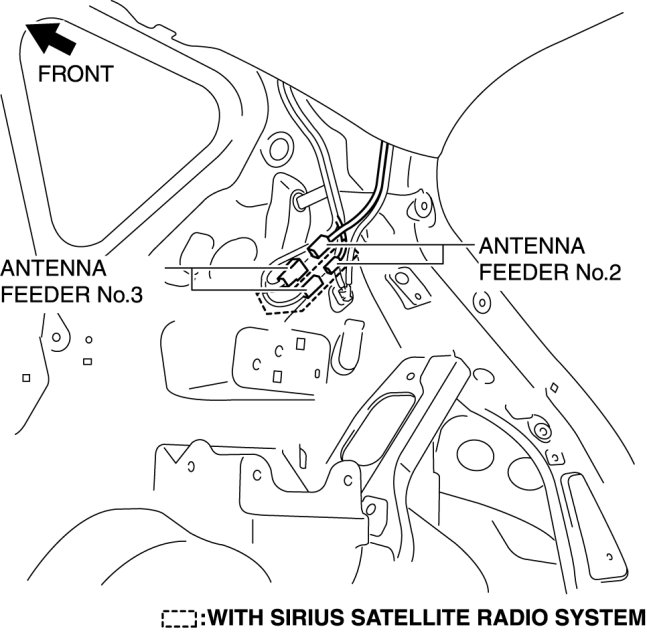

4. Disconnect the antenna feeder No.3.
4SD

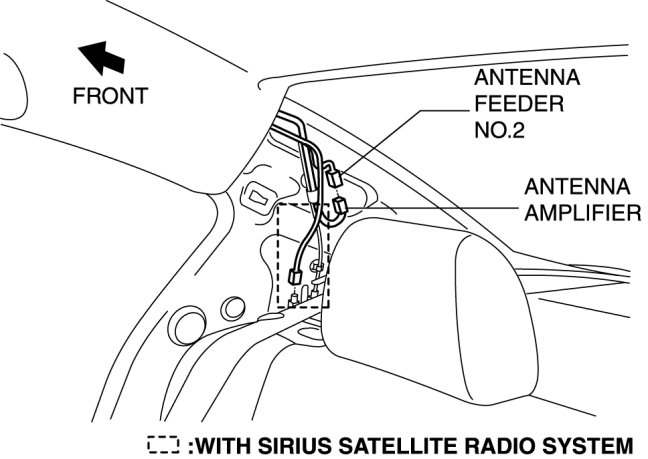

5HB

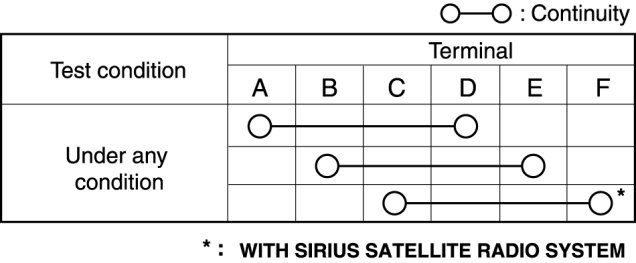

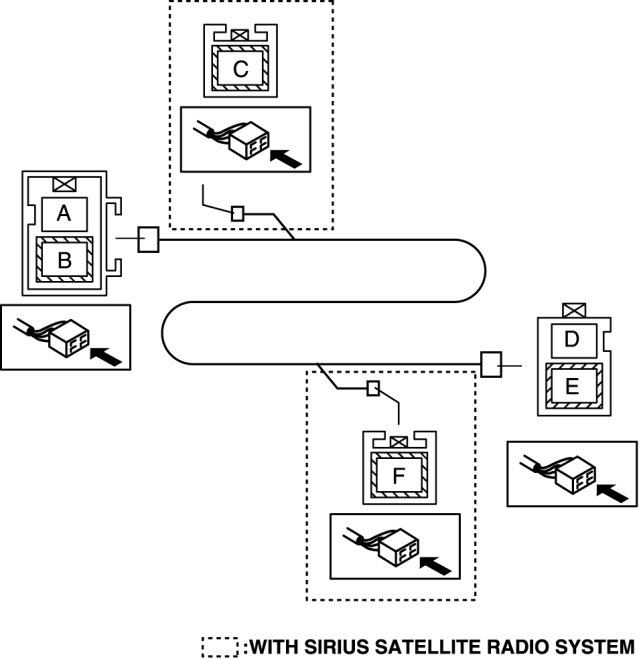

5. Verify that the continuity between antenna feeder No.2 terminals is as indicated in the table.






- If not as indicated in the table, replace antenna feeder No.2.
