Home >> Mazda >> 2010 >> 3 L4-2.0L >> Repair and Diagnosis >> Wiper and Washer Systems >> Wiper Switch >> Locations >> Connector Locations

Connector Locations

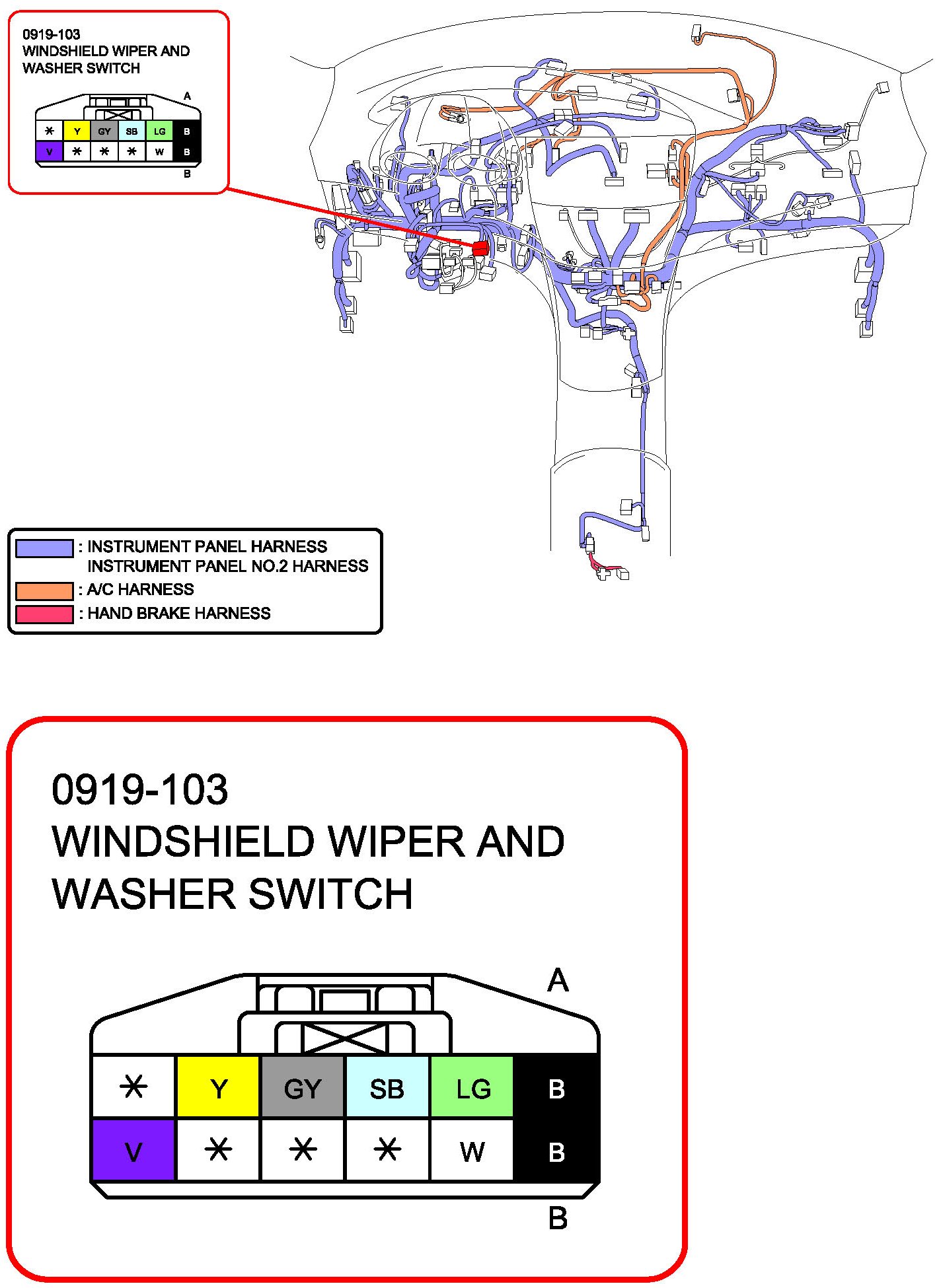

Windshield Wiper And Washer Switch:

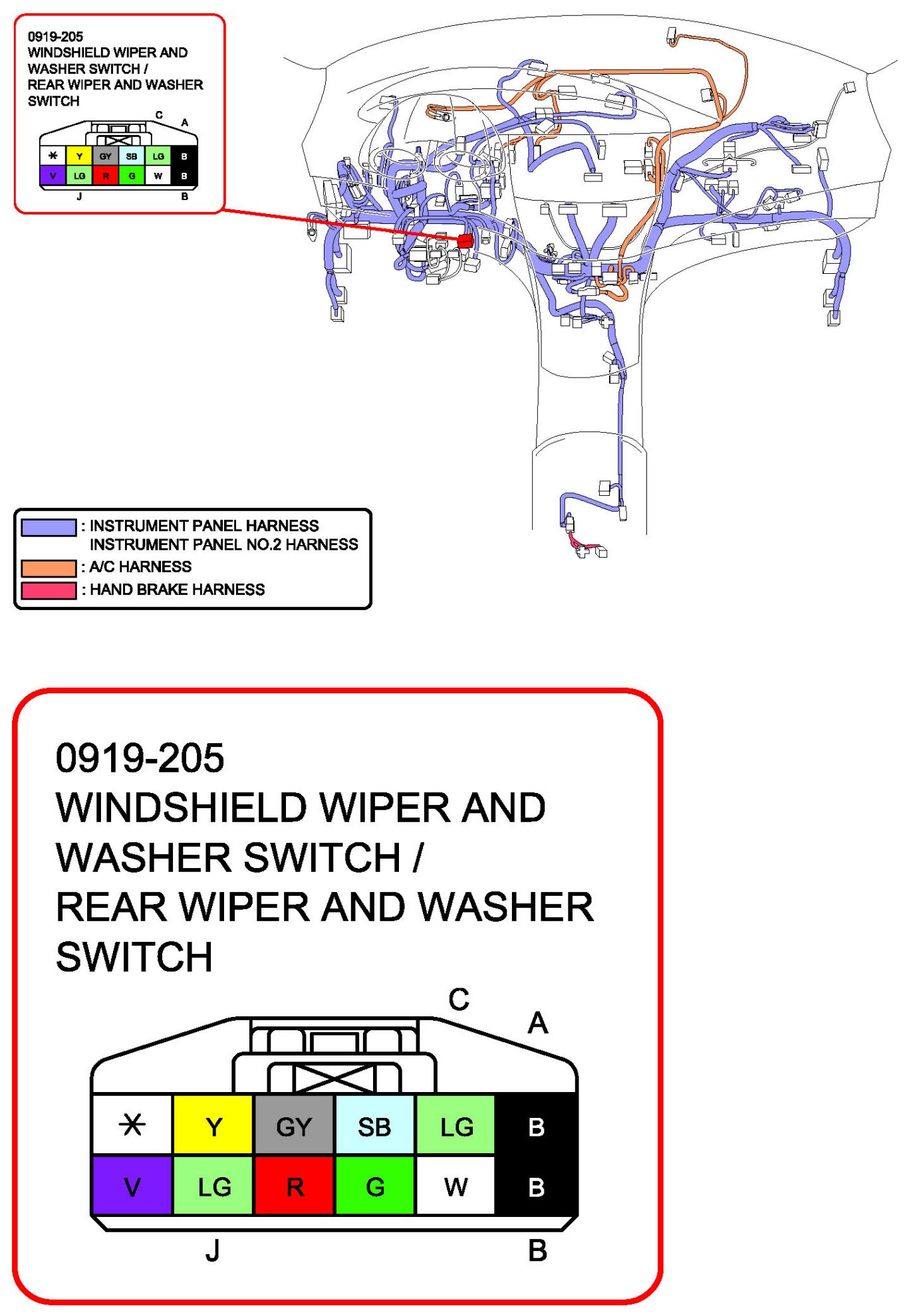

Windshield Wiper And Washer Switch / Rear Wiper And Washer Switch:
