No.20 Noise Occurs at Idle When Vehicle Is Stopped In All Positions/Ranges




NO.20 NOISE OCCURS AT IDLE WHEN VEHICLE IS STOPPED IN ALL POSITIONS/RANGES [FS5A-EL]

Description/Possible Cause:





Diagnostic procedure

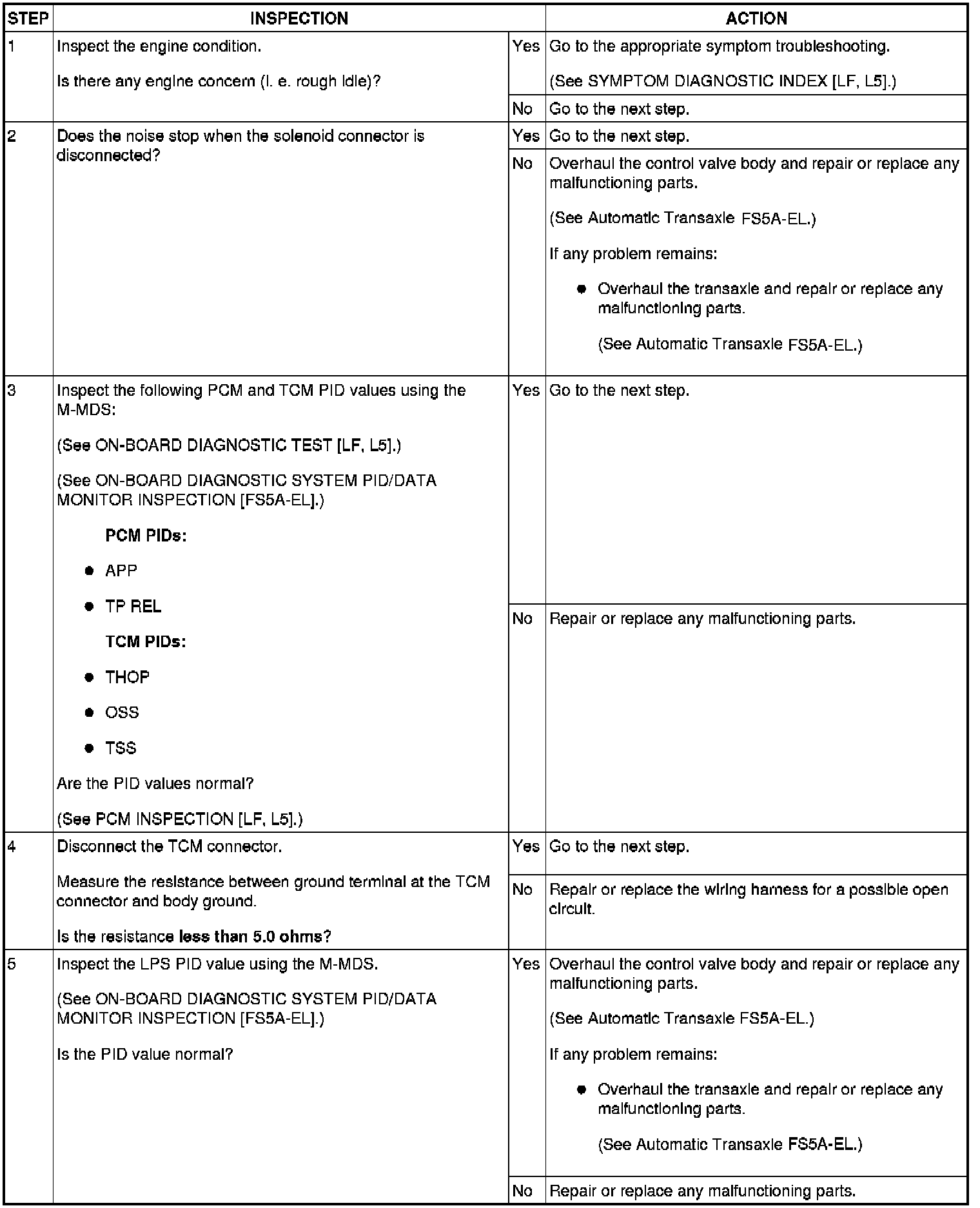

Step 1-Step 5:





Step 6:
