Selector Lever Inspection

SELECTOR LEVER INSPECTION

1. Switch the ignition to ON.

2. Perform the following procedures to inspect the selector lever.

- If there is any malfunction, adjust the selector cable. Automatic Transaxle Shift Mechanism Removal/Installation

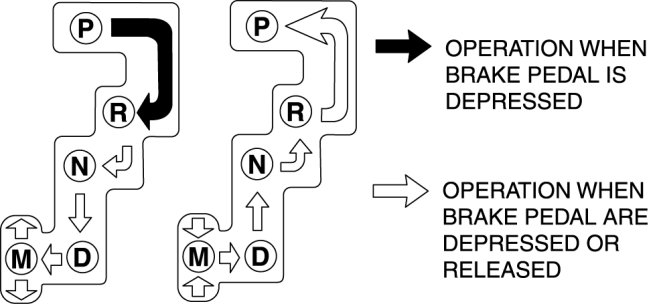

a. Verify that the selector lever can be operated as shown in the figure.






b. Verify that the selector lever can be operated smoothly and moderately.
