Liftgate Opener Switch Inspection

LIFTGATE OPENER SWITCH INSPECTION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Liftgate upper trim

b. Liftgate side trim

c. Liftgate lower trim

d. Liftgate latch and lock actuator Liftgate Latch And Lock Actuator Removal/Installation

e. Liftgate opener switch Liftgate Opener Switch Removal/Installation

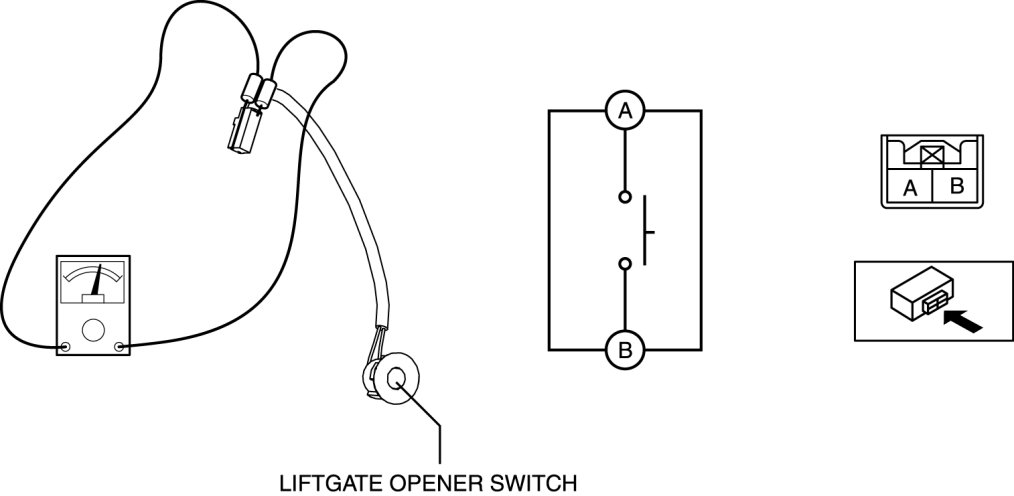

3. Verify the continuity of liftgate opener switch terminals A and B.

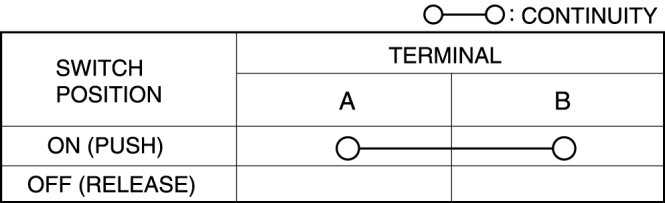

4. Verify that the continuity is as indicated in the table.






- If not as indicated in the table, replace the liftgate opener switch.
