Trunk Lid Opener Switch Removal/Installation




TRUNK LID OPENER SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the trunk lid trim.

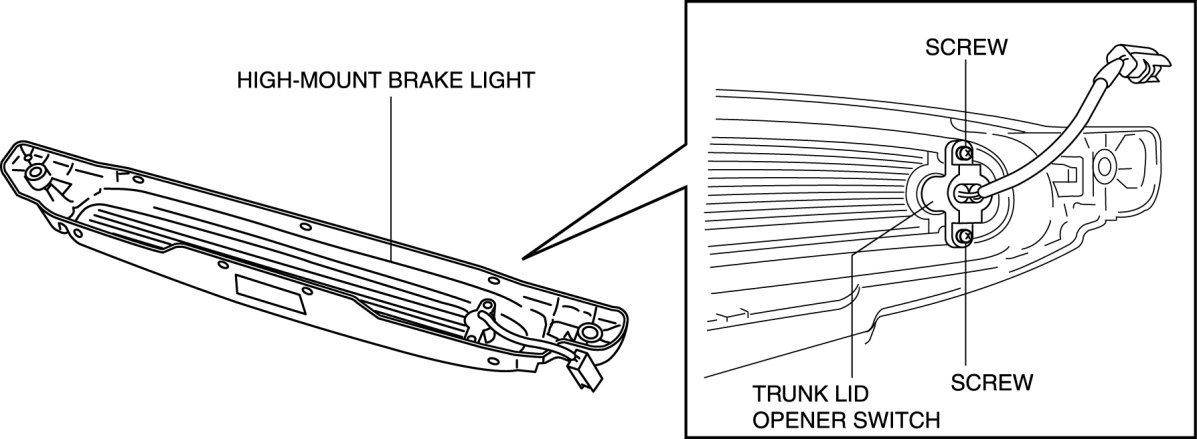

3. Remove the high-mount brake light. Removal and Replacement

4. Remove the screw.






5. Install in the reverse order of removal.
