Connector Locations

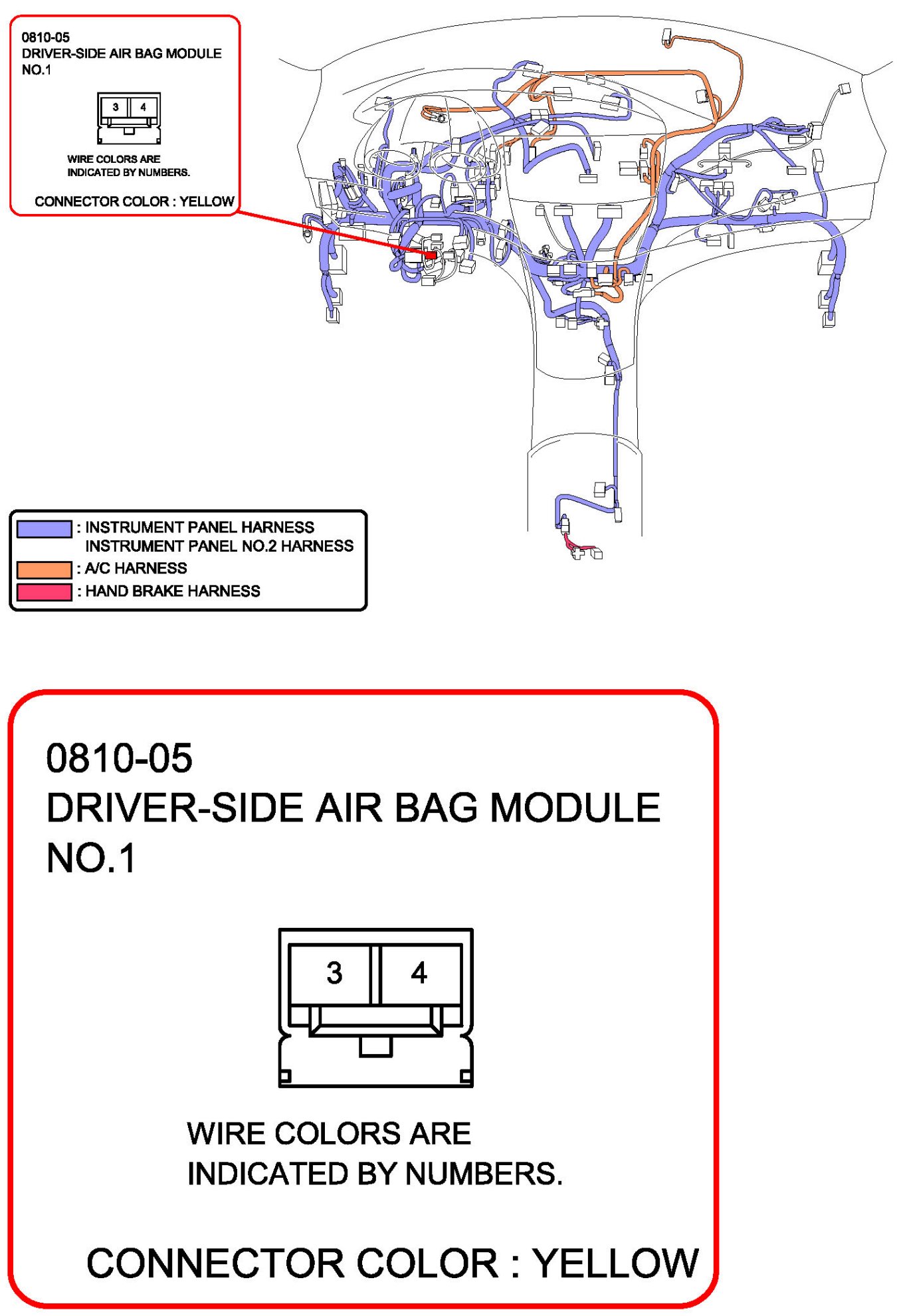

Driver-Side Air Bag Module No.1:

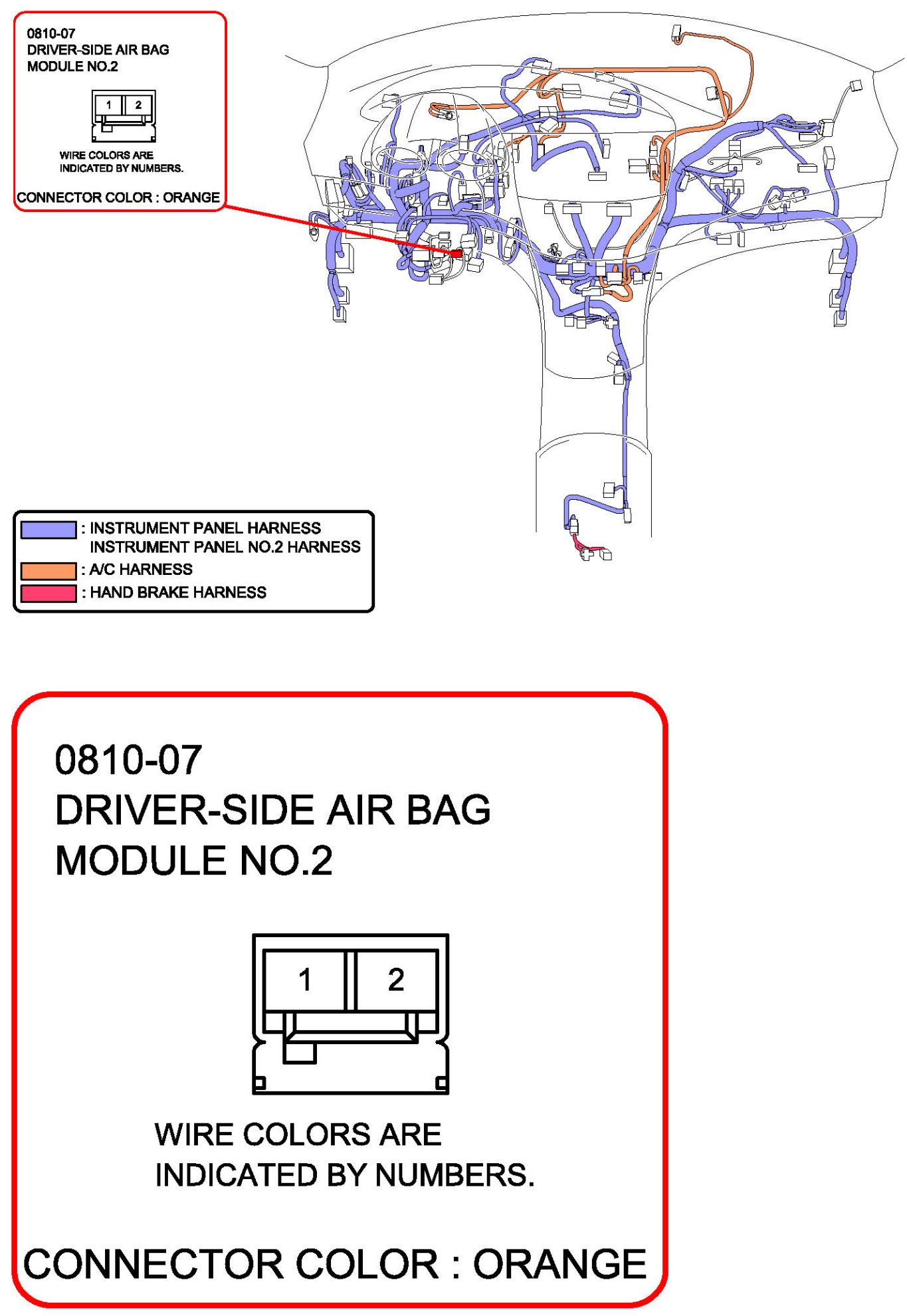

Driver-Side Air Bag Module No.2:

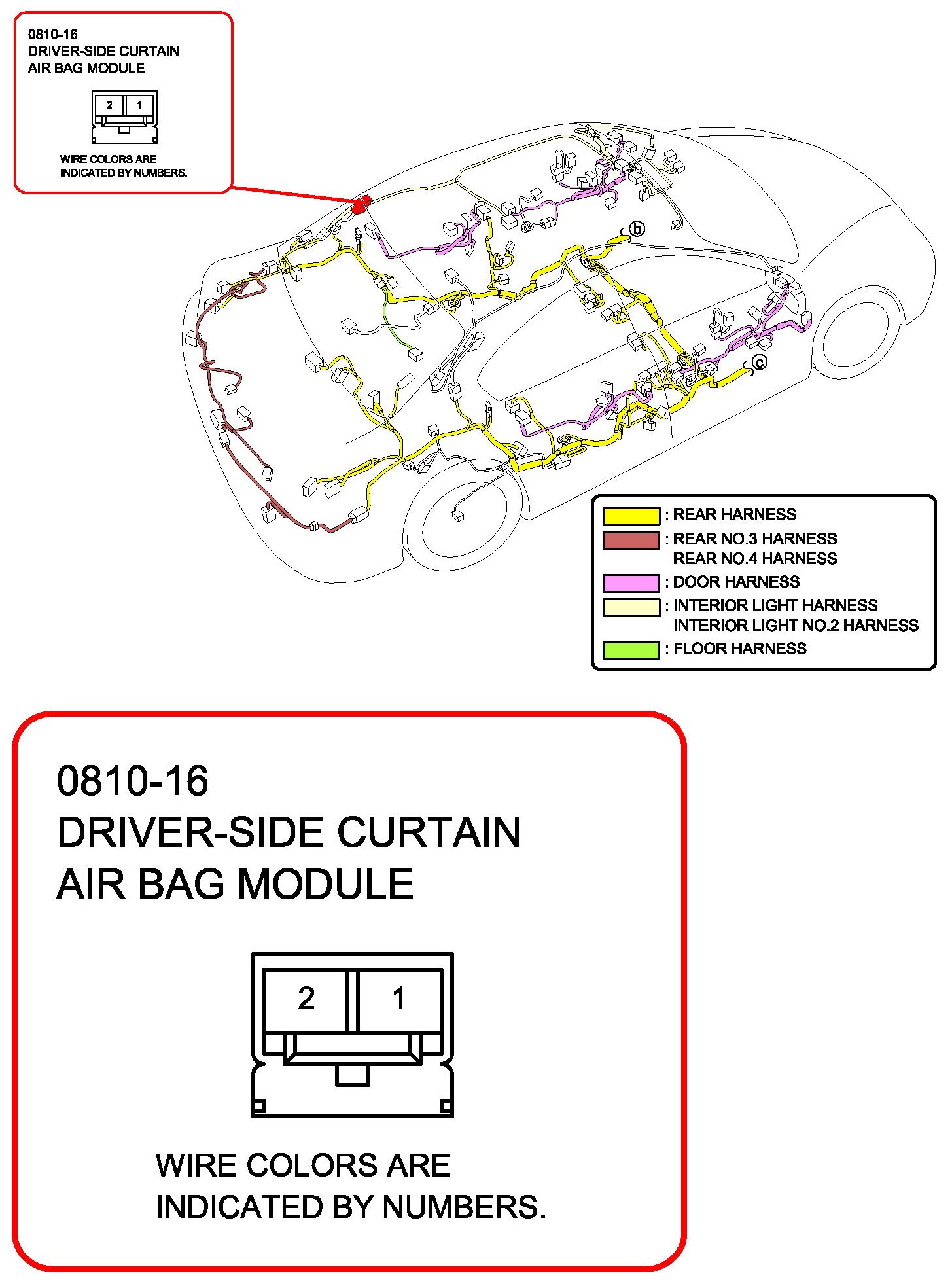

Driver-Side Curtain Air Bag Module:

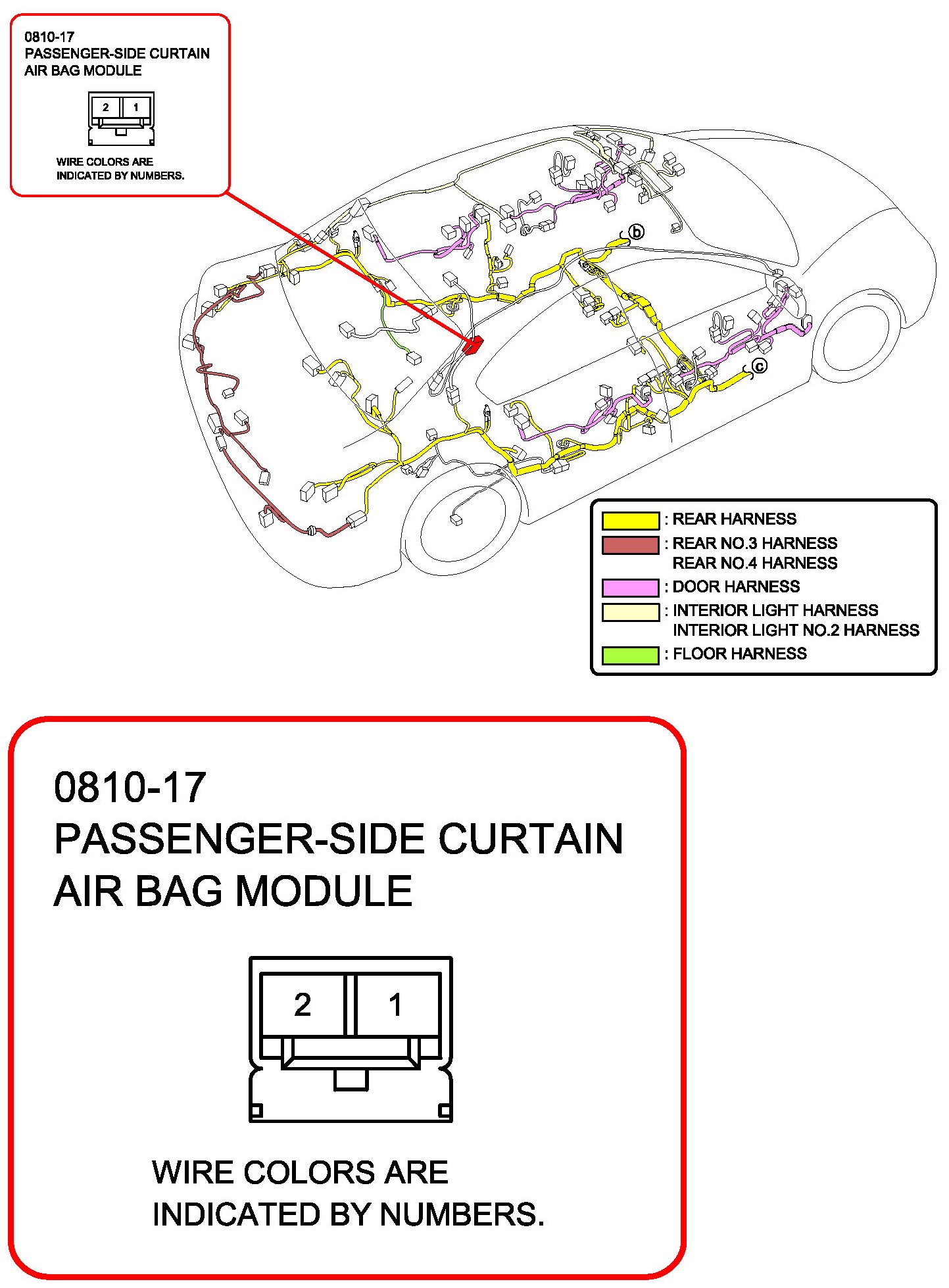

Passenger-Side Curtain Air Bag Module:
