Canister Vent Valve: Service and Repair

CANISTER VENT (CV) SOLENOID VALVE REMOVAL/INSTALLATION [LF, L5]

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable. Removal and Replacement

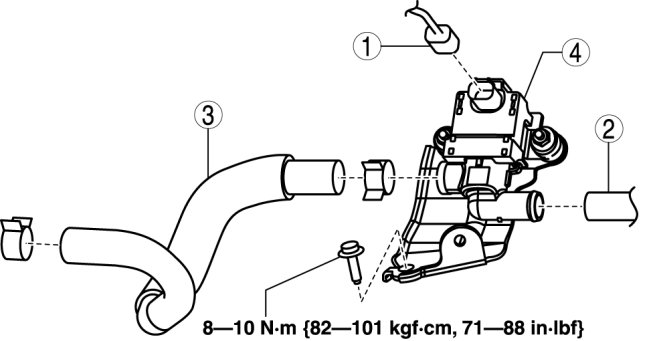

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.

Evaporative Hose Removal Note

1. Disconnect the evaporative hose of fuel tank side.

2. Remove the evaporative hose and CV solenoid valve as a single unit.

3. Remove the evaporative hose.
