Canister Purge Solenoid: Service and Repair

PURGE SOLENOID VALVE REMOVAL/INSTALLATION [LF, L5]

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable. Removal and Replacement

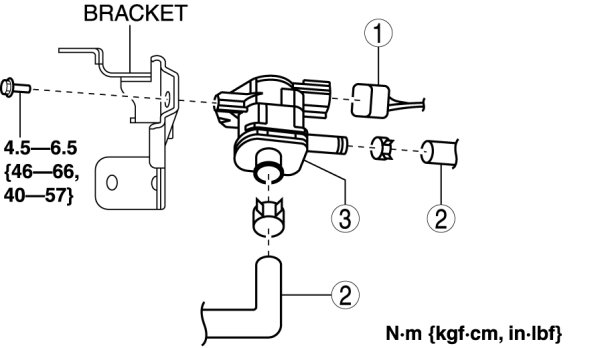

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.

Evaporative Hose Installation Note

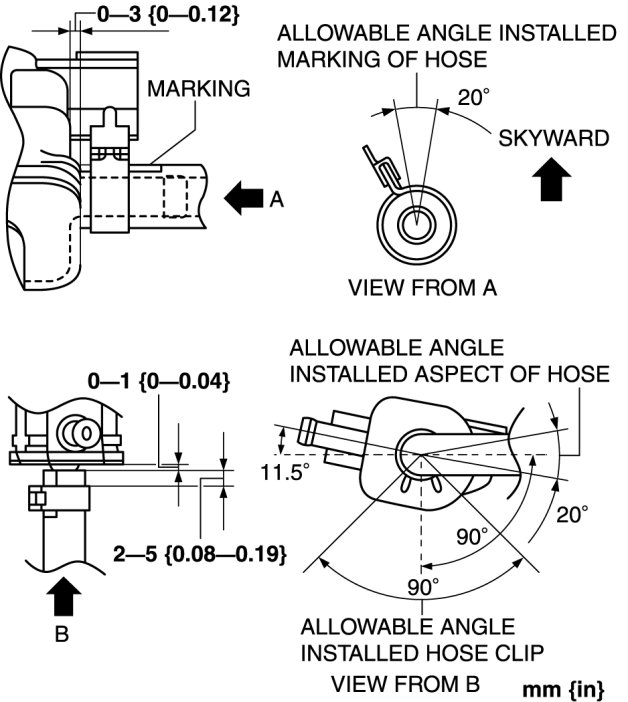

1. Install the evaporative hose and clip as shown in the figure.
