Blower Motor Inspection - Manual Air Conditioner




BLOWER MOTOR INSPECTION [MANUAL AIR CONDITIONER]

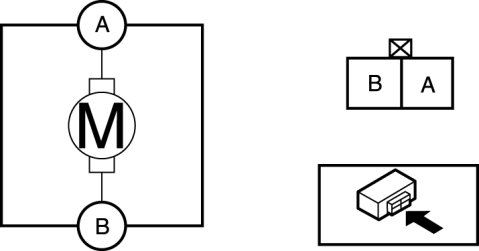

1. Connect battery positive voltage to blower motor terminal A, connect terminal B to ground, and then verify its operation.






- If there is any malfunction, replace the blower motor.
