Connector Locations

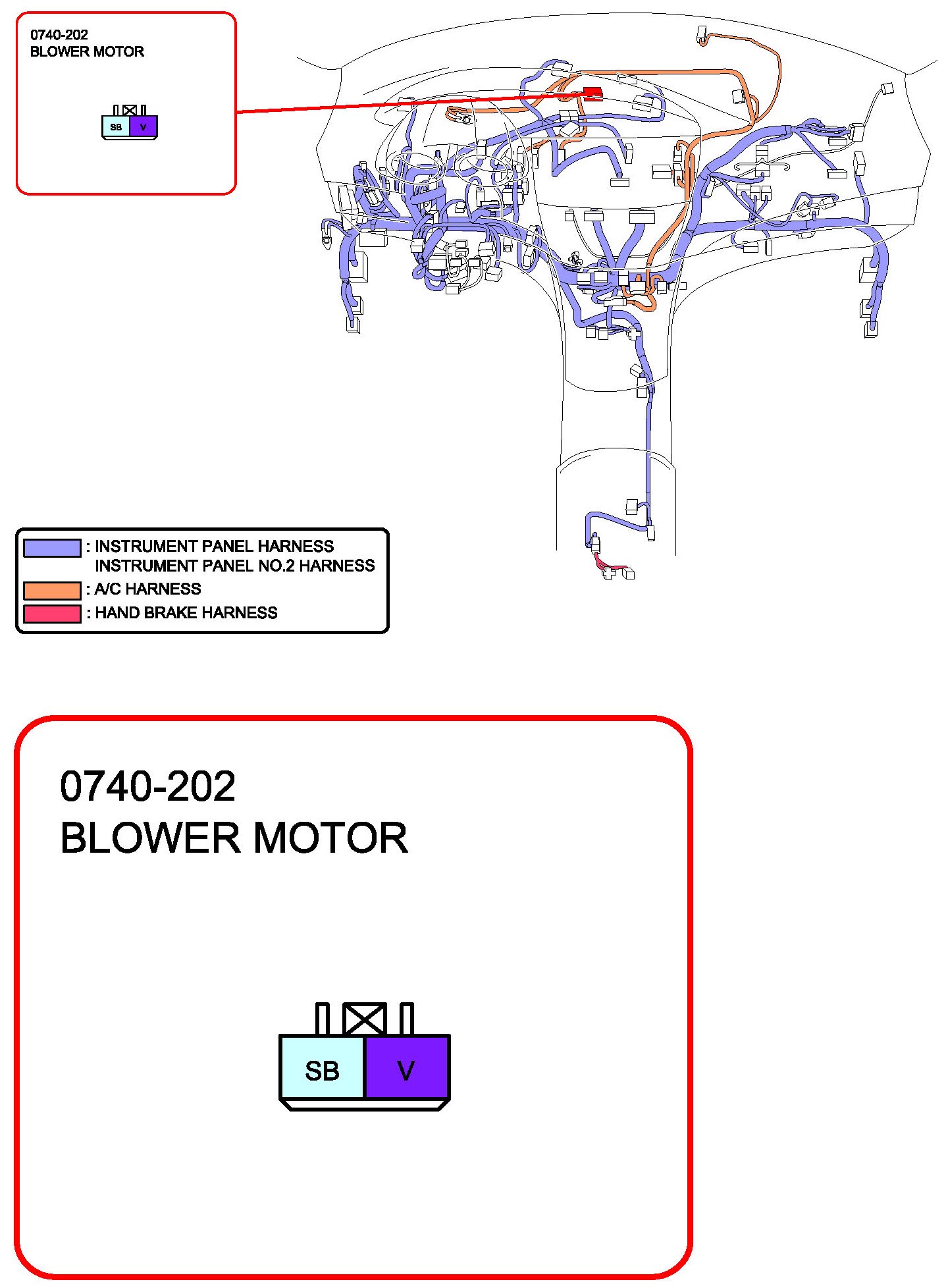

Heater and Air Conditioner System (Manual A/C)
Blower Motor:

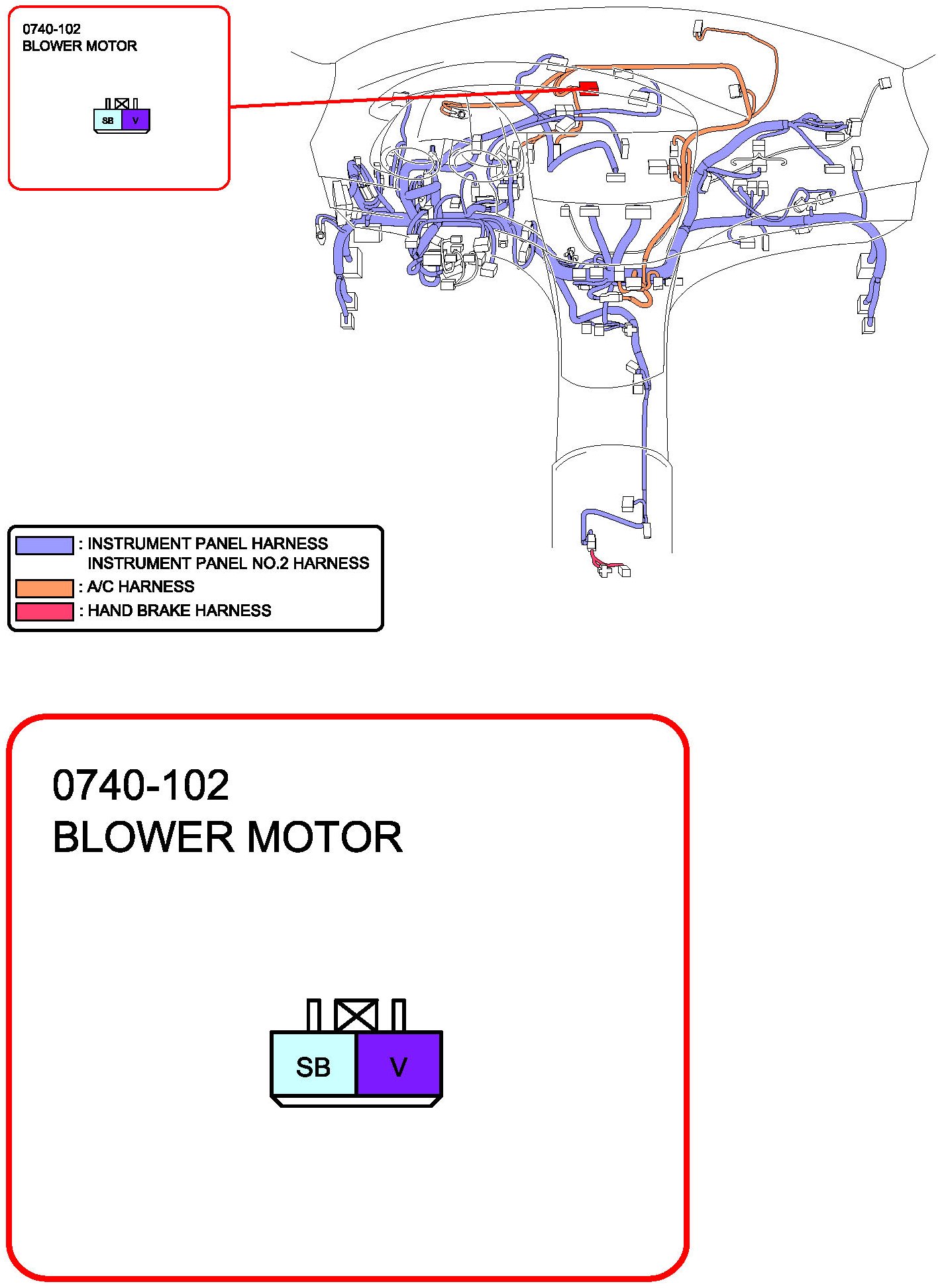

Heater and Air Conditioner System (Auto A/C)
Blower Motor:
