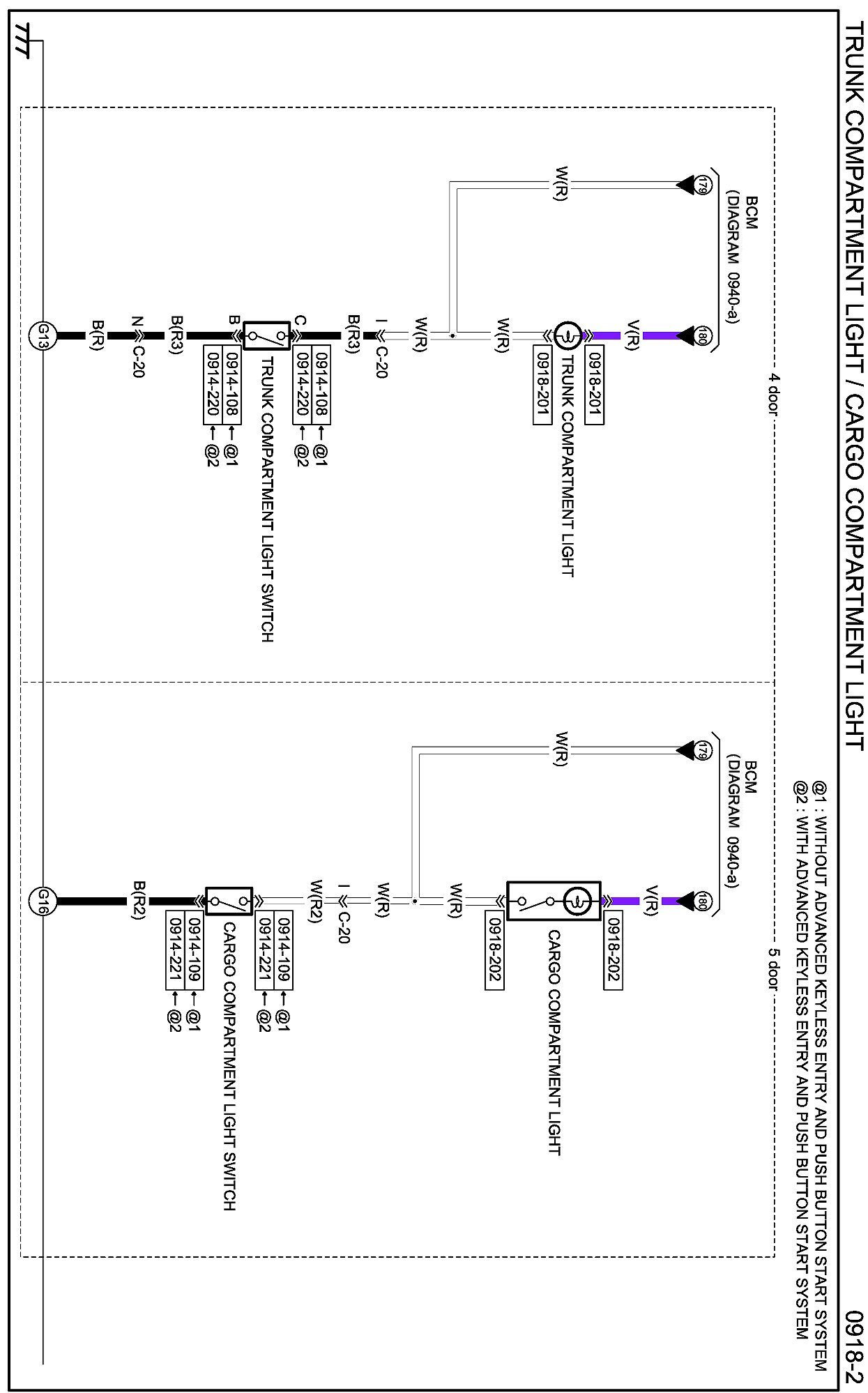

Diagram 0918-2 (Trunk Compartment Light / Cargo Compartment Light)
Diagram 0918-2 (Trunk Compartment Light / Cargo Compartment Light)
Diagram 0918-2:
