REAR SCUFF PLATE REMOVAL/INSTALLATION

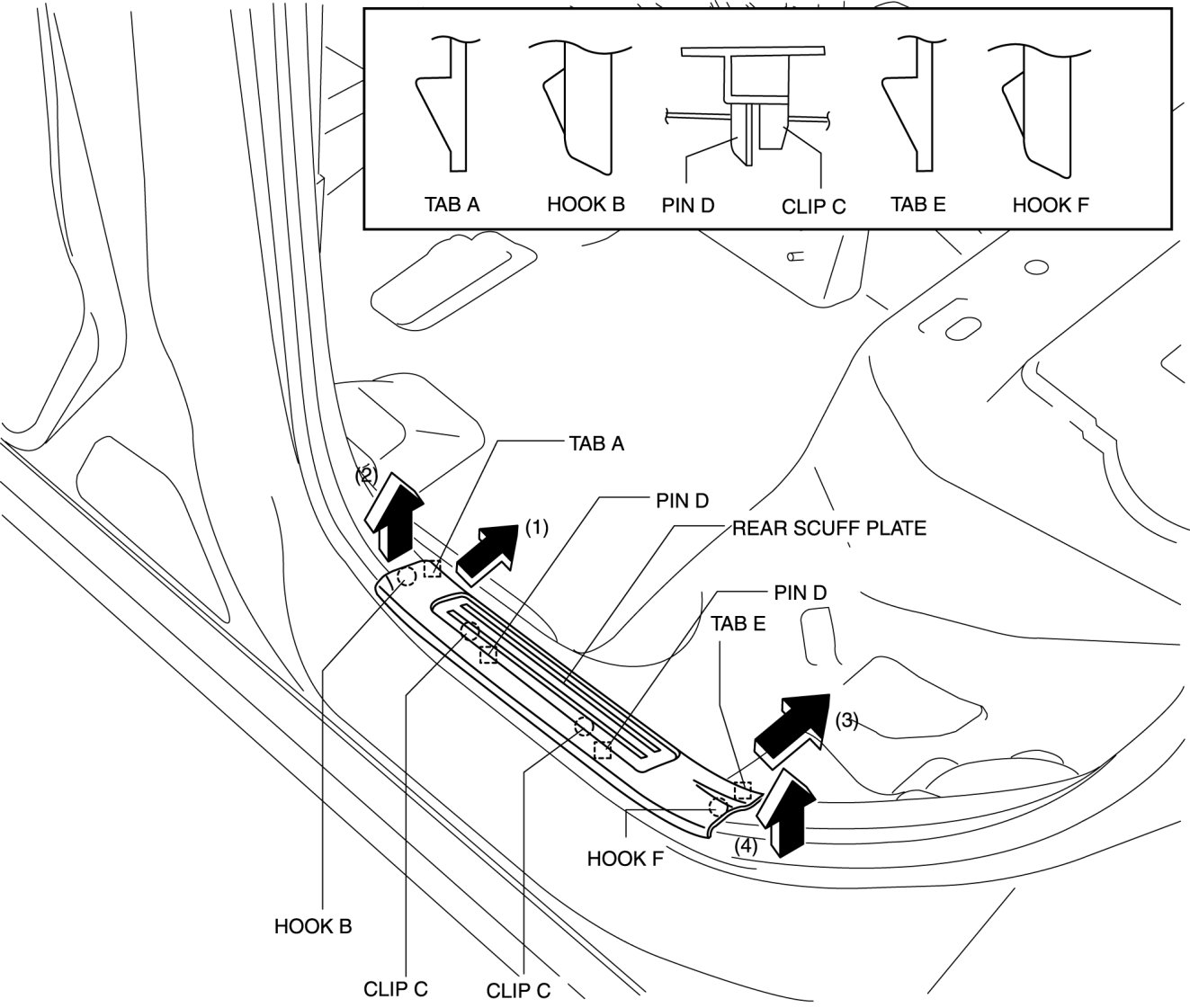

1. Detach tab A while pulling the rear scuff plate in the direction of the arrow (1) shown in the figure, then detach hook B, clips C, pins D while pulling in the direction of the arrow (2).

2. Detach tab E while pulling the rear scuff plate in the direction of the arrow (3) shown in the figure, pull the rear scuff plate in the direction of the arrow (4) shown in the figure.






3. Remove the rear scuff plate.

4. Install in the reverse order of removal.
