Liftgate Latch Switch Inspection

LIFTGATE LATCH SWITCH INSPECTION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Liftgate upper trim

b. Liftgate side trim

c. Liftgate lower trim

d. Liftgate latch and lock actuator Liftgate Latch And Lock Actuator Removal/Installation

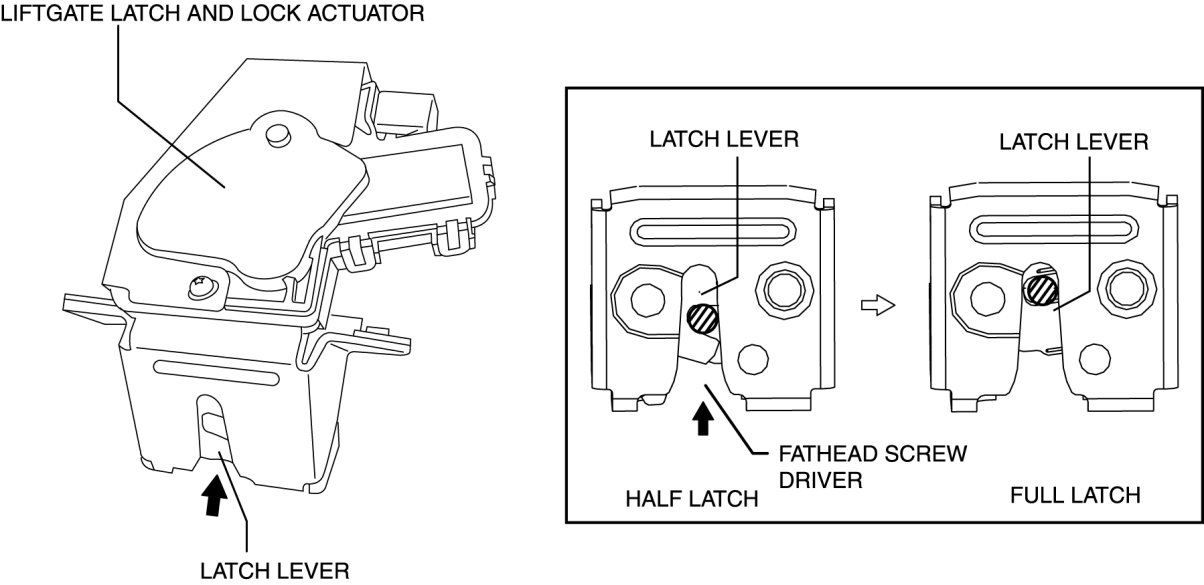

3. Press the latch in using a flathead screwdriver to inspect the latch lever condition.

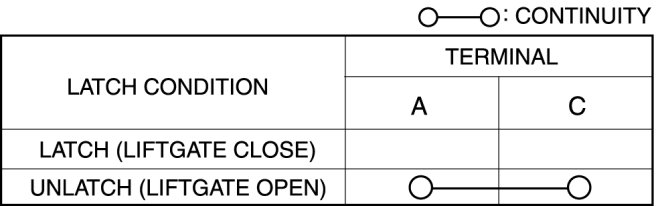

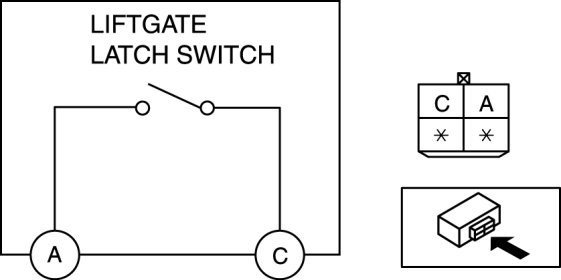

4. Verify that the continuity is as indicated in the table.






- If not as indicated in the table, replace the liftgate latch and lock actuator
