Rear Door Latch: Service and Repair

REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION

1. Fully open the rear door glass.

2. Disconnect the negative battery cable.

3. Remove the following parts:
a. Rear door trim Removal and Replacement

b. Rear inner handle Service and Repair

c. Rear door speaker Rear Door Speaker Removal/Installation

d. Rear power window motor Service and Repair

e. Rear door glass Rear Door Glass Removal/Installation

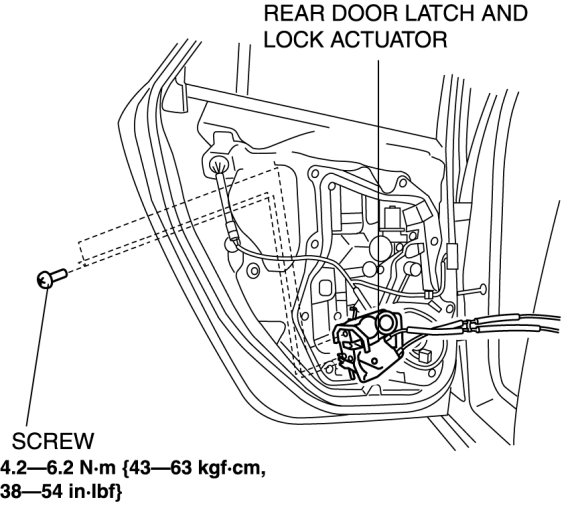

4. Remove the screw.






5. Remove the rear door latch and lock actuator.

6. Install in the reverse order of removal.
