DTC U2030 [AUTO LIGHT/WIPER CONTROL MODULE]

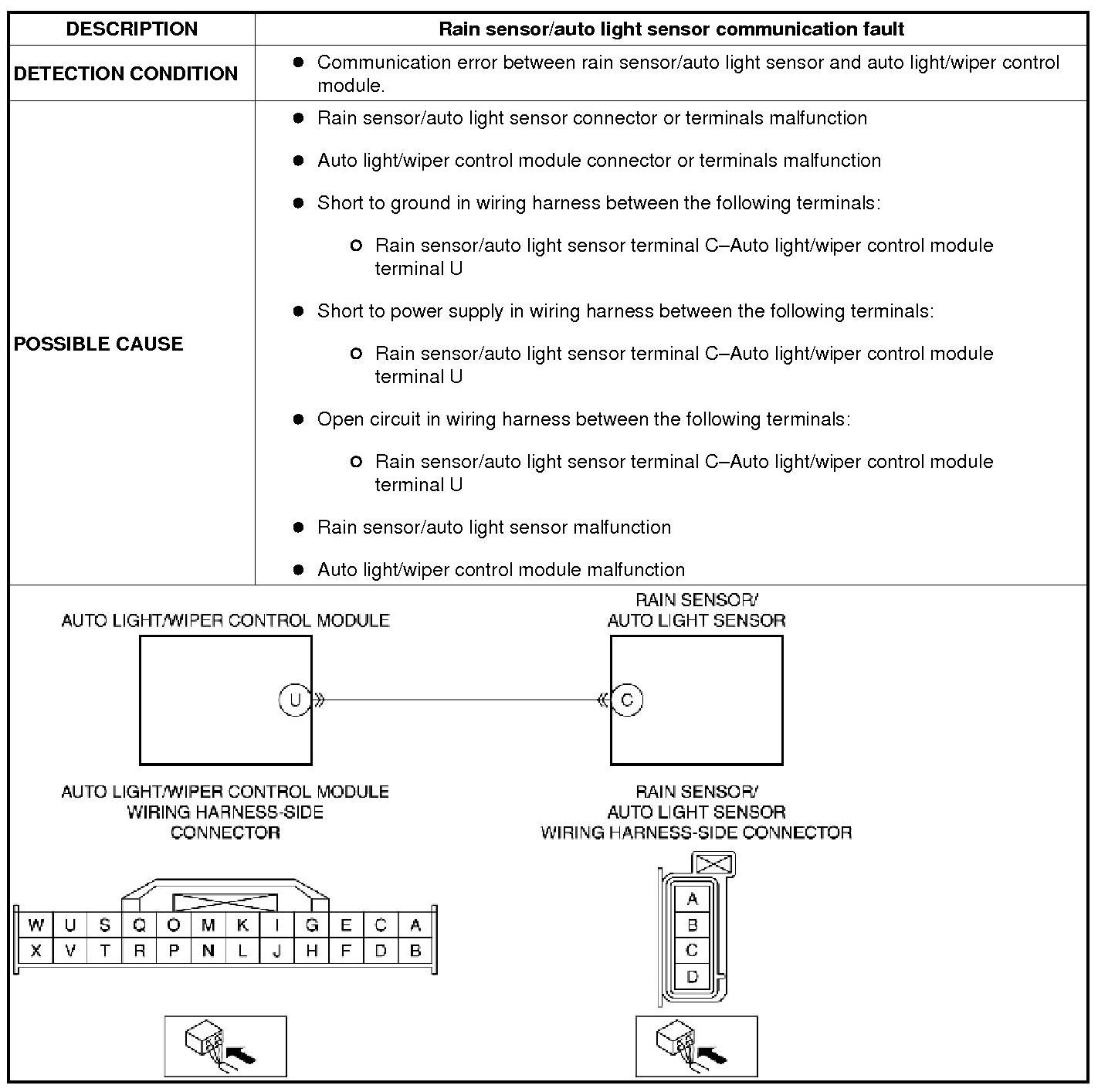

Detection Condition/Possible Cause:
Diagnostic procedure

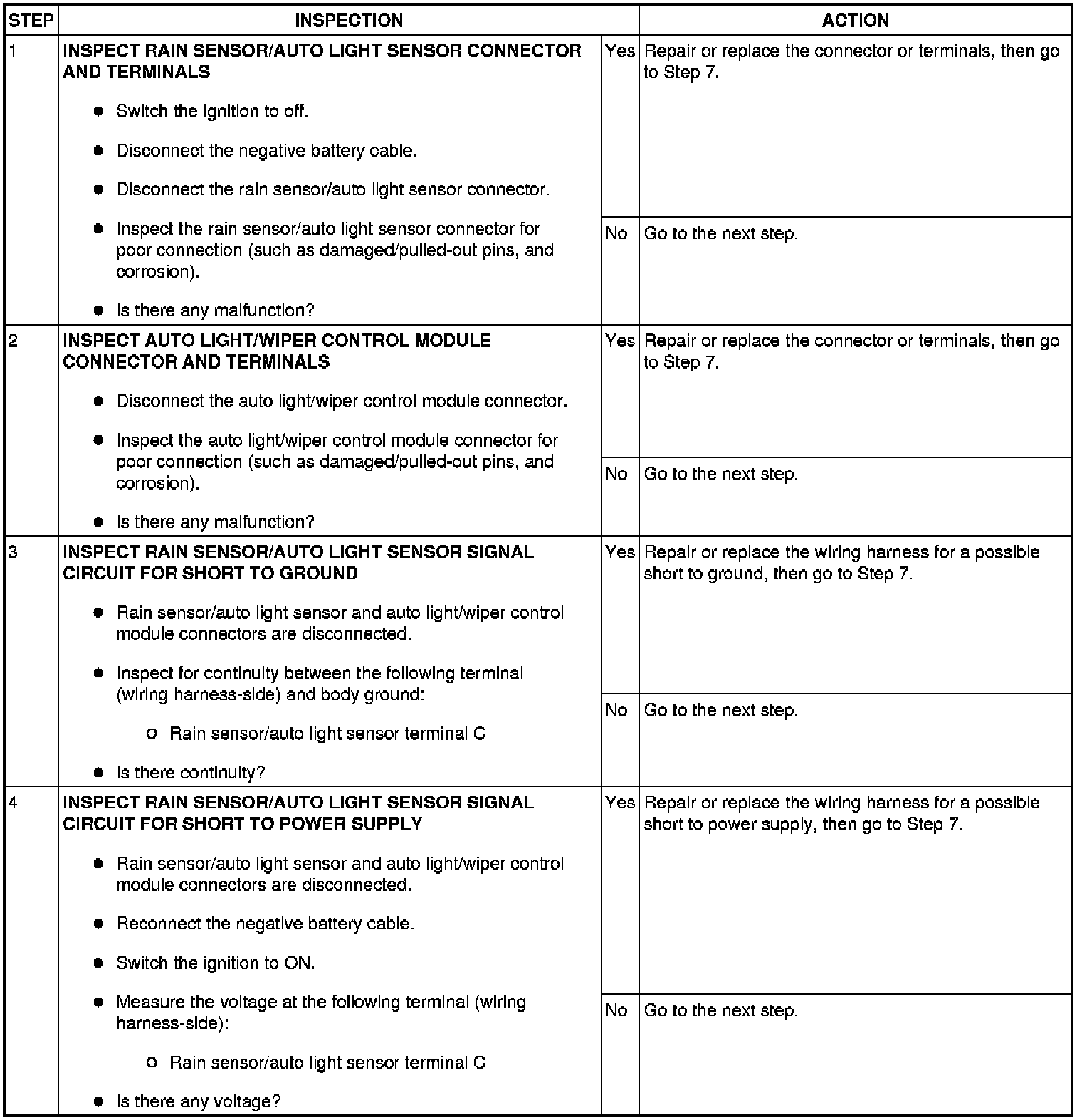

Step 1-Step 4:

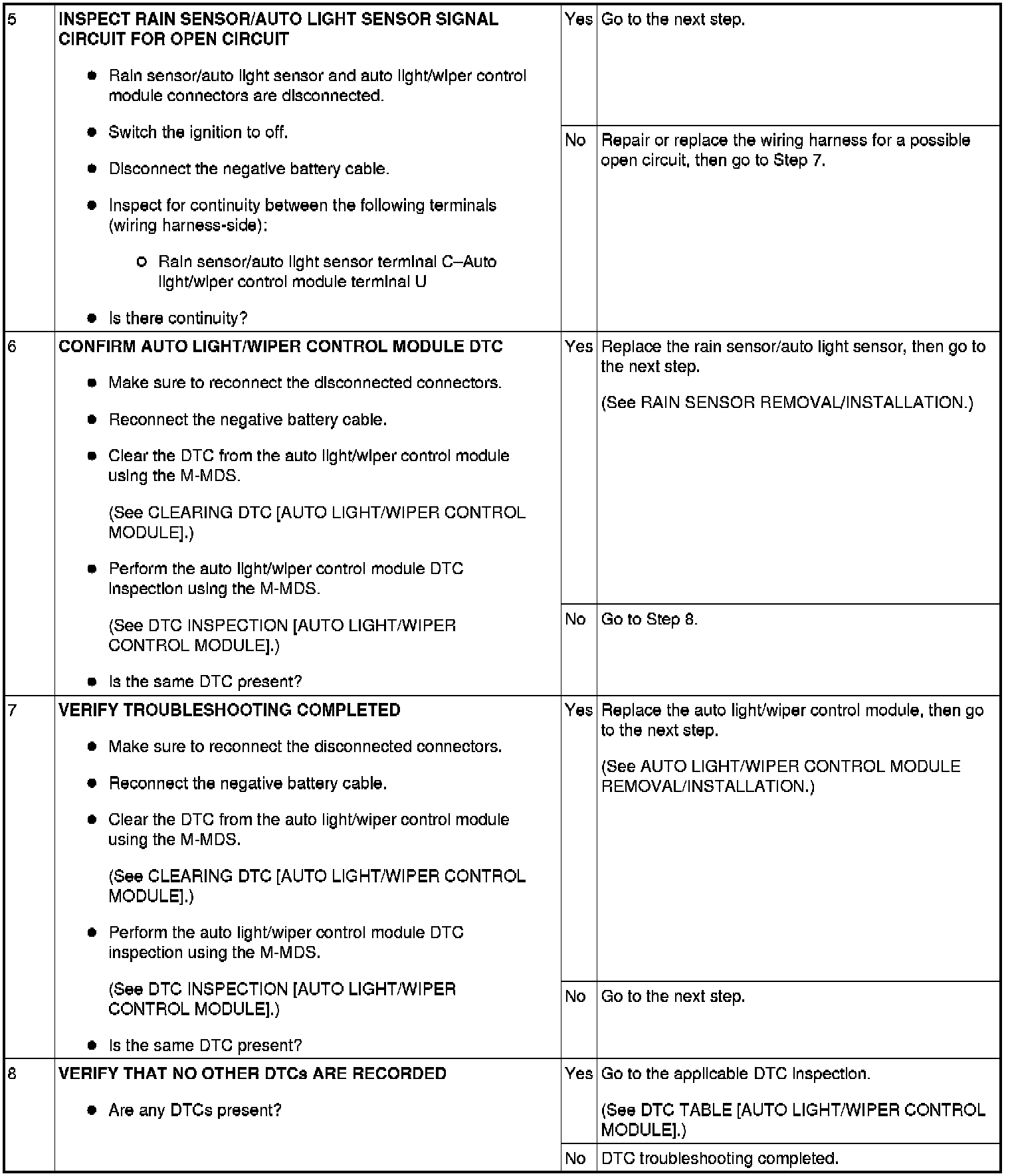

Step 5-Step 8:
