Home >> Mazda >> 2010 >> 3 L4-2.0L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> U Code Charts >> U0127

U0127




DTC U0127:00

Vehicles Without Advanced Keyless Entry And Push Button Start System

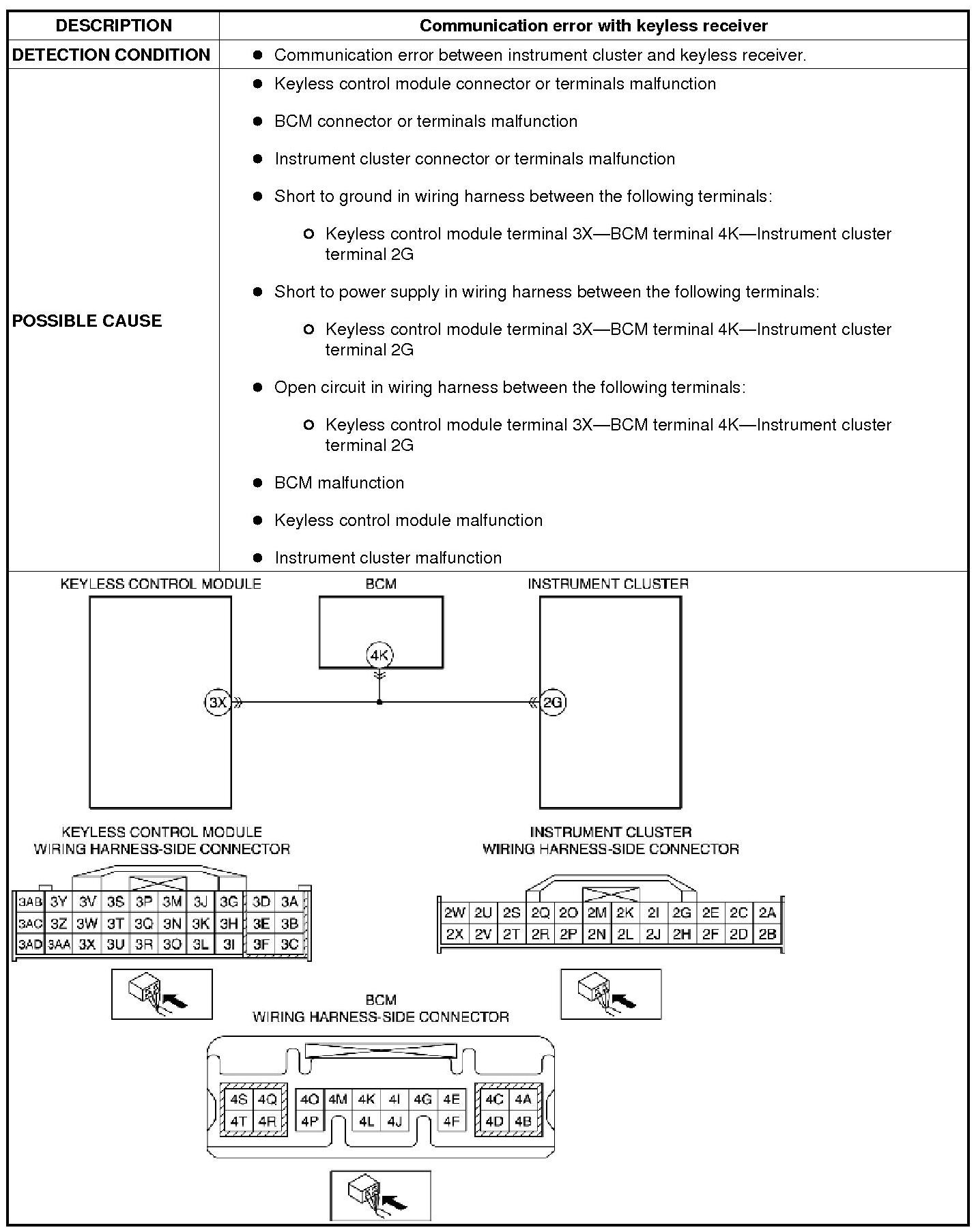

Detection Condition/Possible Cause:





Diagnostic procedure

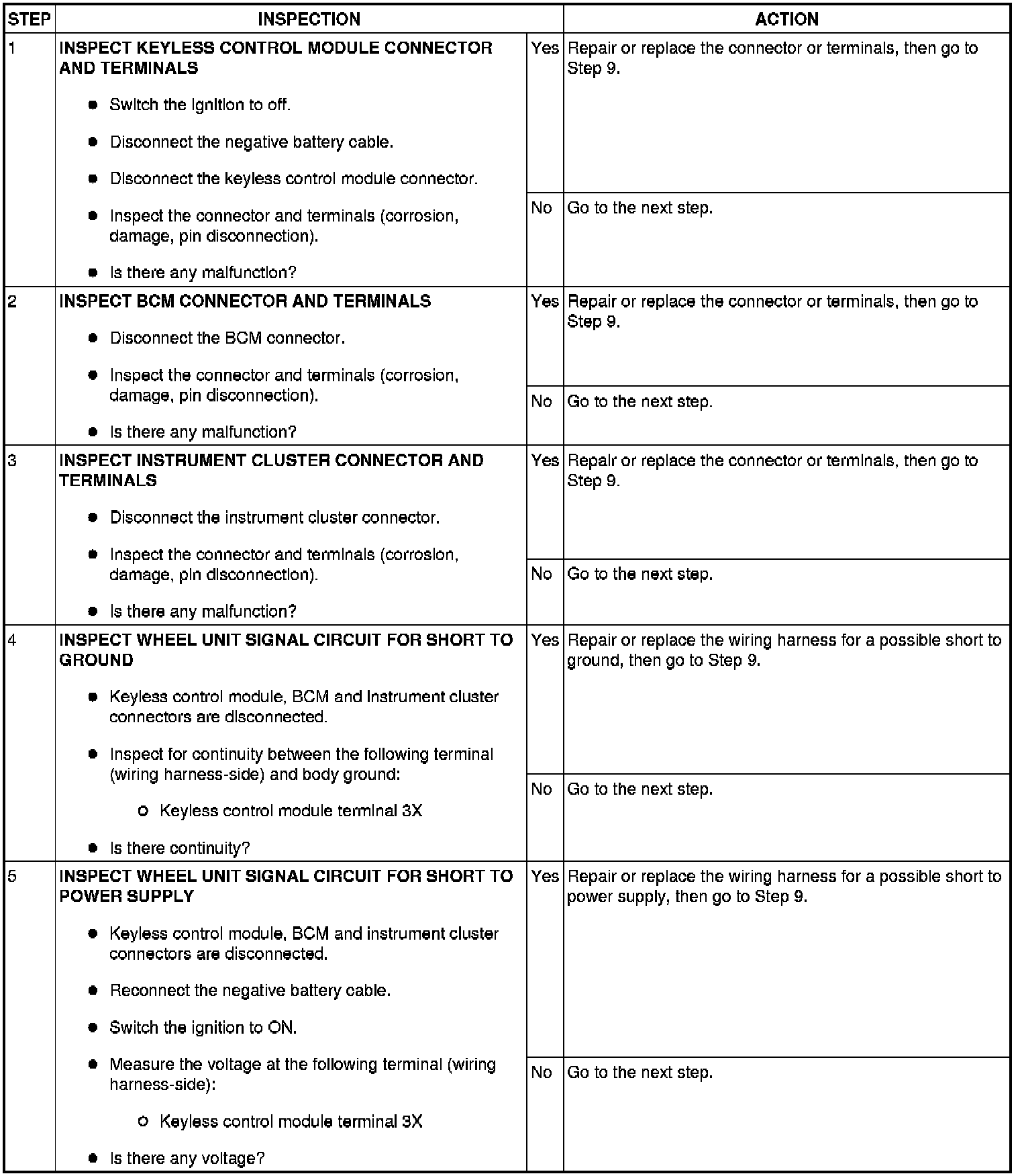

Step 1-Step 5:

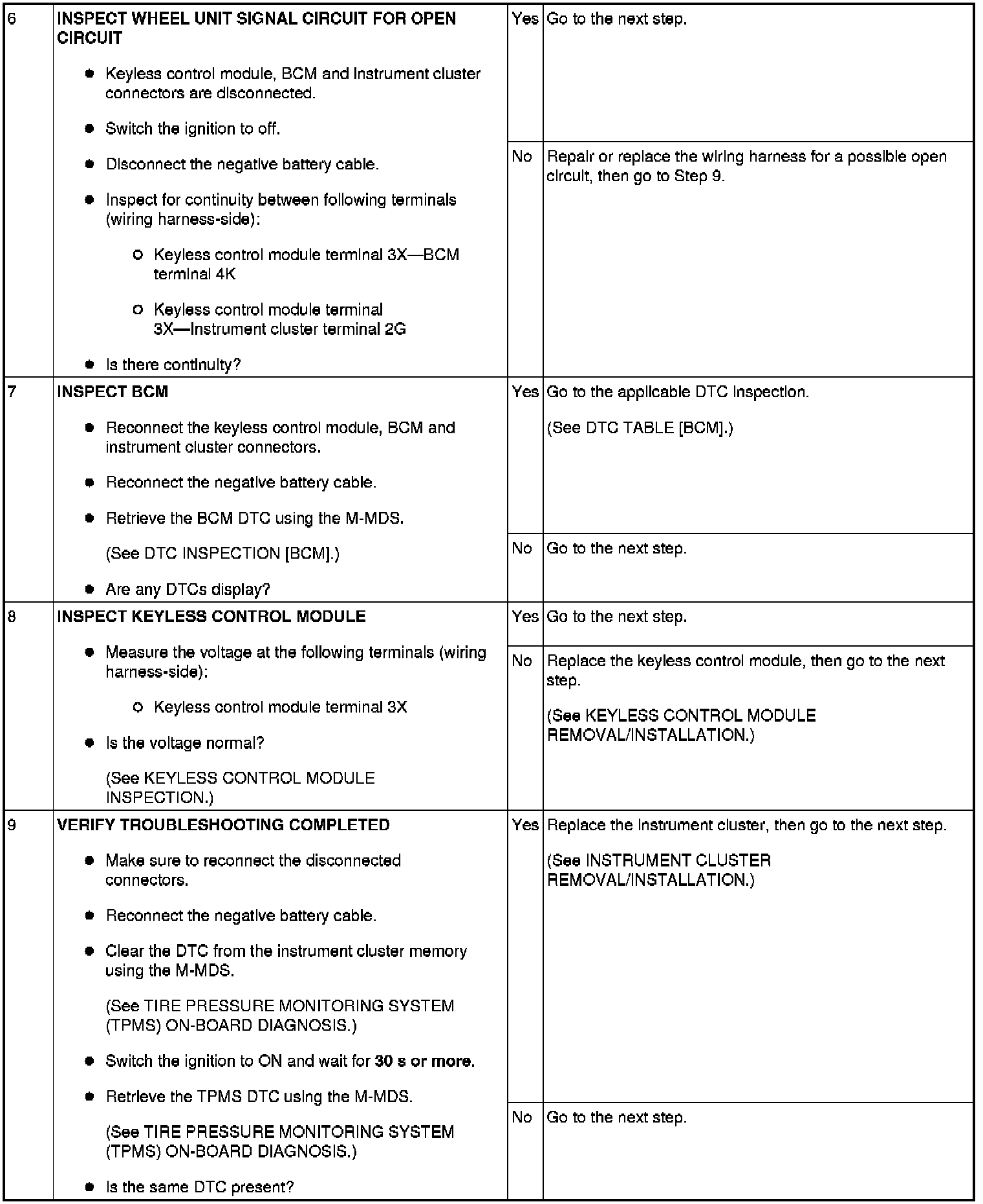

Step 6-Step 9:





Step 10:





Vehicles With Advanced Keyless Entry And Push Button Start System

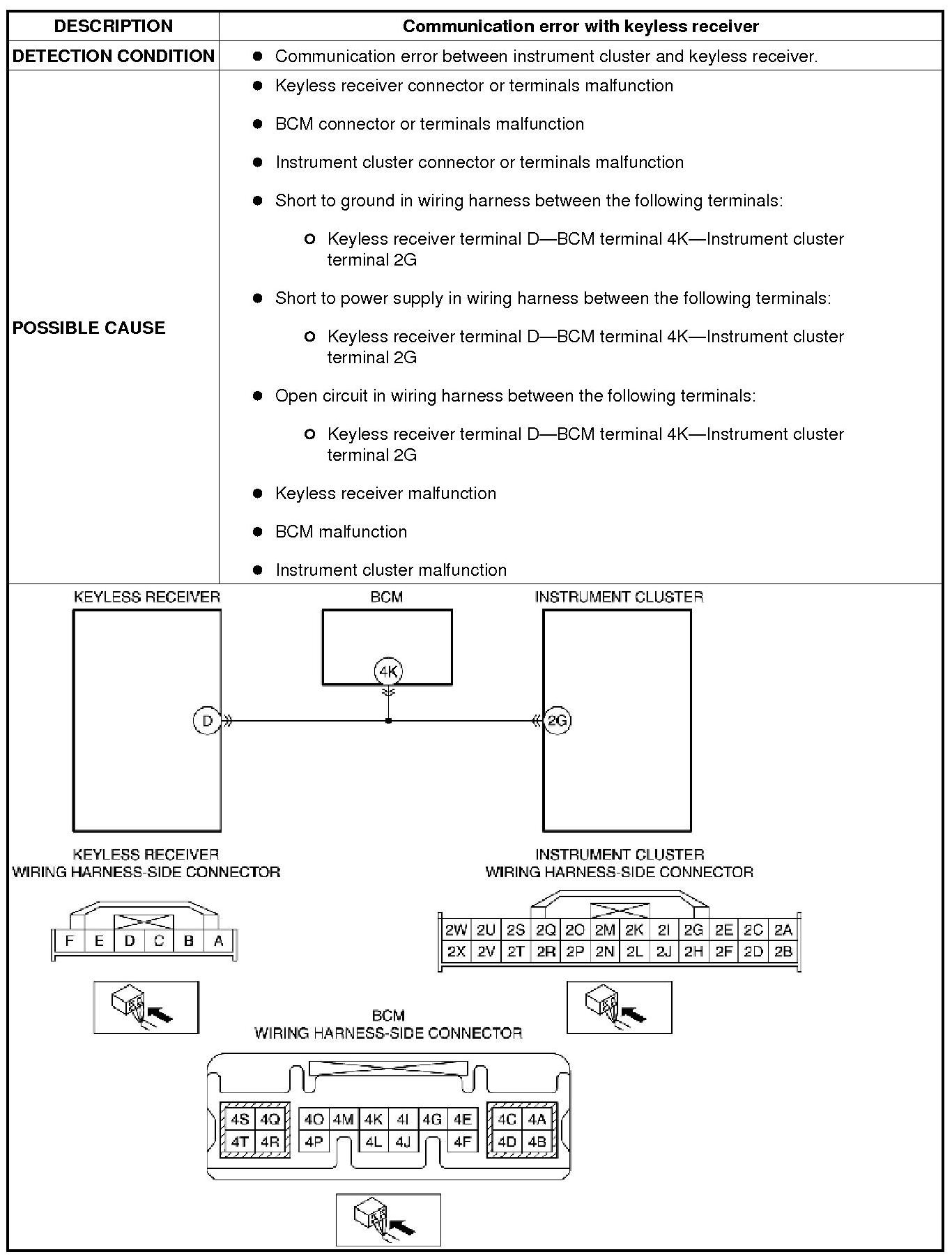

Detection Condition/Possible Cause:





Diagnostic procedure

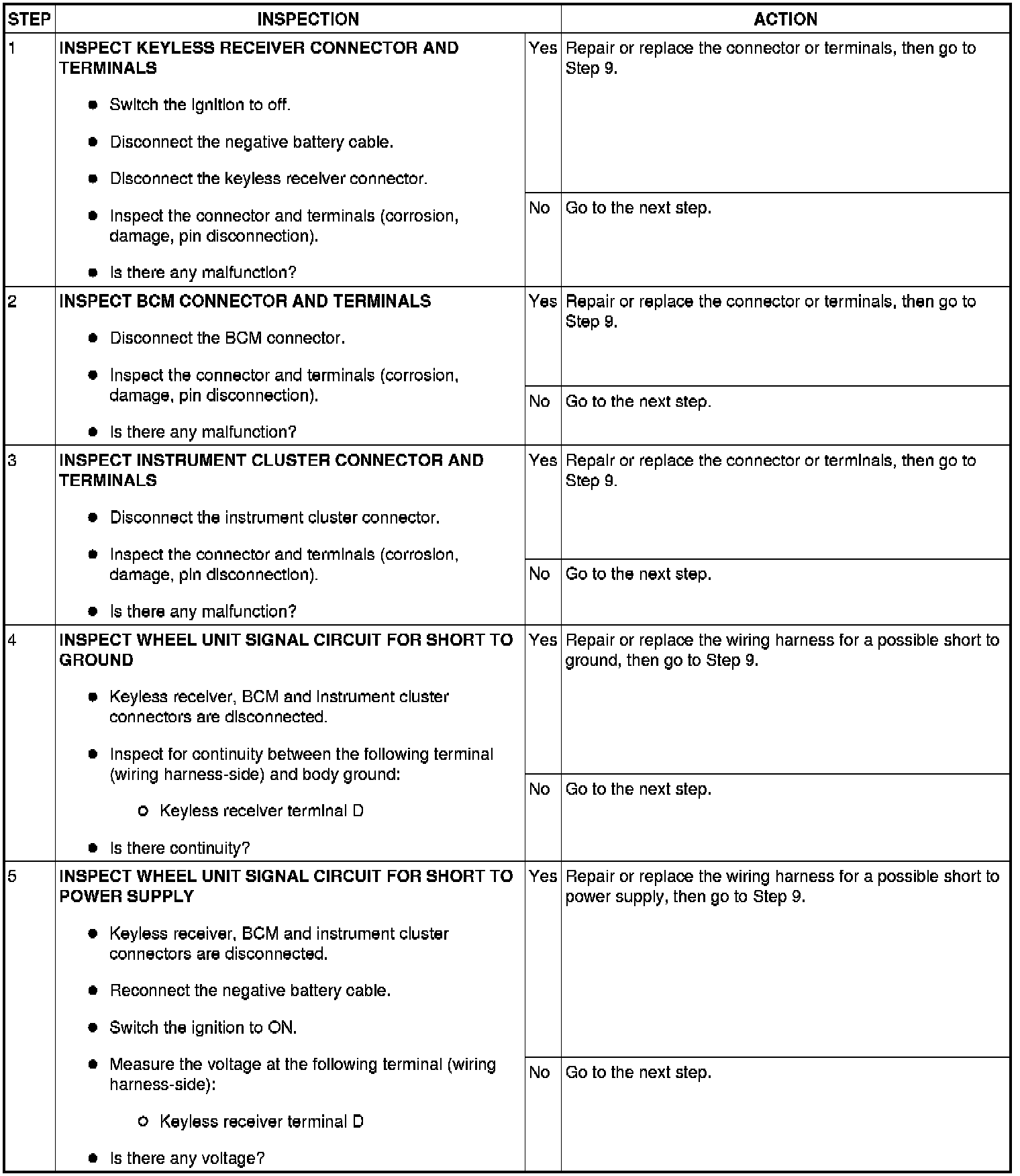

Step 1-Step 5:

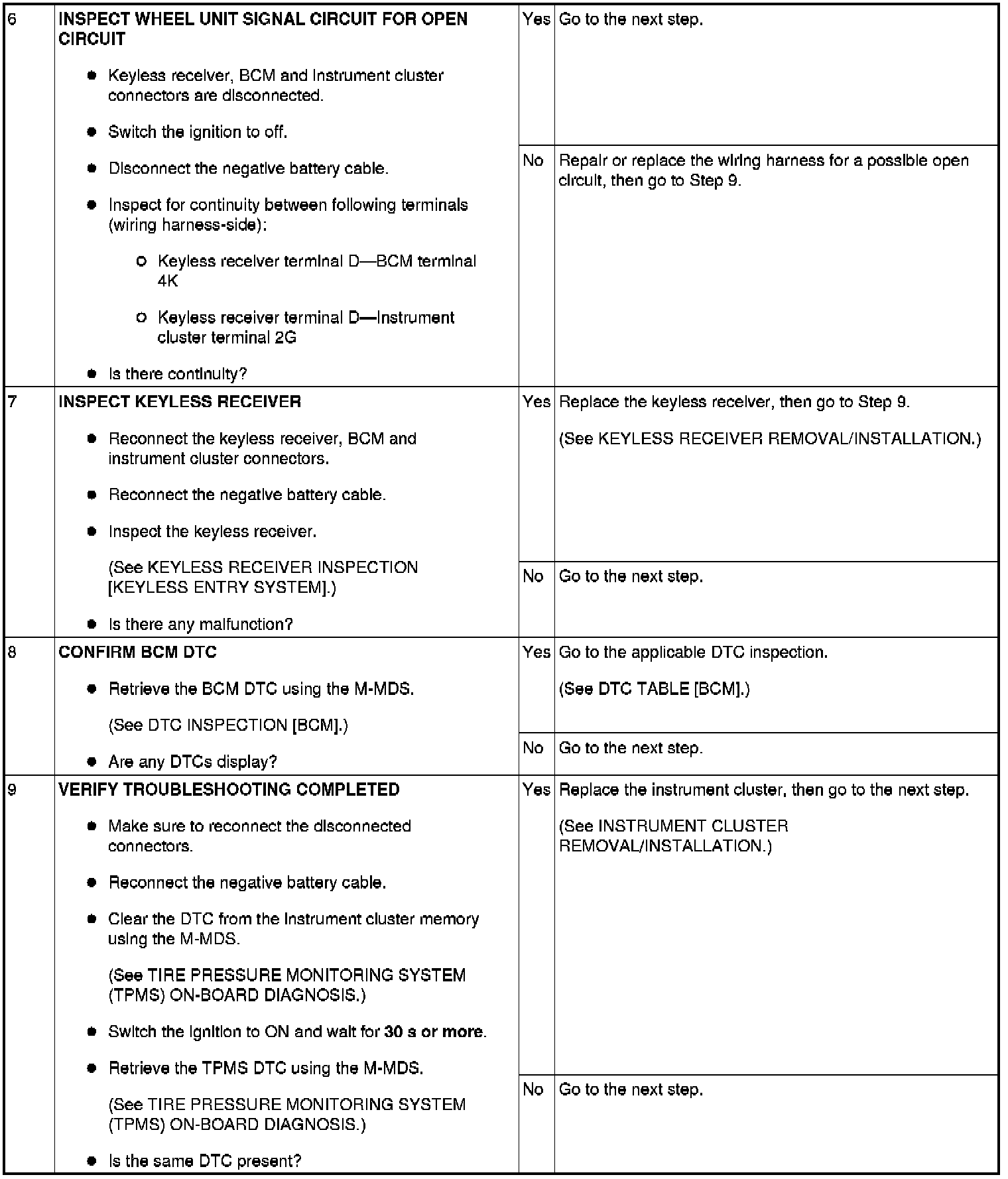

Step 6-Step 9:





Step 10:
