P2004




DTC P2004:00 [LF, L5]

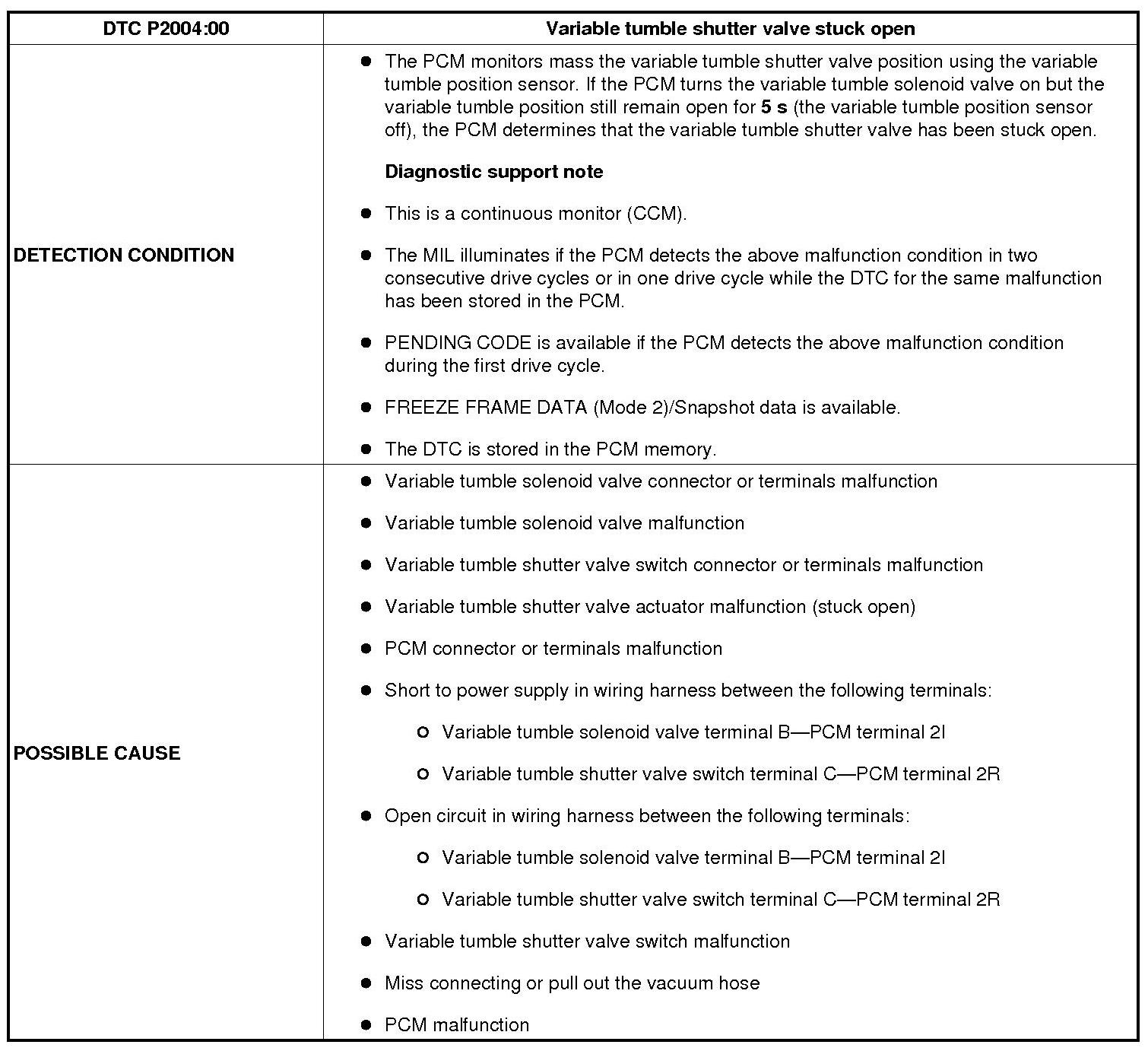

Detection Condition/Possible Cause (Part 1):





Detection Condition/Possible Cause (Part 2):





Diagnostic procedure

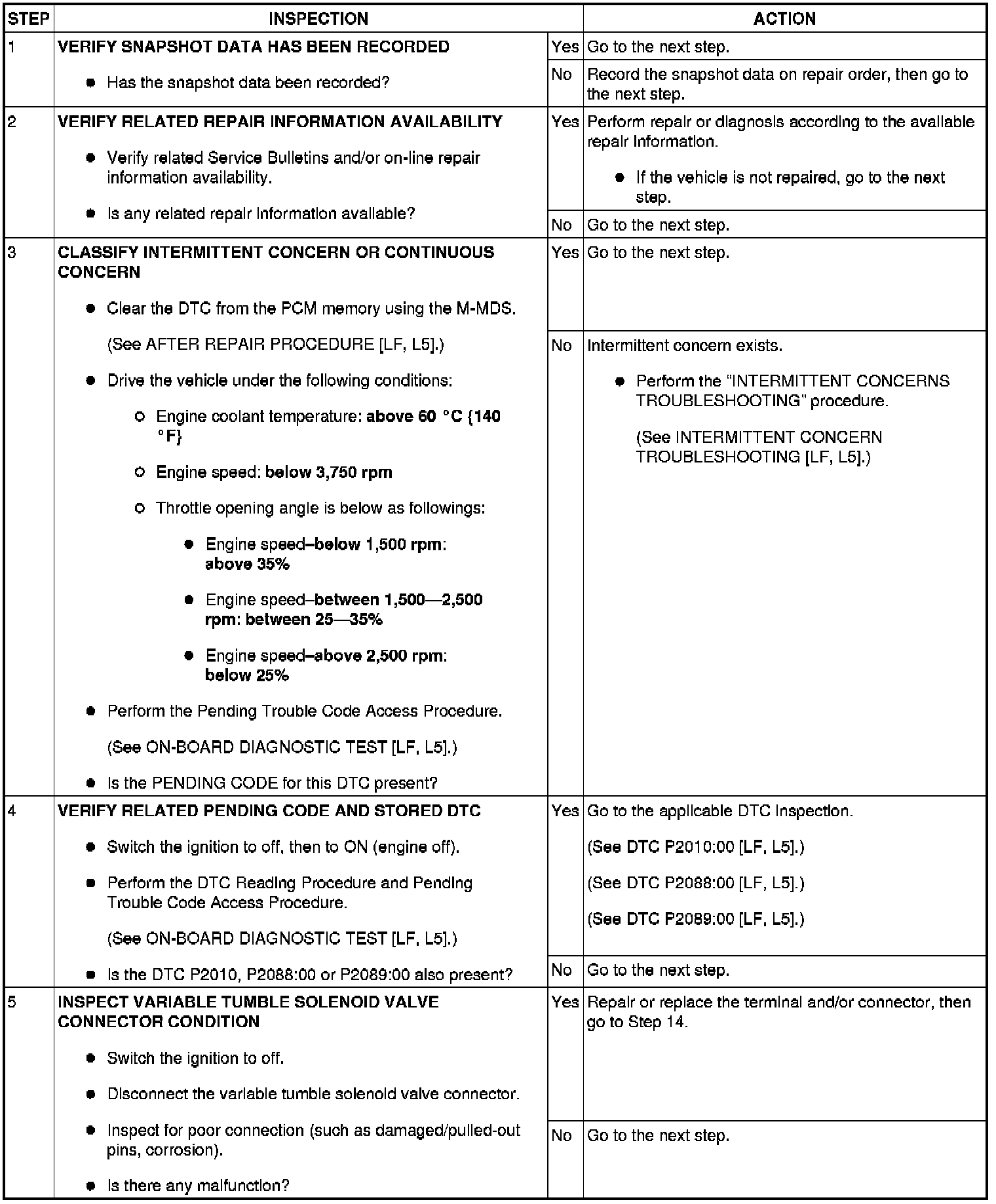

Step 1-Step 5:

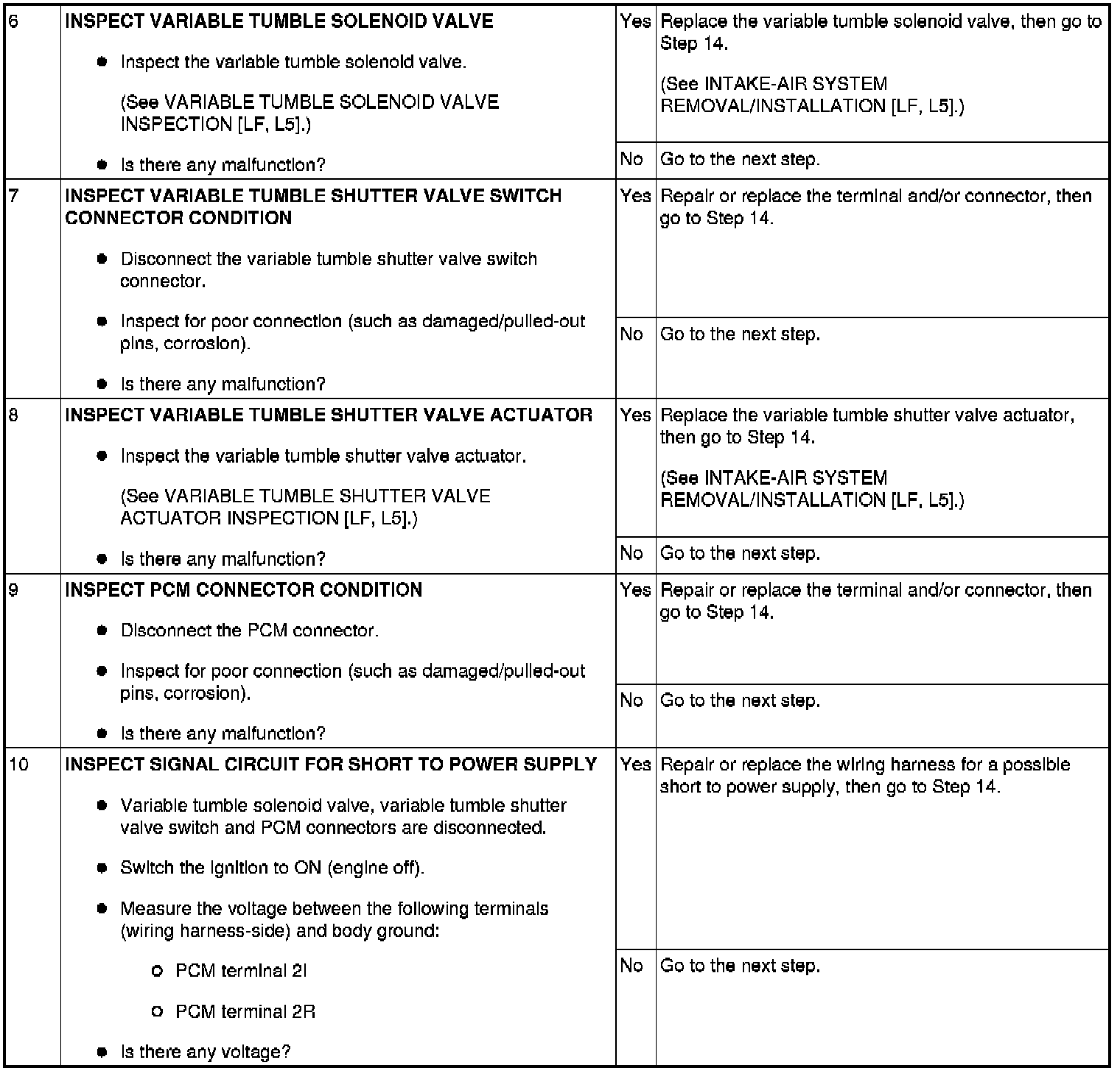

Step 6-Step 10:

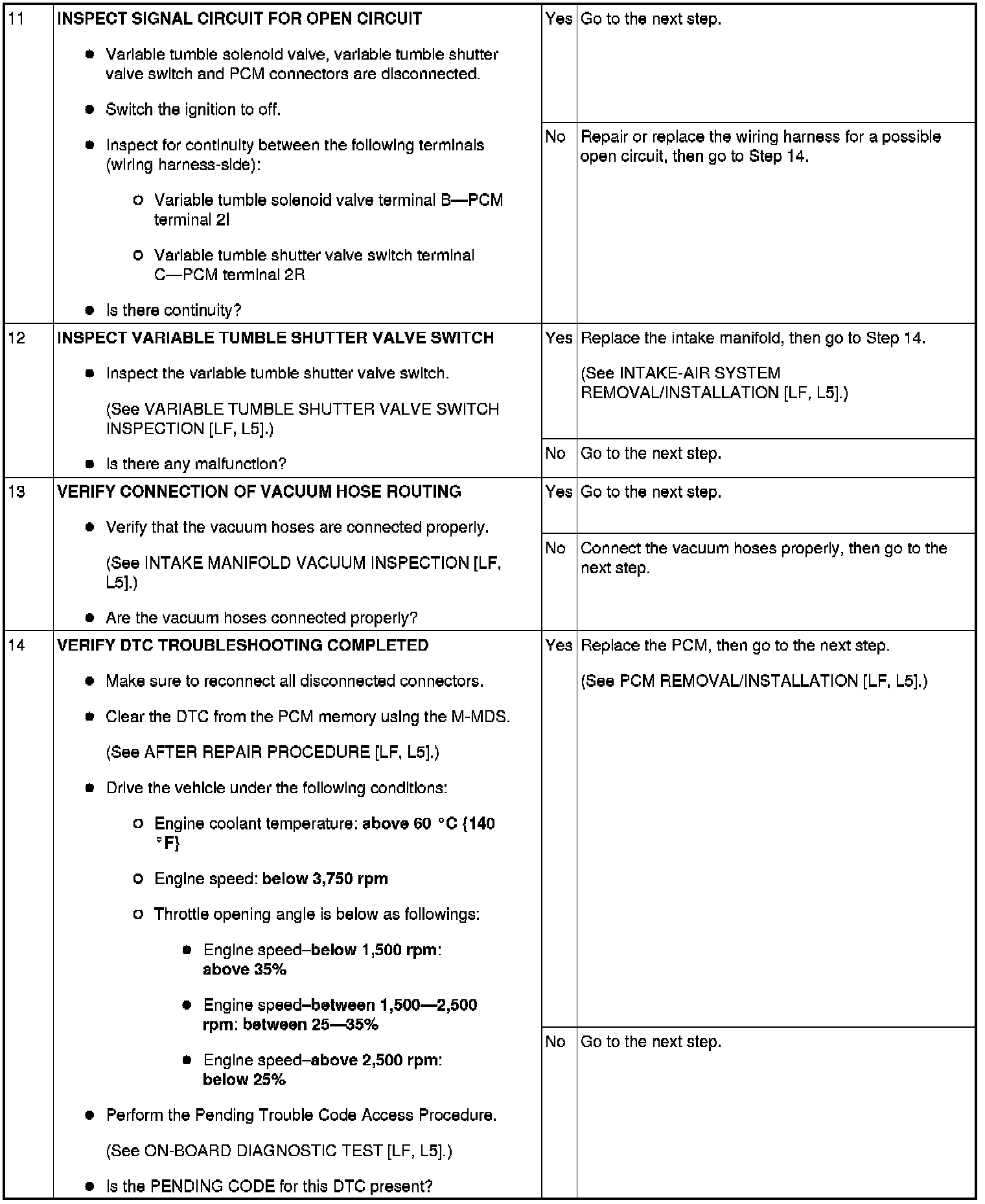

Step 11-Step 14:





Step 15:
