Home >> Mazda >> 2010 >> 3 L4-2.0L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> P Code Charts >> P1260 >> Immobilizer System (Keyless Entry System) >> Security Light 13 >> B10D7:94

B10D7:94

SECURITY LIGHT: 13, DTC: B10D7:94/P1260:00 [IMMOBILIZER SYSTEM (KEYLESS ENTRY SYSTEM)]

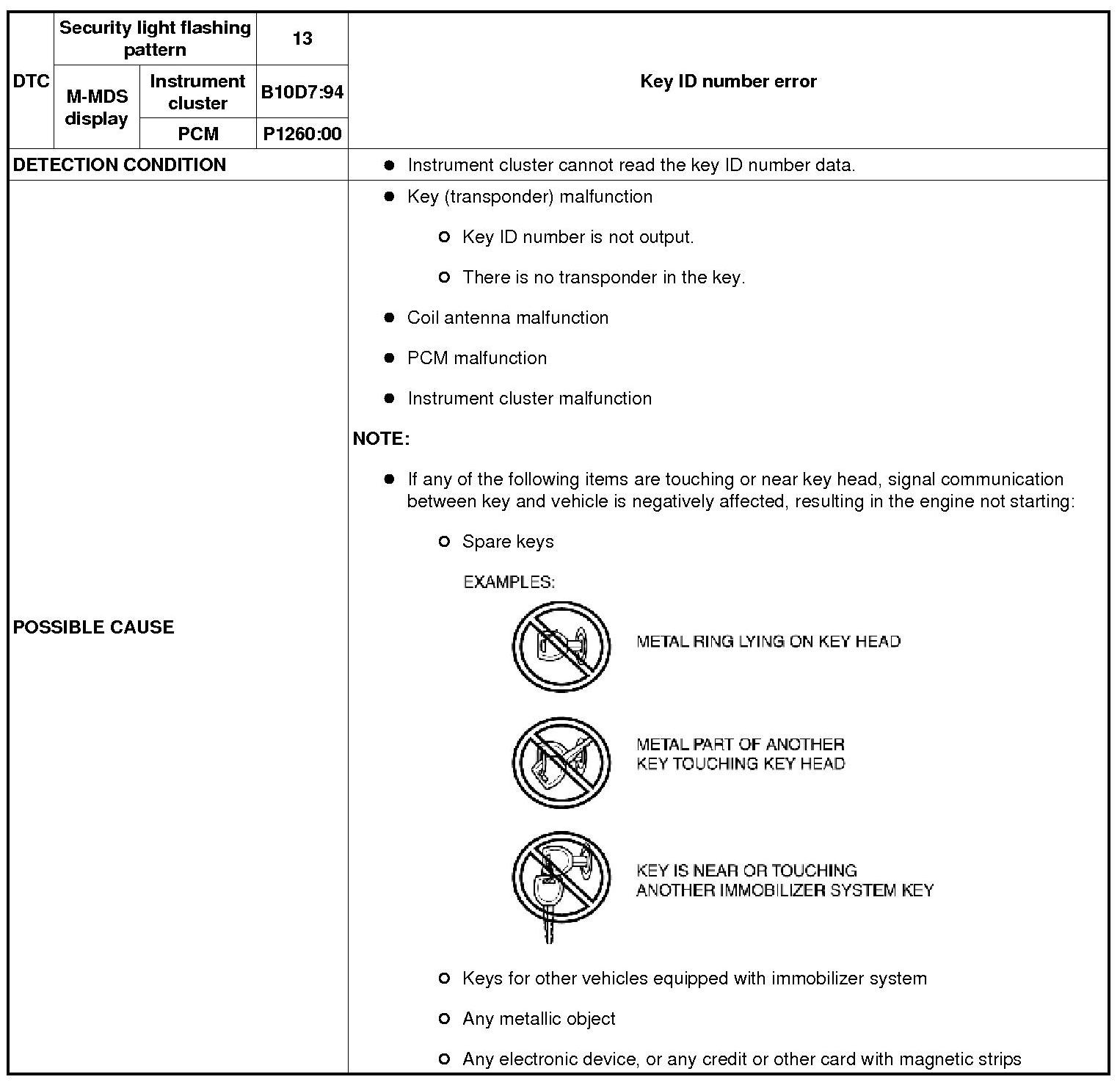

Detection Condition/Possible Cause:

Diagnostic Procedure

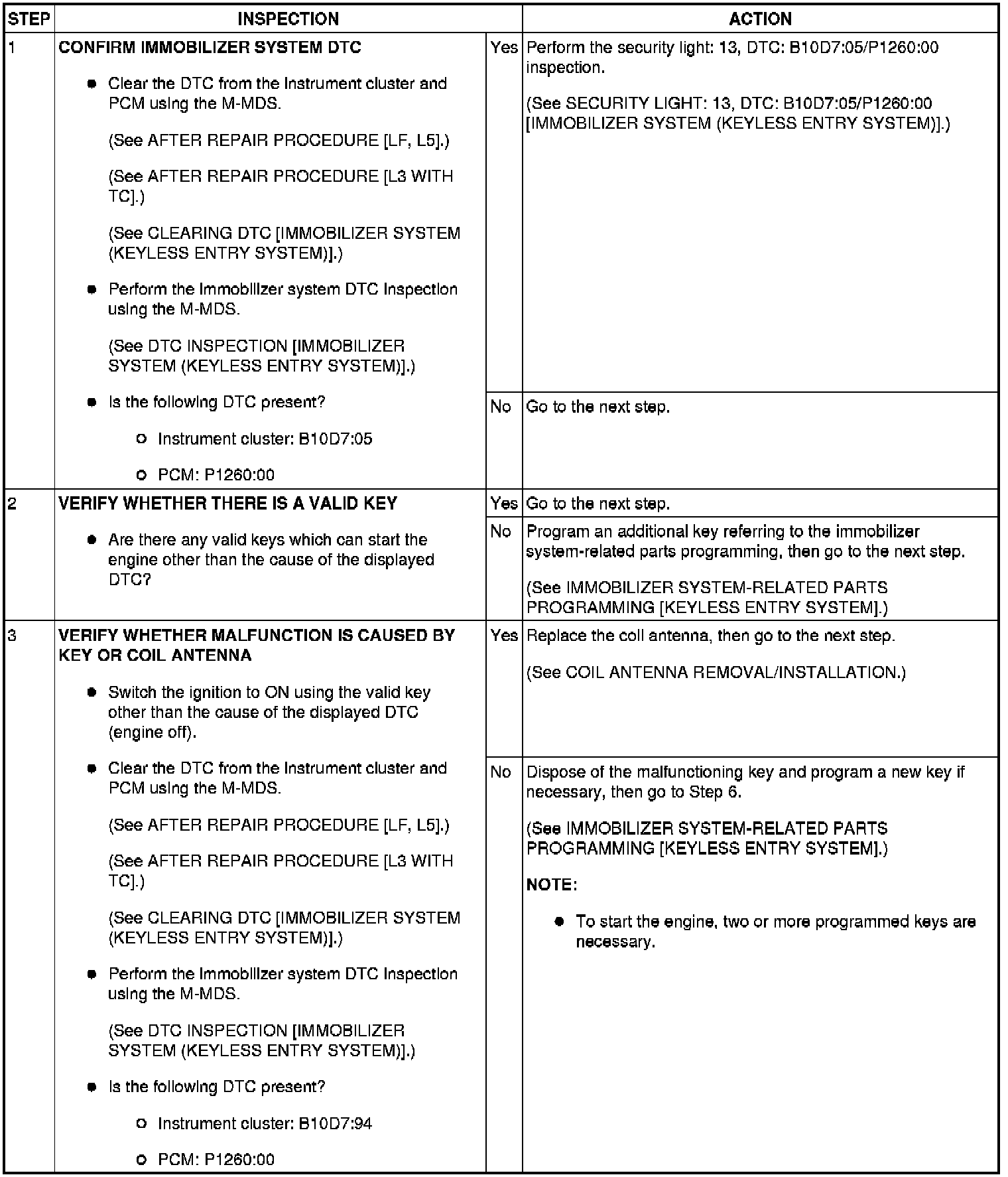

Step 1-Step 3:

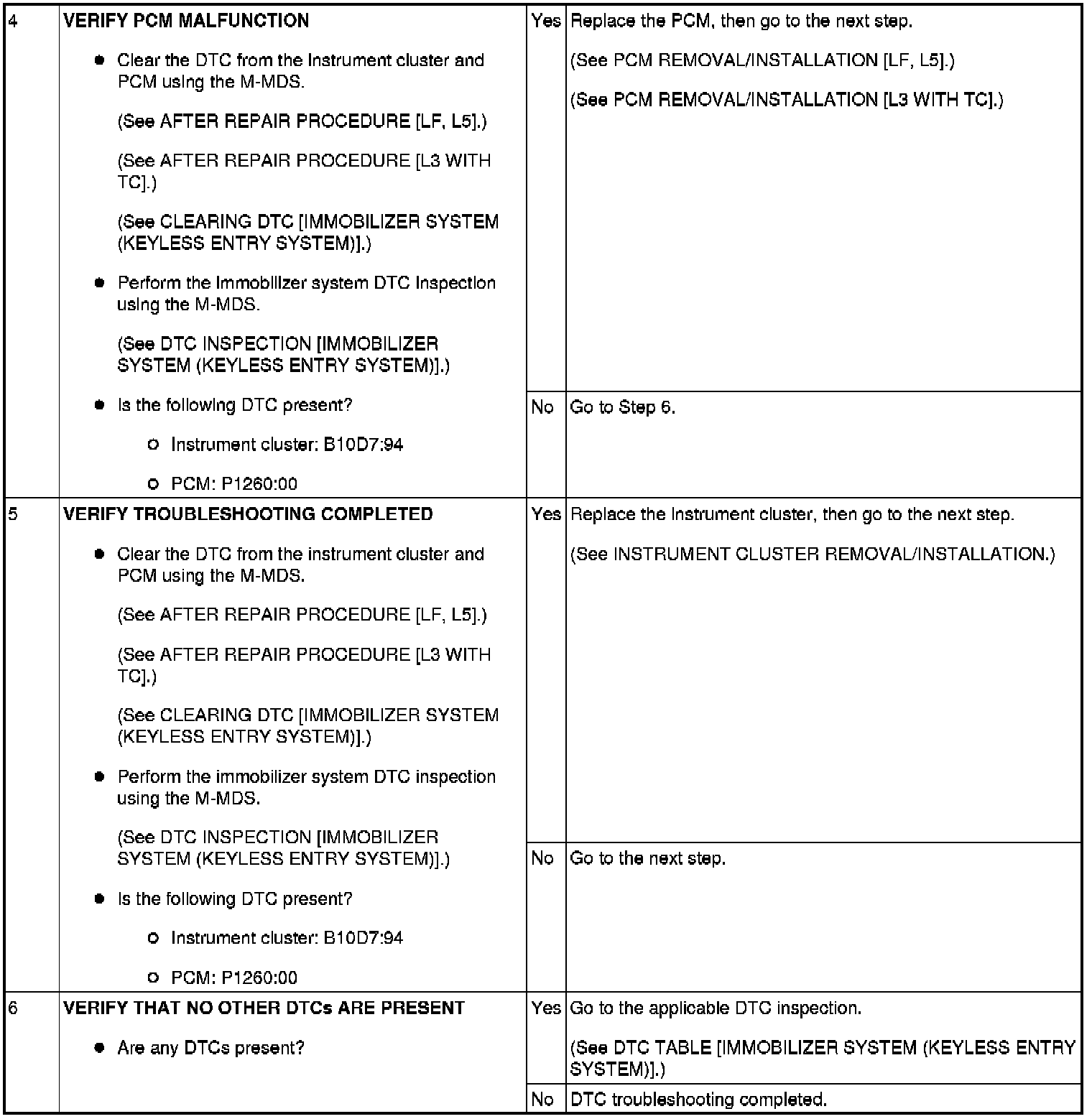

Step 4-Step 6:
