P0480
P0480
DTC P0480:00 [LF, L5]

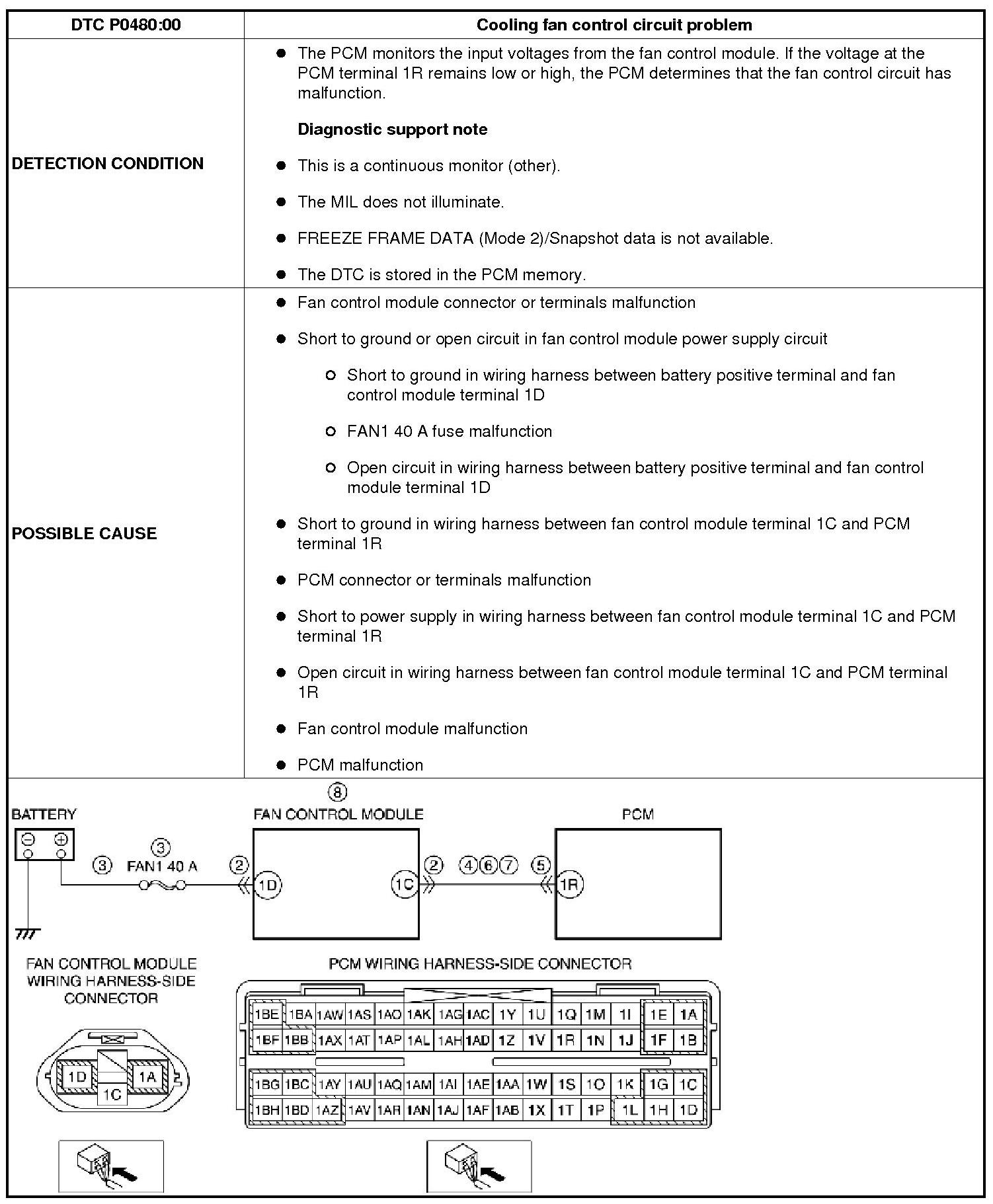

Detection Condition/Possible Cause:
Diagnostic procedure

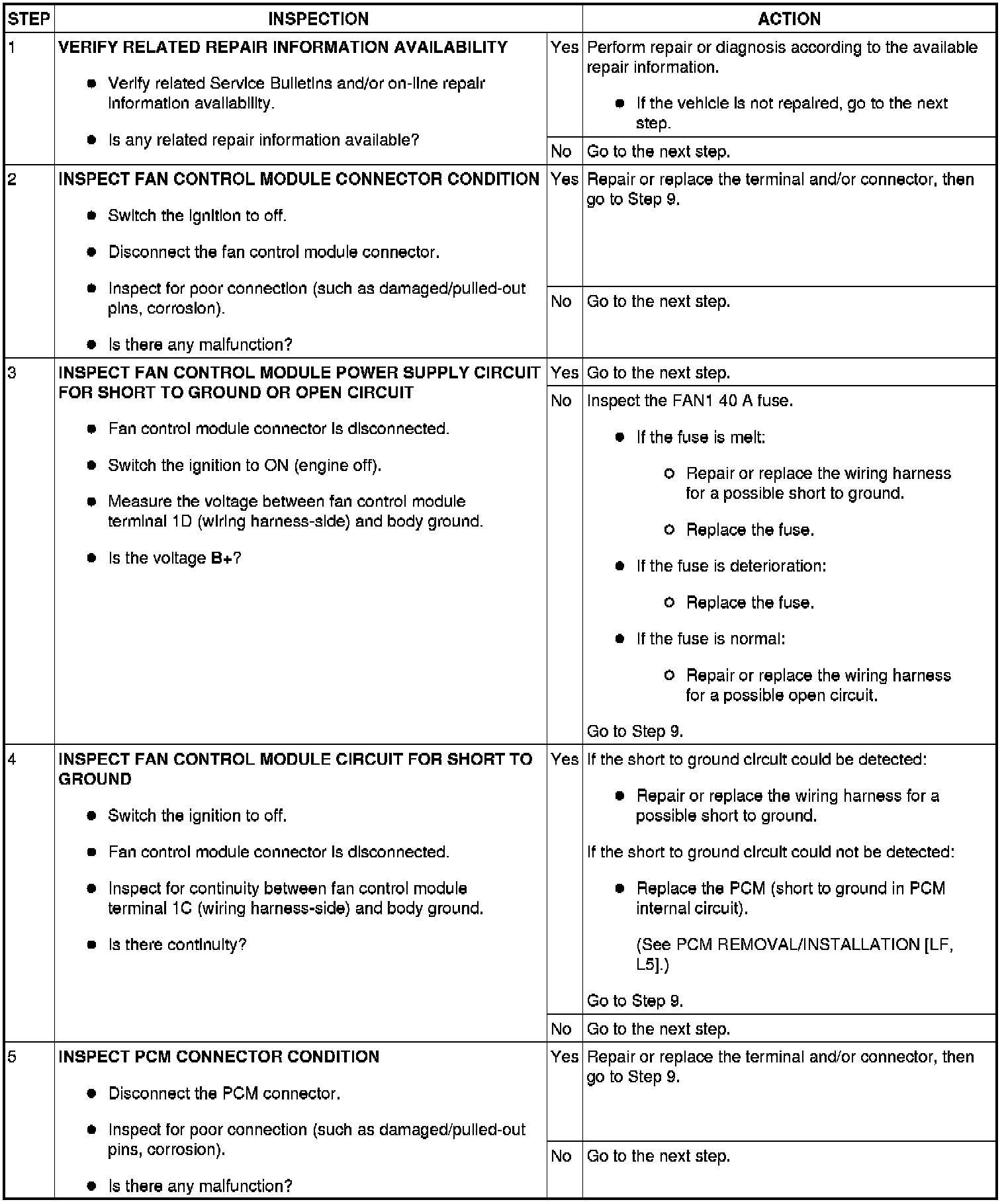

Step 1-Step 5:

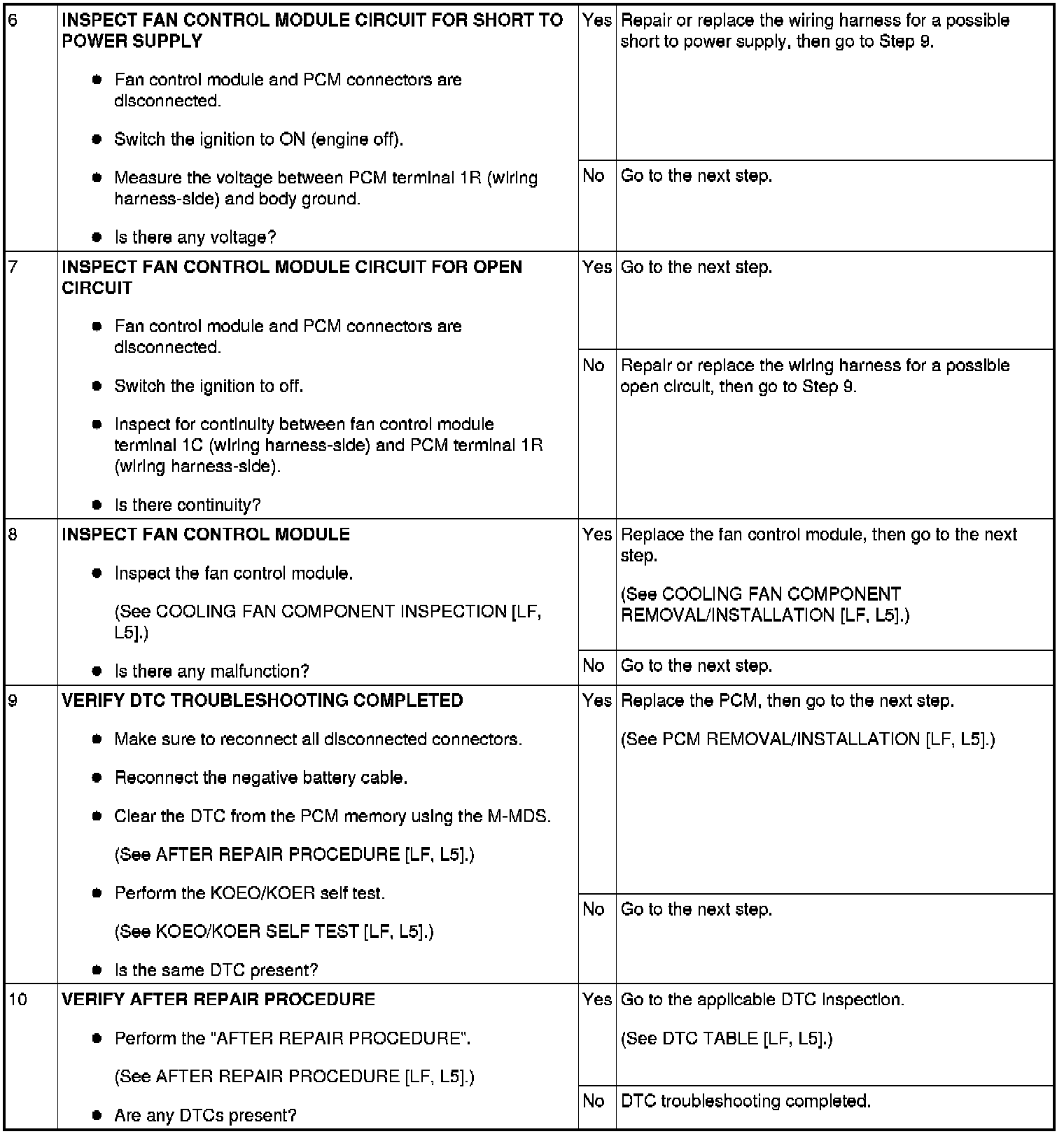

Step 6-Step 10:
