P0054




DTC P0054:00 [LF, L5]

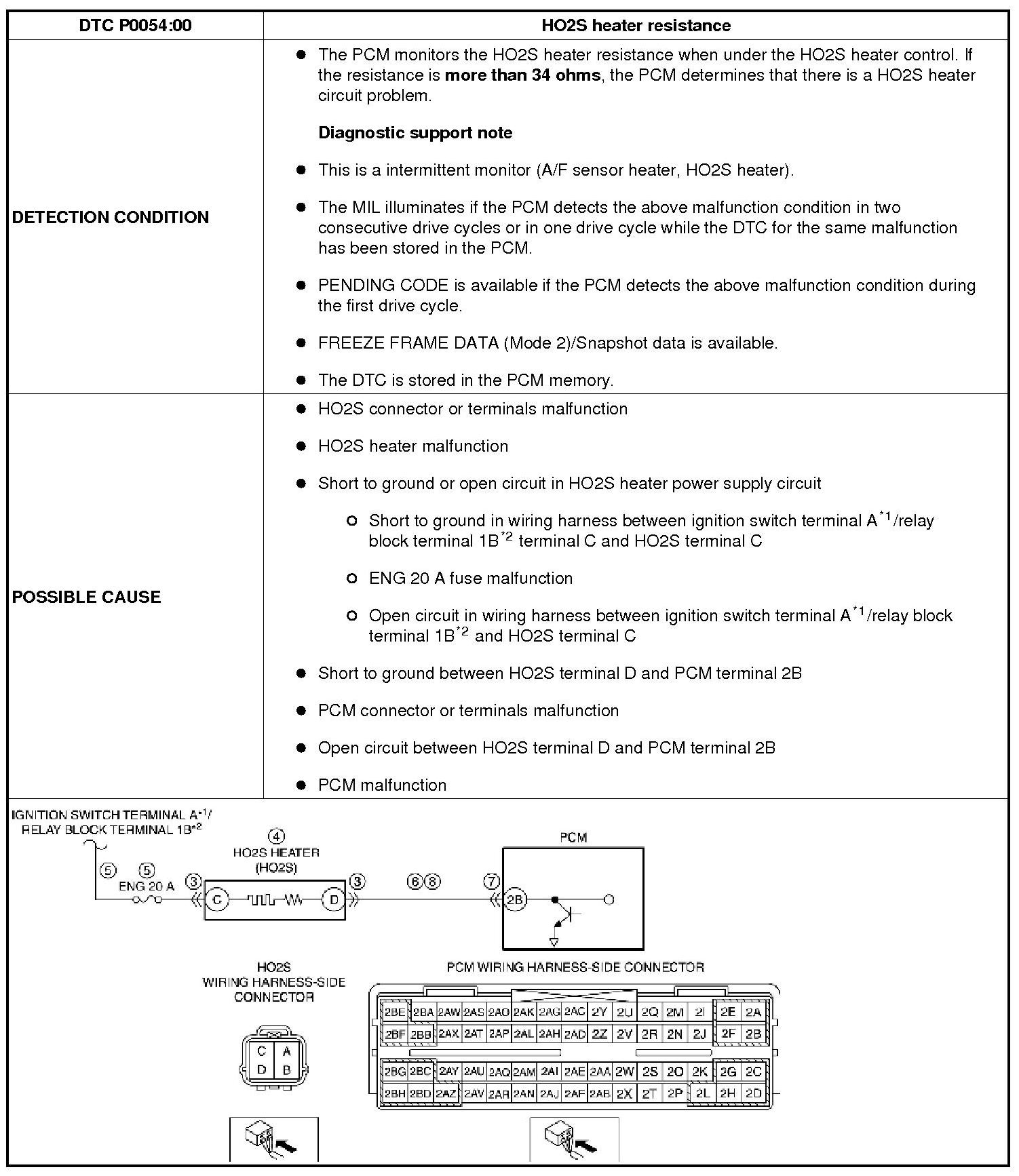

Detection Condition/Possible Cause:





*1
Vehicles with advanced keyless entry and push button start system
*2
Vehicles without advanced keyless entry and push button start system
Diagnostic procedure

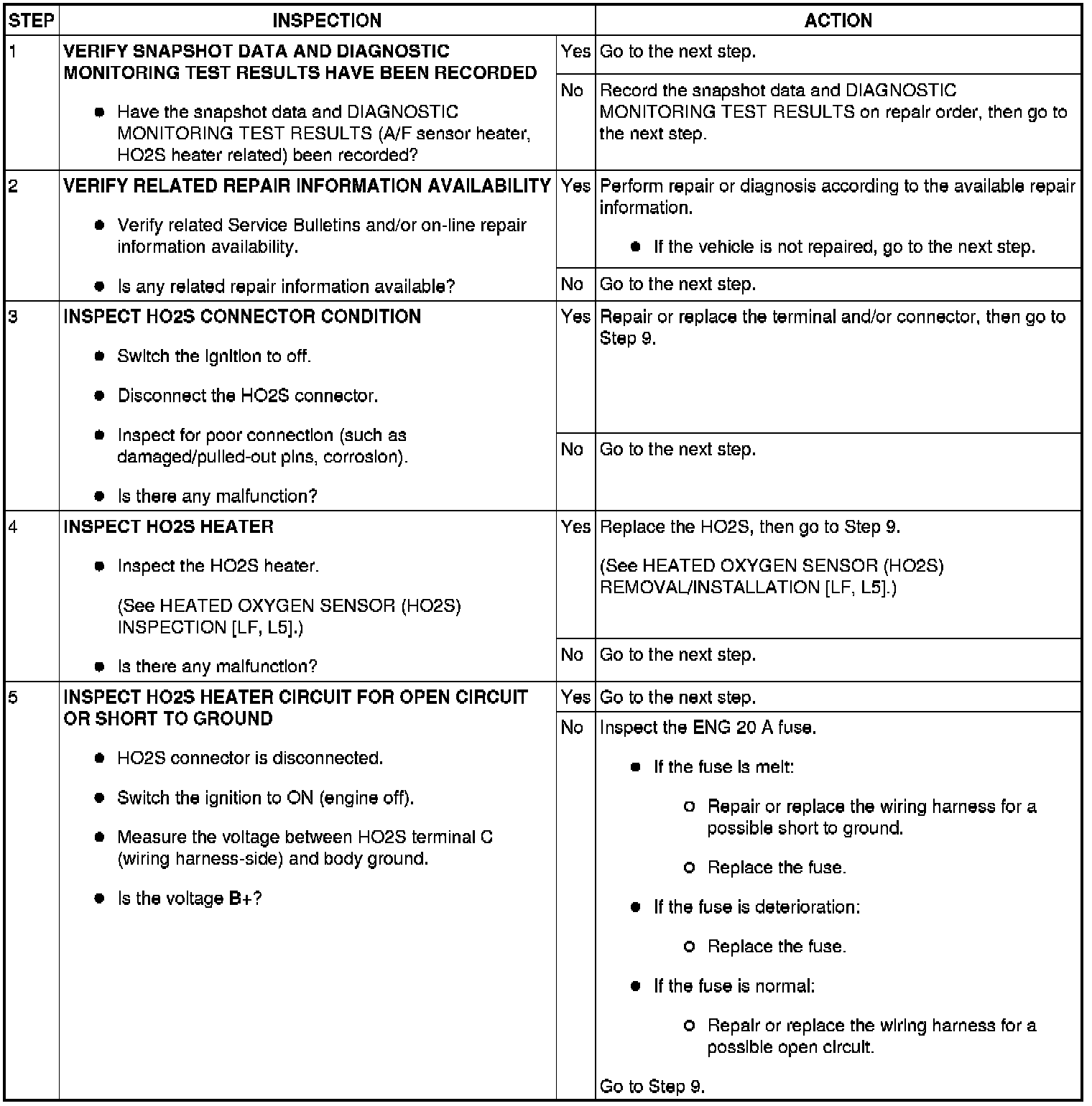

Step 1-Step 5:

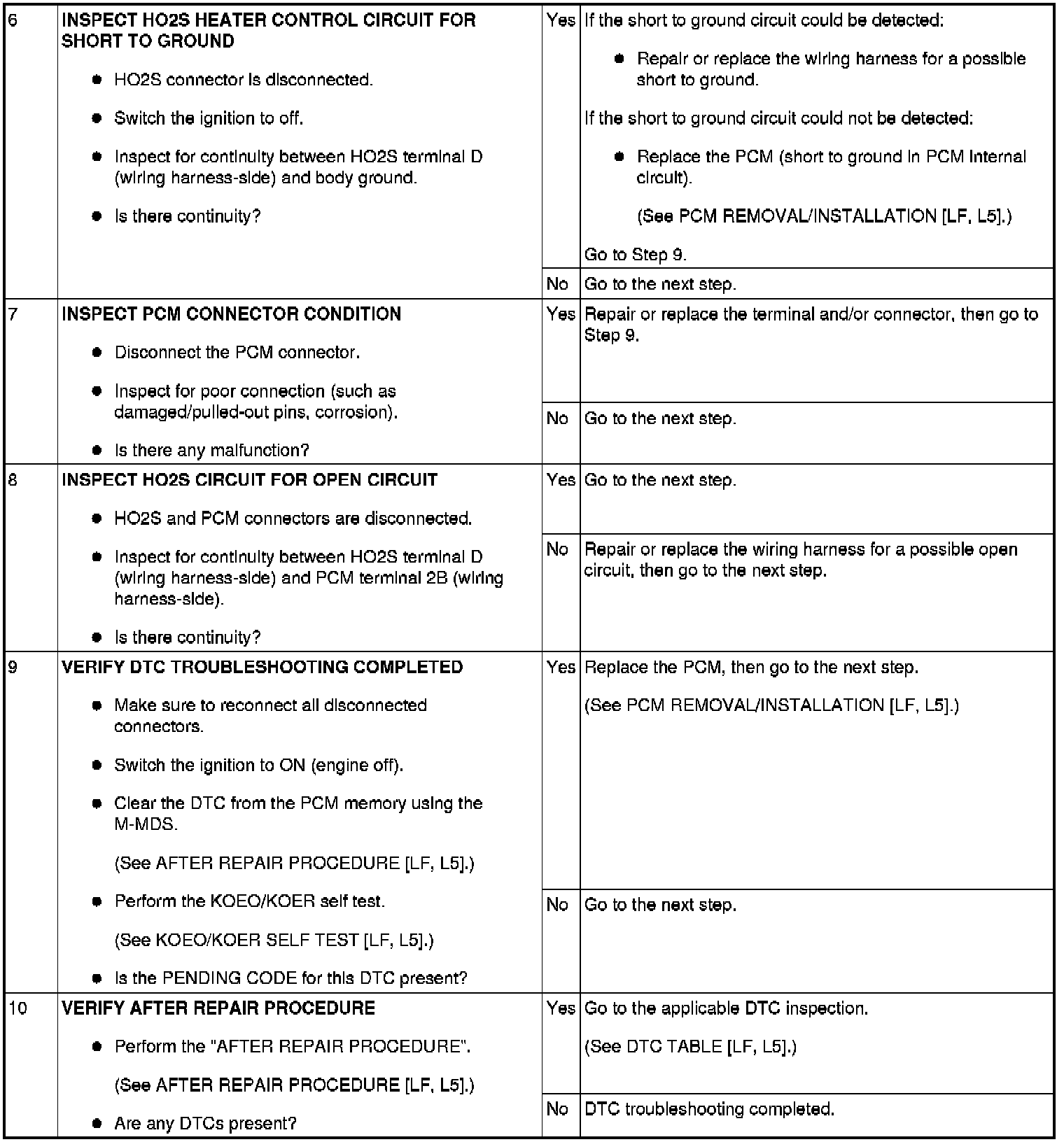

Step 6-Step 10:
