Immobilizer System (Keyless Entry System)




SECURITY LIGHT: 23, DTC: B10DA:62/P1260:00 [IMMOBILIZER SYSTEM (KEYLESS ENTRY SYSTEM)]

Detection Condition/Possible Cause:

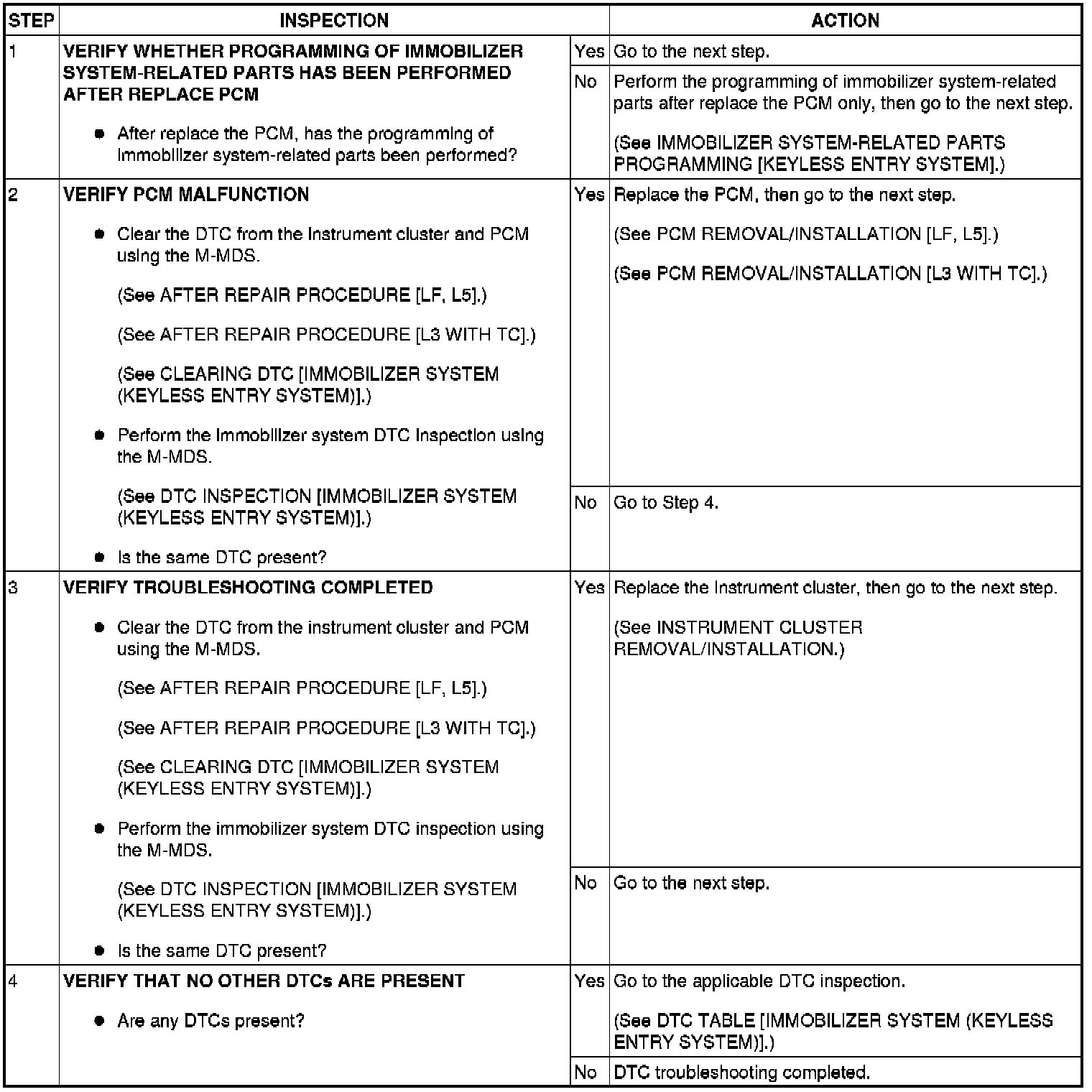

Diagnostic Procedure

Step 1-Step 4:
