B10D7:94




SECURITY LIGHT: 13, DTC: B10D7:94/P1260:00 [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)]

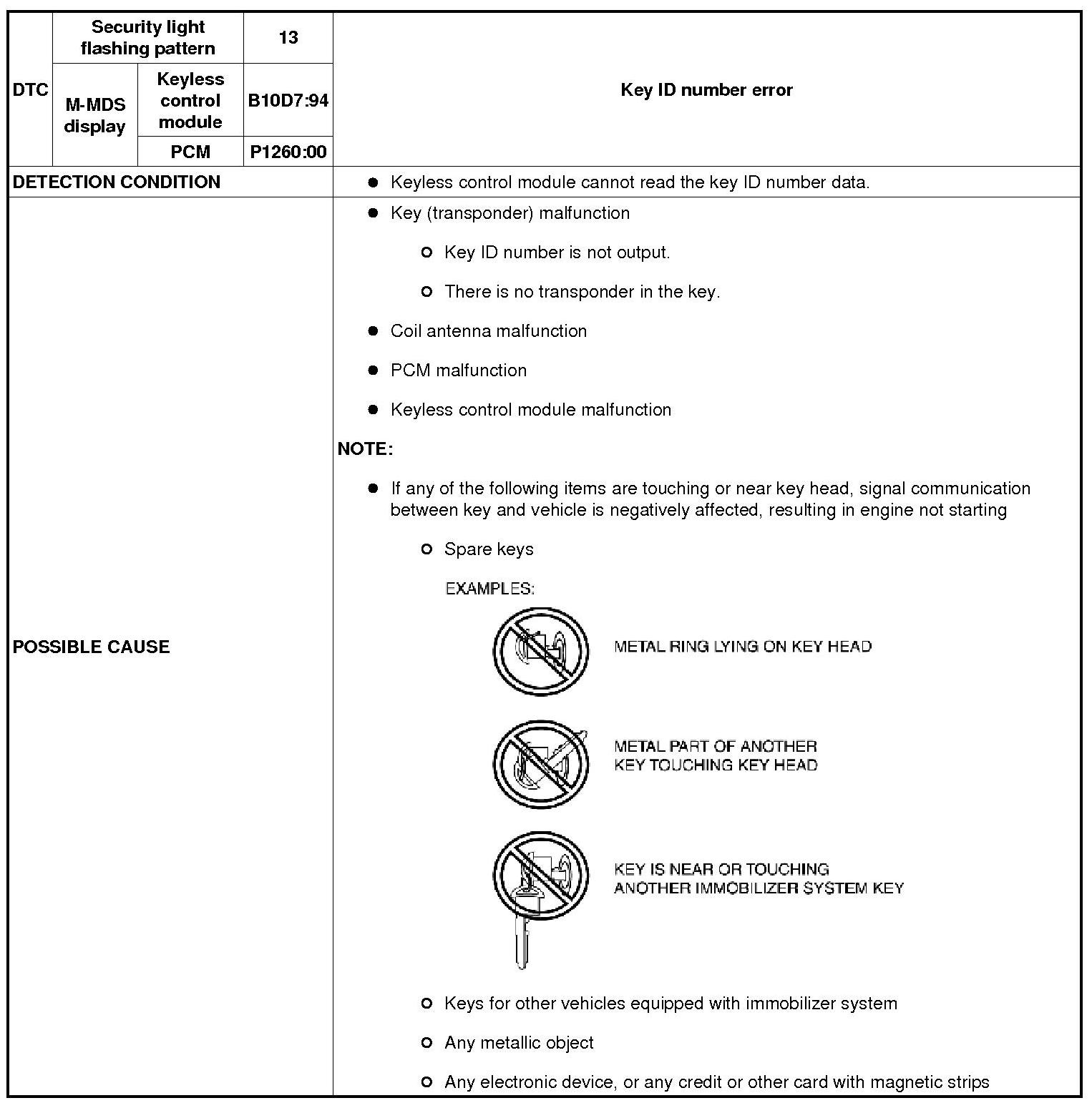

Detection Condition/Possible Cause:





Diagnostic Procedure

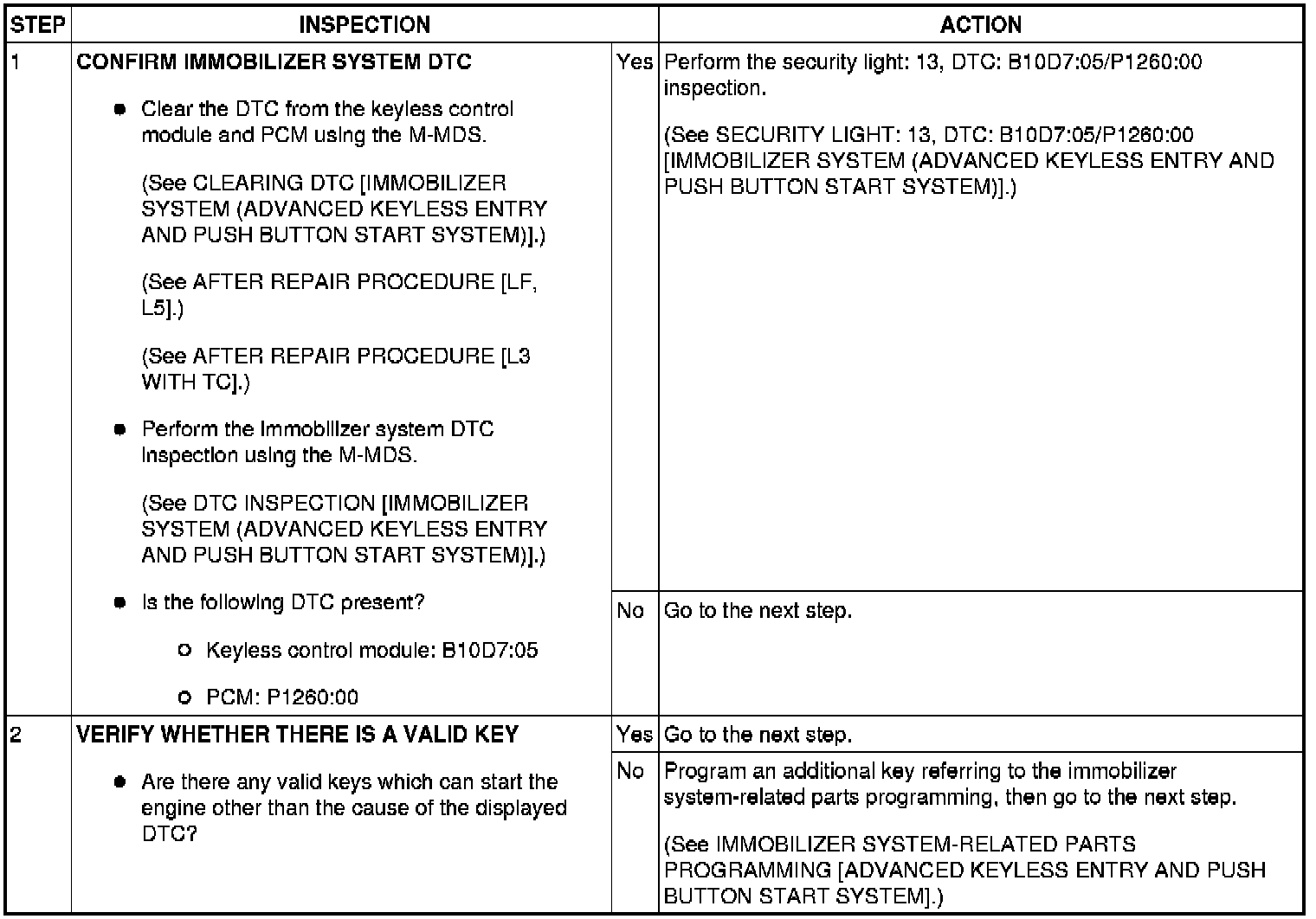

Step 1-Step 2:

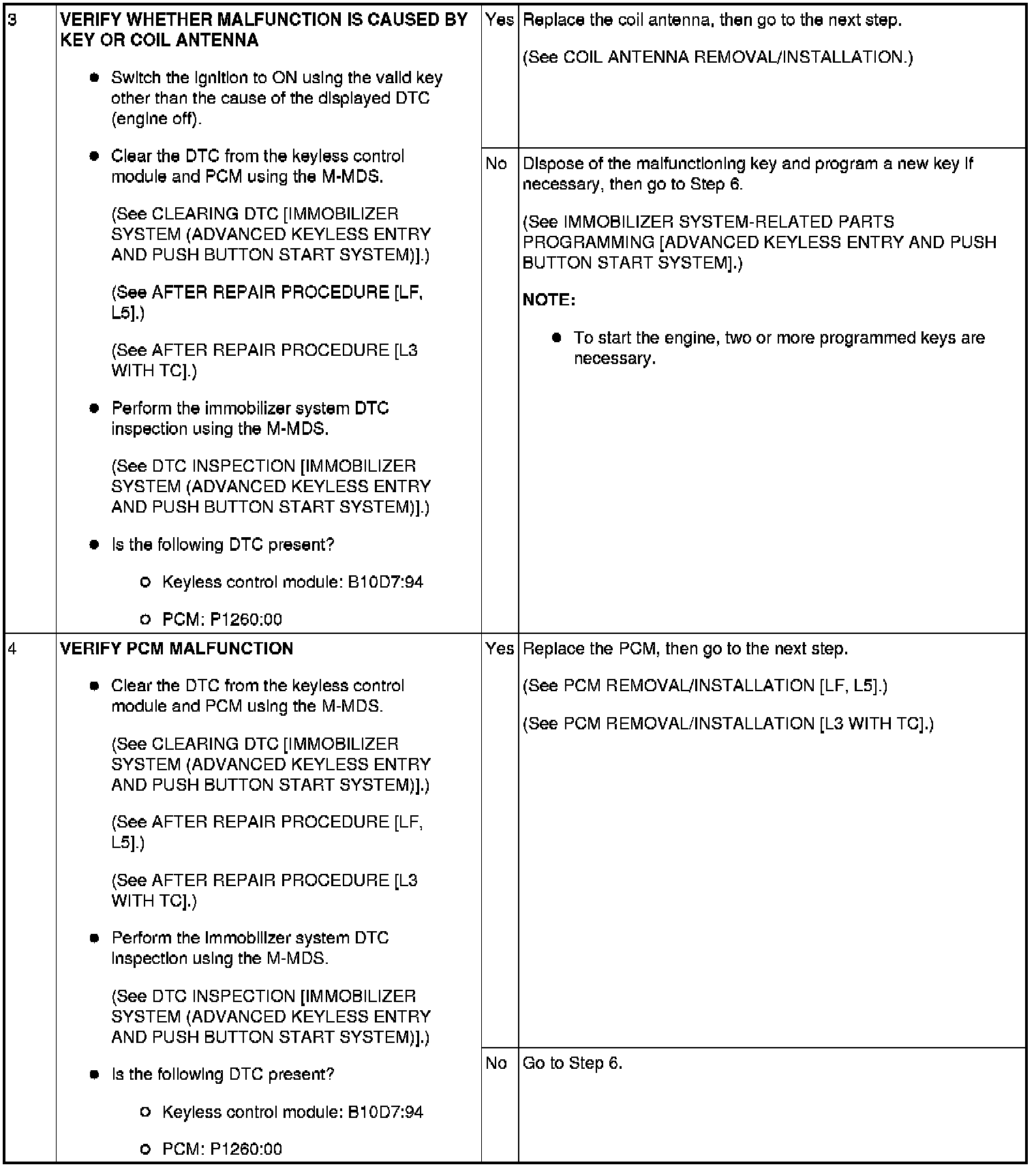

Step 3-Step 4:





Step 5-Step 6:
