Immobilizer System (Keyless Entry System)




SECURITY LIGHT: 11, DTC: B10D9:87/P1260:00 [IMMOBILIZER SYSTEM (KEYLESS ENTRY SYSTEM)]

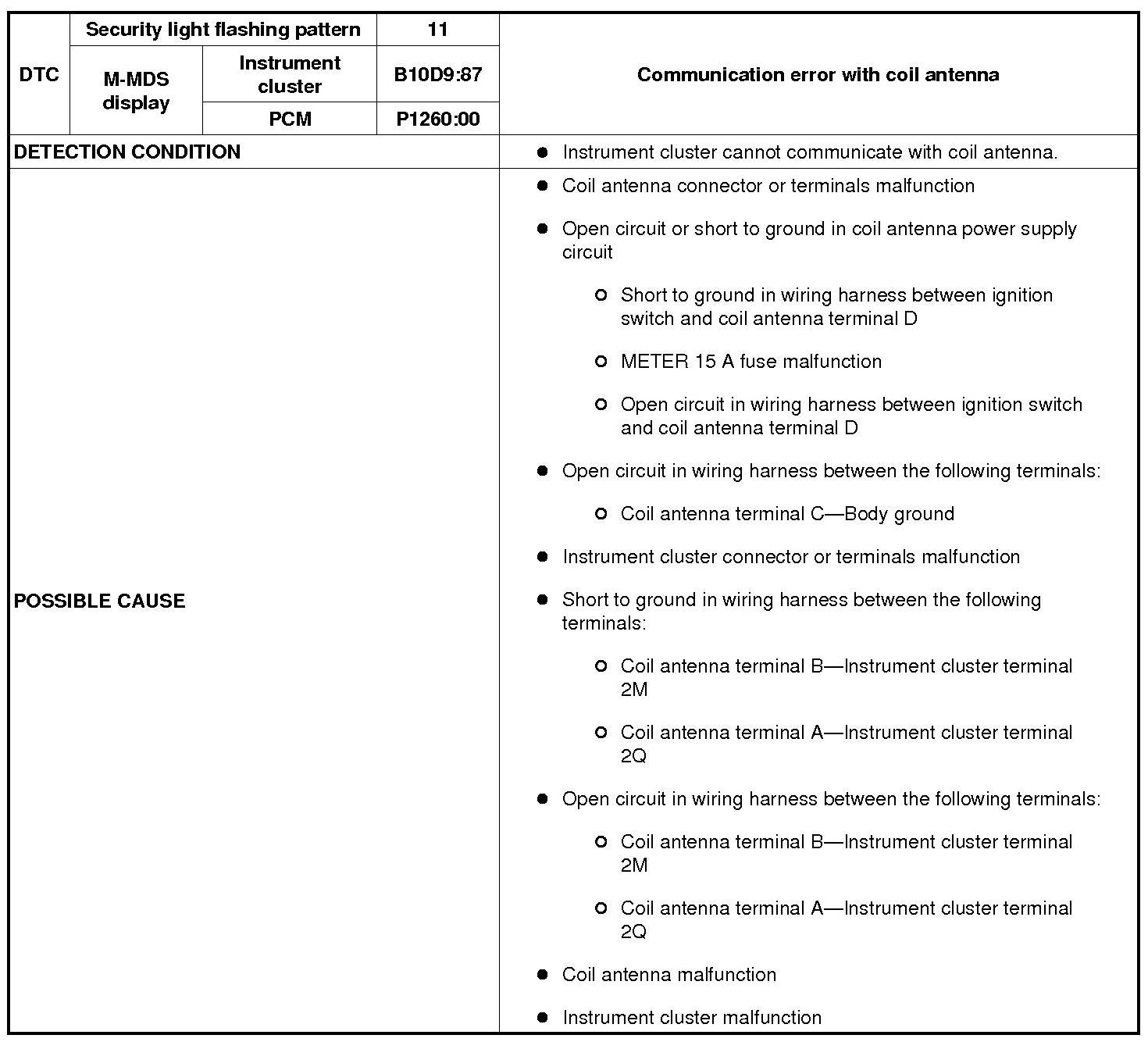

Detection Condition/Possible cause (Part 1):





Detection Condition/Possible cause (Part 2):





Diagnostic Procedure

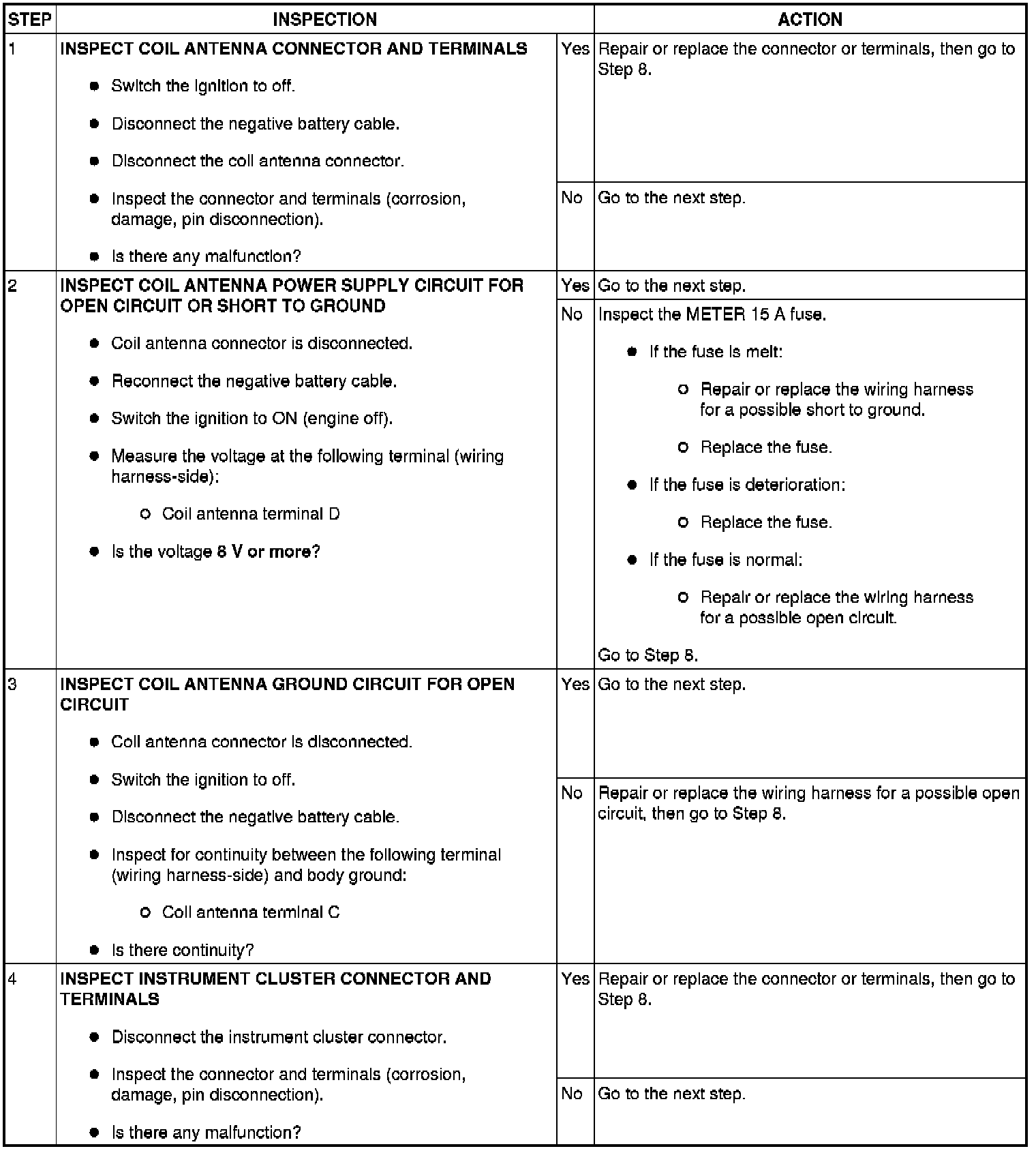

Step 1-Step 4:

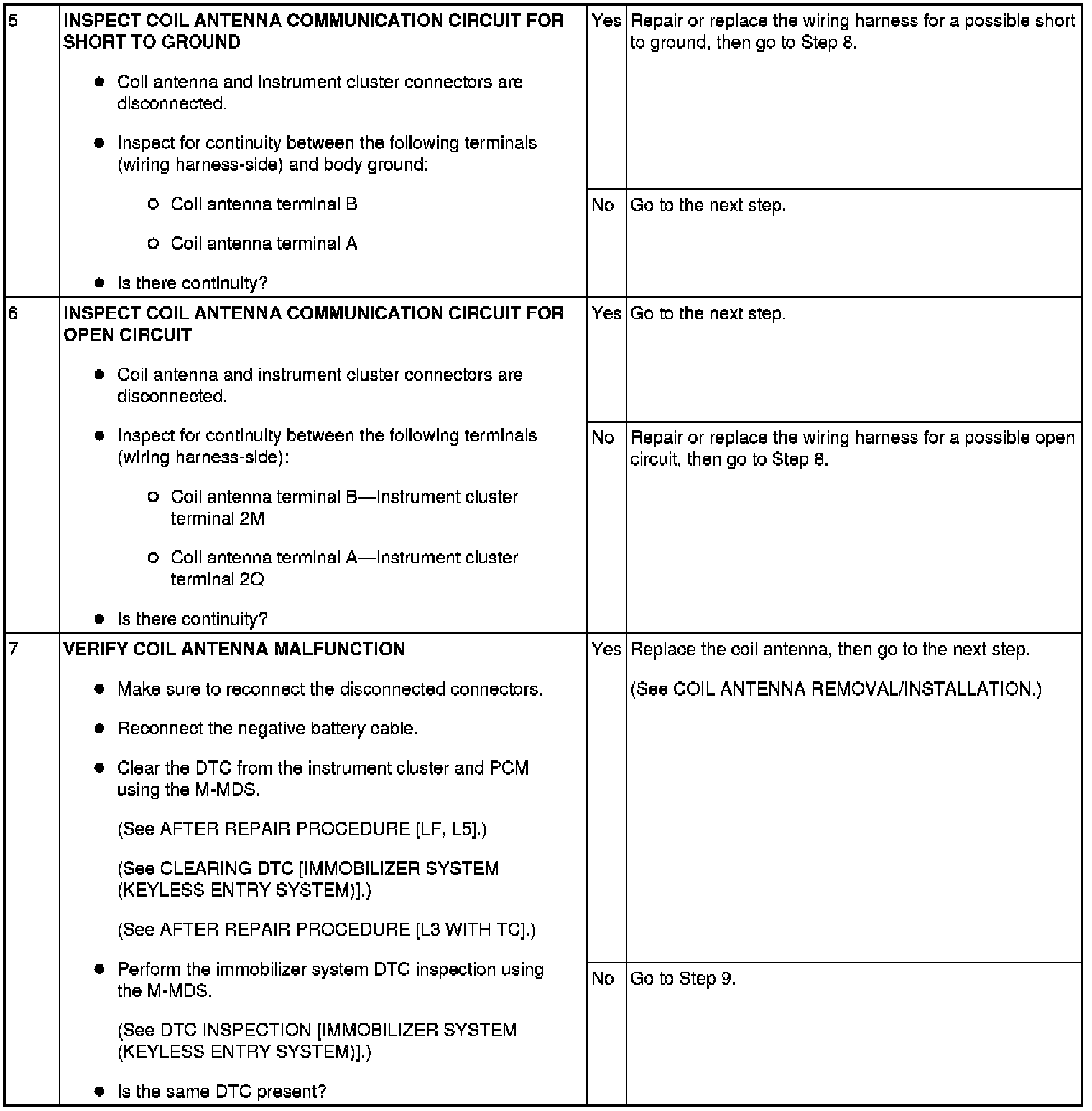

Step 5-Step 7:





Step 8-Step 9:
