Check Code 06




INFORMATION DISPLAY INPUT/OUTPUT CHECK MODE

Check Code Inspection

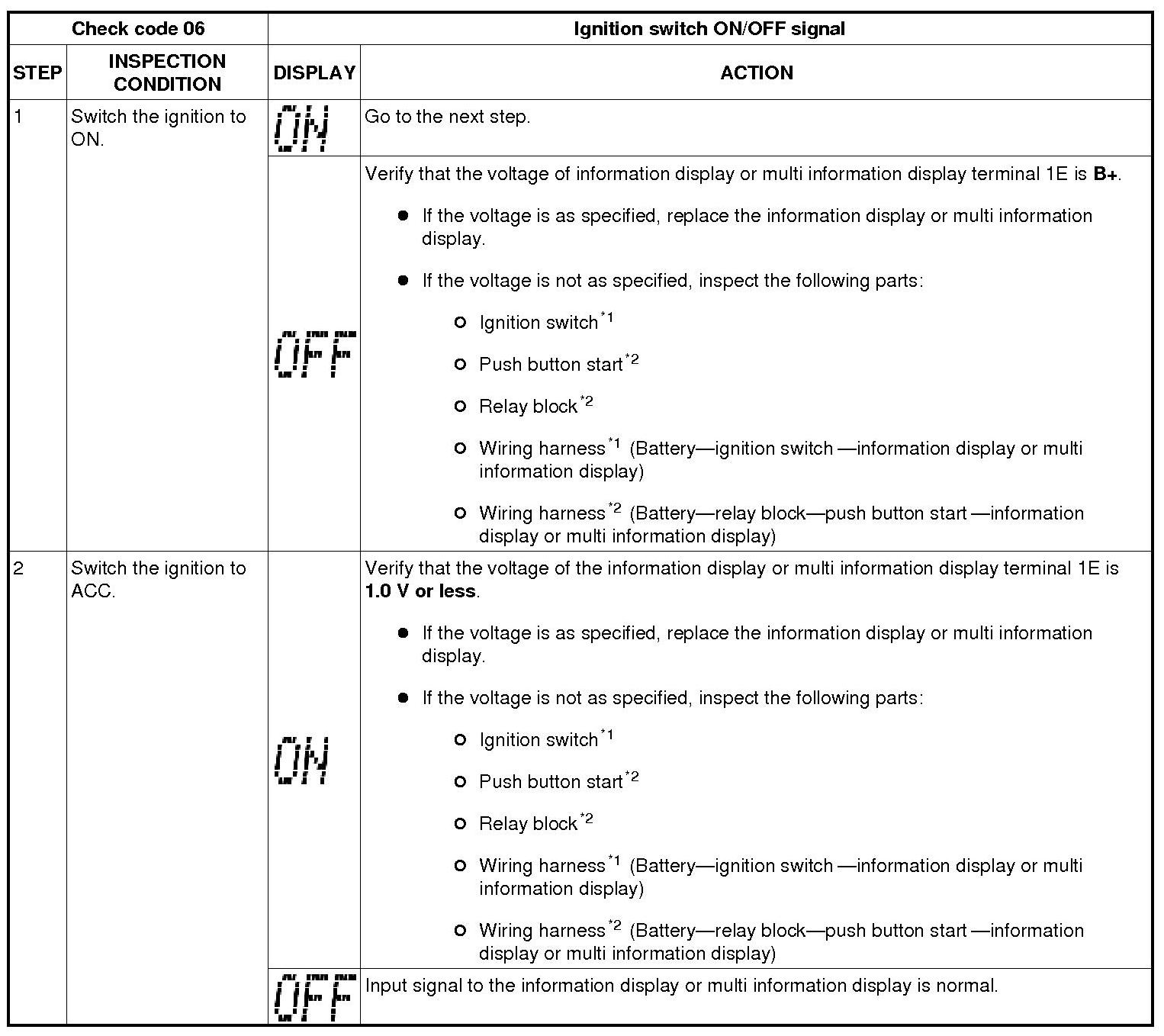

Check code 06

Step 1-Step 2:





*1
Without advanced keyless entry and push button start system
*2
With advanced keyless entry and push button start system
