DTC Table [Multiplex Communication System]

DTC TABLE [MULTIPLEX COMMUNICATION SYSTEM]

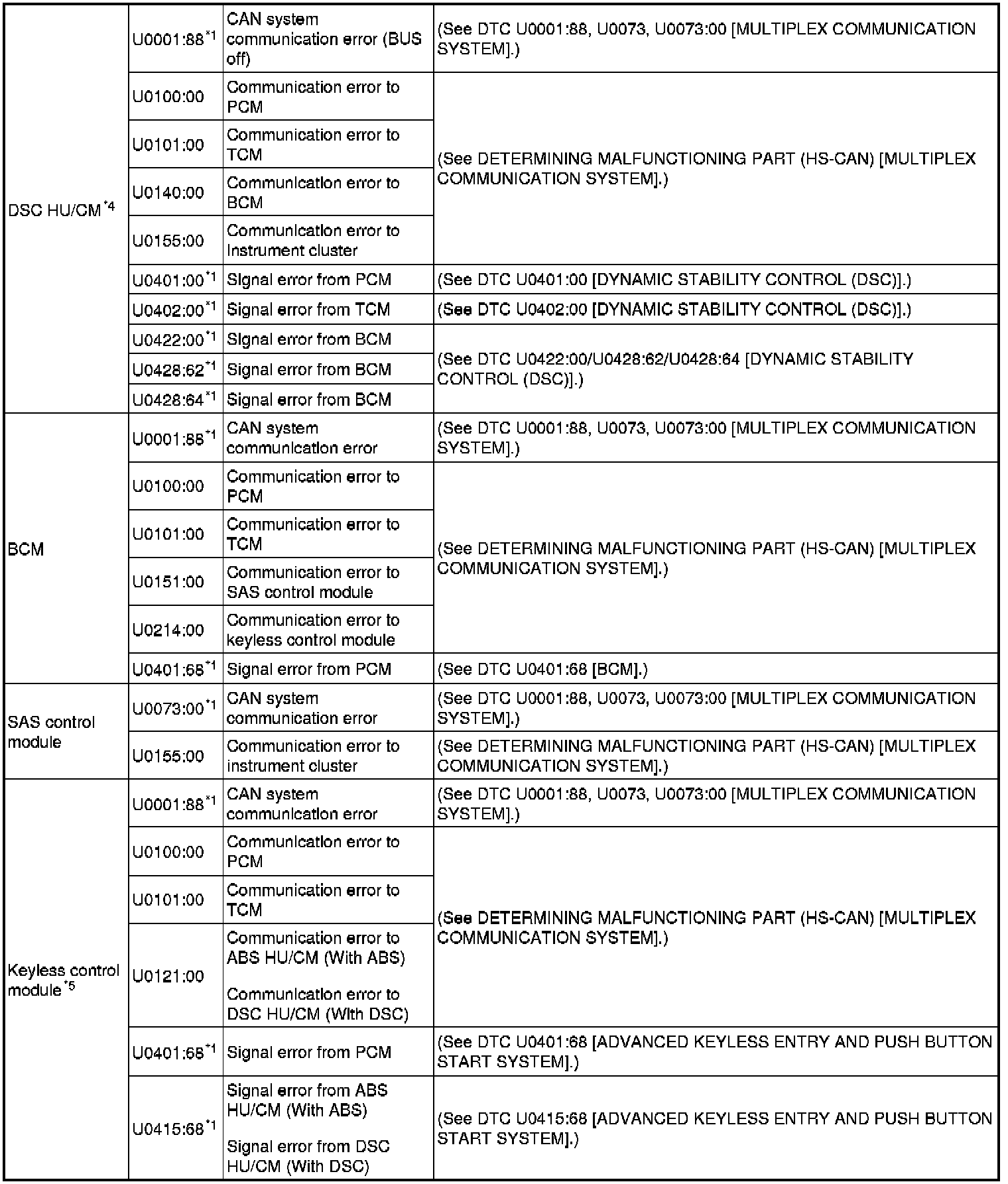

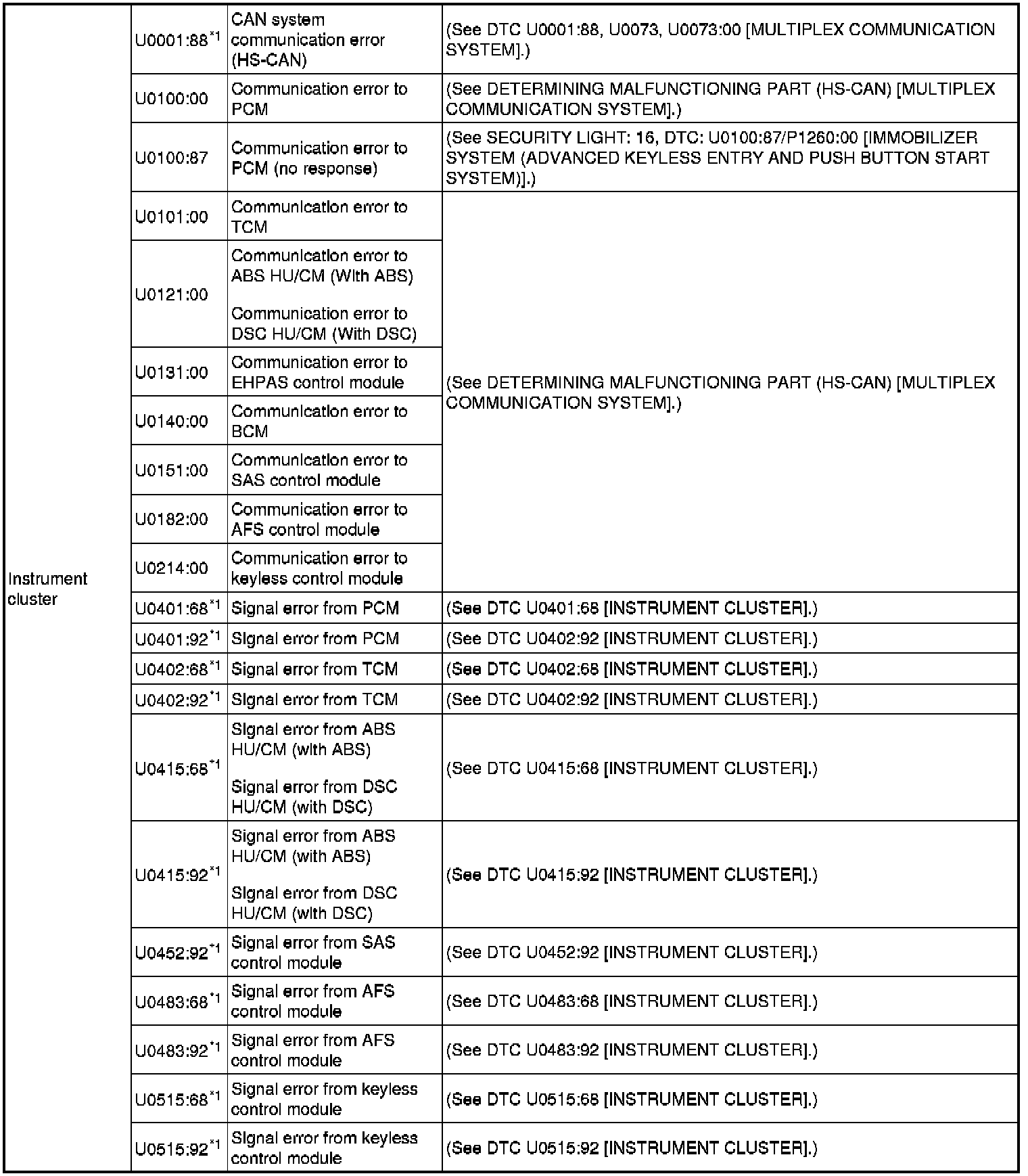

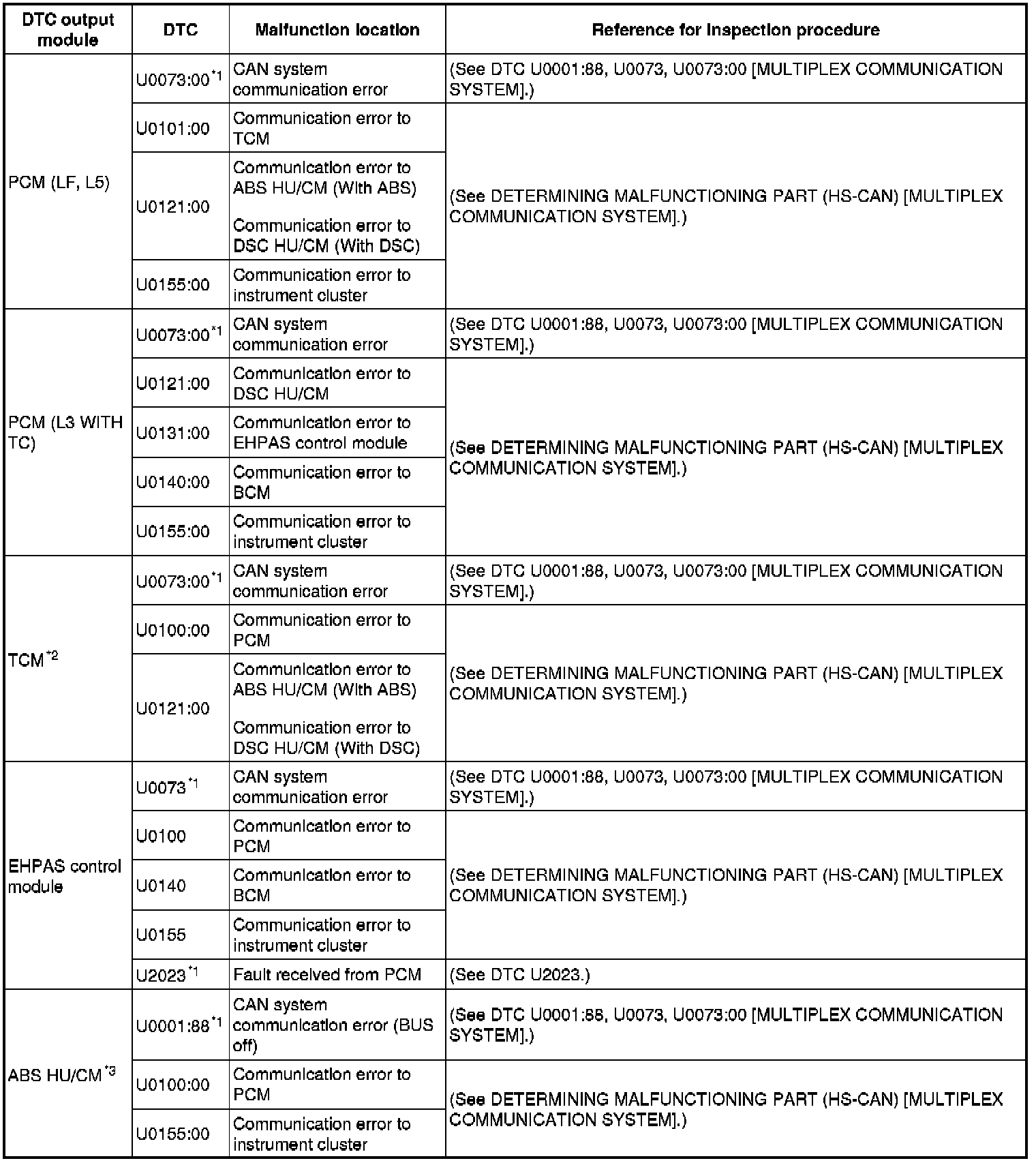

HS-CAN

U0073:00-U2023:

U0001:88-U0428:64:

U0001:88-U0422:00:

U0001:88-U0515:92:

*1
If only the target DTCs are displayed, perform the corresponding DTC inspection without determining the open circuit location.
*2
ATX
*3
with ABS
*4
with DSC
*5
with advanced keyless entry and push button start system
*6
with AFS (adaptive front lighting system)

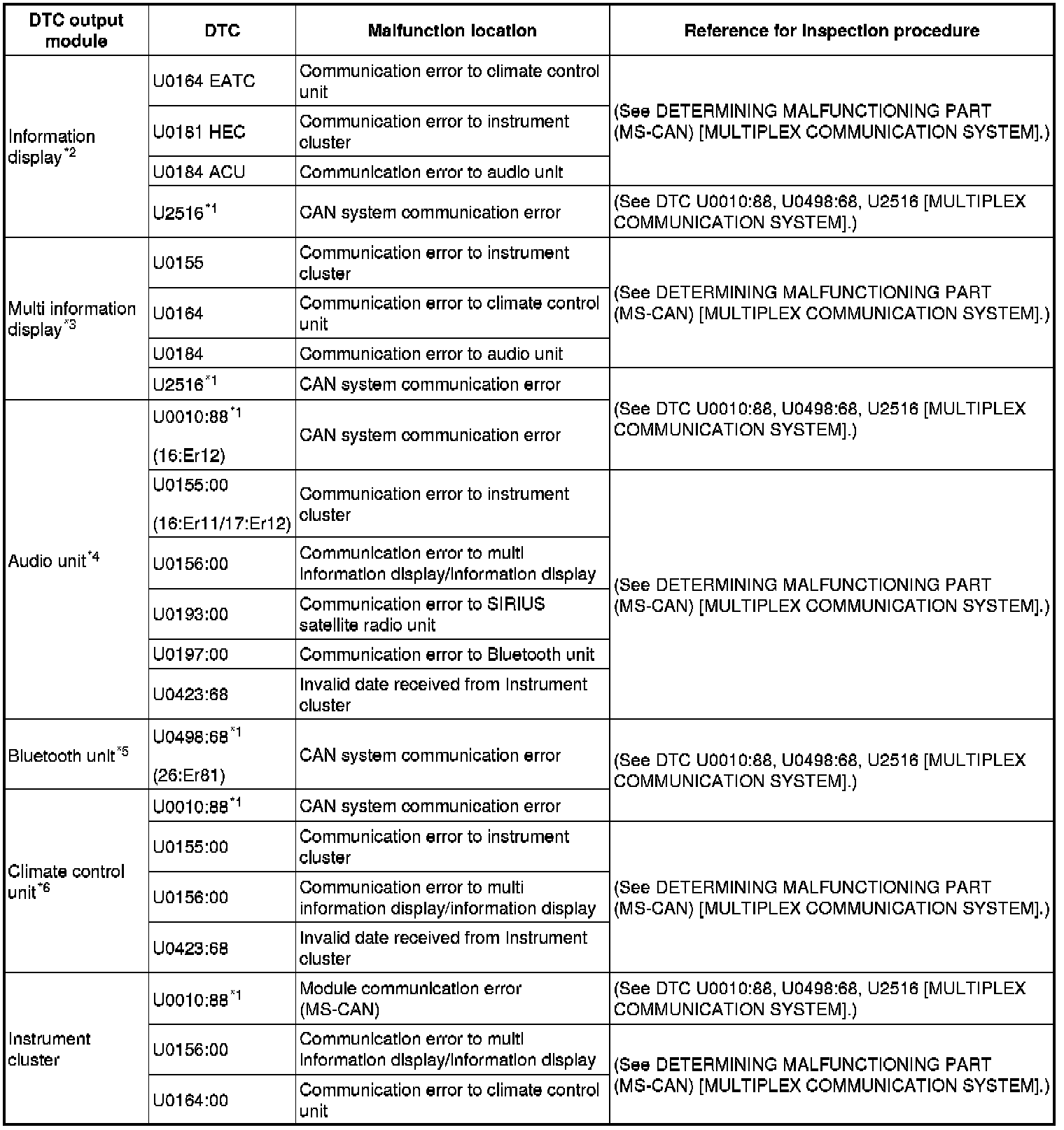

MS-CAN

*1
If only the target DTCs are displayed, perform the corresponding DTC inspection without determining the open circuit location.
*2
Without maintenance monitor
*3
With maintenance monitor
*4
With audio system
*5
With Bluetooth system (HF/TEL system)
*6
With full-auto air conditioner
